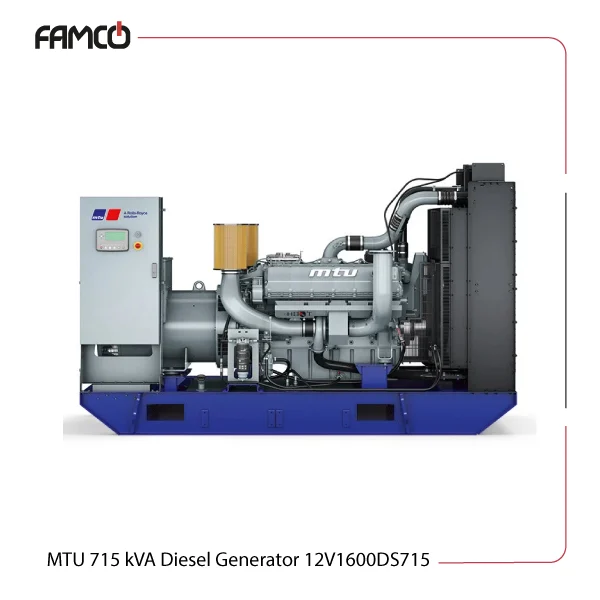

MTU 715 kVA Diesel Generator Set 12V1600DS715 Specifications
This heavy-duty generator features a 4-cycle engine with a displacement of 21 liters and a rated speed of 1500 rpm. It operates on a 12V arrangement and is equipped with a Leroy Somer brand generator, known for reliability. The genset unit’s substantial fuel tank capacity of 470 liters supports long operation with fuel consumption rates of 146.7 liters per hour at full load, 110 liters at 75%, and 76.4 liters at 50%. This MTU genset includes a total oil capacity of 72.5 liters and a coolant capacity of 99 liters, ensuring proper maintenance and cooling during extended use. The generator’s insulation class is H, providing high thermal endurance, and it has an IP23 enclosure for protection against dust and water splashes.
The voltage output of this MTU diesel generator set ranges from 380 to 415 volts, suitable for industrial applications. Dimensions vary depending on the configuration, with the open power unit measuring 3,360 x 1,645 x 2,230 mm and weighing 5340 kg. Enclosed units (with or without a tail pipe) are larger and heavier, with dimensions up to 5,400 x 2,140 x 2,760 mm and weights exceeding 8,100 kg. Noise levels are kept relatively low for such power, with open units producing 109 dB(A) at 1 meter and enclosed units emitting 77 dB(A) at 7 meters. All in all, this forceful dg set has the advantage of being placed in close approximation to noise-sensitive places.
| Specification | Value |
| Standby Power (kVA) | 715 |
| Engine Type | 4-cycle |
| Arrangement | 12V |
| Displacement (l) | 21 |
| Rated Speed (rpm) | 1500 |
| Fuel Tank Capacity (l) | 470 |
| Fuel Consumption at 100% Power (l/h) | 146.7 |
| Fuel Consumption at 75% Power (l/h) | 110 |
| Fuel Consumption at 50% Power (l/h) | 76.4 |
| Total Oil Capacity (l) | 72.5 |
| Total Coolant Capacity (l) | 99 |
| Generator Brand | Leroy Somer |
| Insulation Class | H-class |
| Enclosure | IP23 |
| Voltage (V) | 380-415 |
MTU 715 kVA Diesel Generator Set 12V1600DS715 Dimensions and Weight
| System | Dimensions (LxWxH) | Weight (wet/with standard accessories) |
| Open power unit (OPU) | 3360 x 1645 x 2230 mm | 5340 kg |

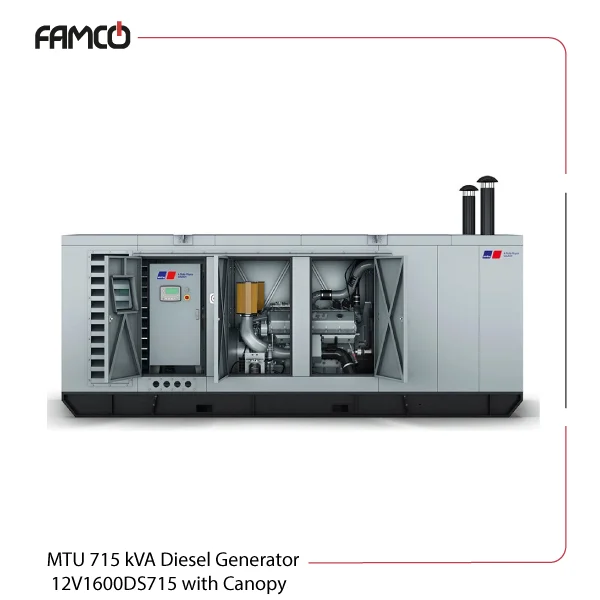

| Enclosed power unit (EPU) without tail pipe | 5400 x 2140 x 2175 mm | 8125 kg |
| Enclosed power unit (EPU) with tail pipe | 5400 x 2140 x 2760 mm | 8155 kg |
MTU 715 kVA Diesel Generator Set 12V1600DS715 Sound Data
| Sound Data at 75% Prime Load | Open Power Unit (dB(A) at 1m) | 109 |
| Enclosed Power Unit (dB(A) at 7m) | 77 |
MTU 715 kVA Diesel Generator Set 12V1600DS715 Applications
- Industrial power supply for factories
- Emergency backup for large facilities
- Construction site power source
- Critical infrastructure support
MTU 715 kVA Diesel Generator Set 12V1600DS715 Benefits
- High power capacity of 715 kVA for demanding needs
- Long operational hours thanks to a large fuel tank
- Durable design with high insulation and protection
- Flexible configurations for various environments
MTU 715 kVA Diesel Generator Set 12V1600DS715 Price List
| No. | Name | Price |
| 1 | MTU 715 kVA Diesel Generator Set 12V1600DS715 Price | Contact us |
