MTU 650 kVA Diesel Generator Set 12V1600DS650 Specifications
This generator features a 4-cycle engine with a displacement of 21 liters, designed for reliable power output. It operates at a rated speed of 1500 rpm and is equipped with a 12V arrangement. This dg set holds up to 470 liters of fuel, which reduces the need for constant refills. It also supports long operation times with fuel consumption rates of 133.2 at full load, 102.5 at 75%, and 71.5 at 50%. This MTU diesel generator uses high-quality Leroy Somer components and has an insulation class of H.

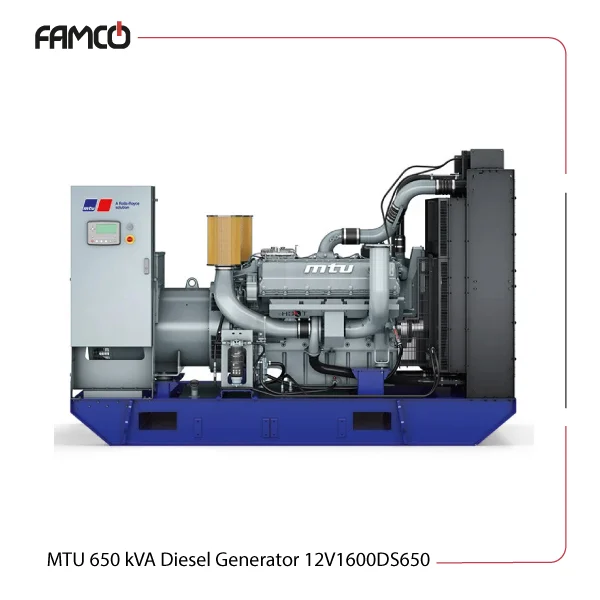

This MTU genset is available in different configurations. The open power unit measures 3360 x 1645 x 2230 mm and weighs 5340 kg. To see this MTU dg set’s enclosed dimensions and weight, see the table below. The enclosure has an IP23 rating, protecting it against dust and water splashes. Noise levels are kept at 109 dB(A) at 1 meter for open units and 77 dB(A) at 7 meters for enclosed units. Thus, you can keep them close to workstations and noise-sensitive environments without worries. The generator supports voltages between 380 and 415 volts, giving you more flexibility in installation and implementation.
| Specification | Value |
| Engine type | 4-cycle |
| Arrangement | 12V |
| Engine displacement (L) | 21 |
| Rated speed (rpm) | 1500 |
| Fuel tank capacity (L) | 470 |
| Fuel consumption at 100% | 133.2 |
| Fuel consumption at 75% | 102.5 |
| Fuel consumption at 50% | 71.5 |
| Total oil capacity (L) | 72.5 |
| Total coolant capacity (L) | 99 |
| Insulation class | H-class |
| Generator brand | Leroy Somer |
| Enclosure | IP23 |
| Voltage (V) | 380-415 |
MTU 650 kVA Diesel Generator Set 12V1600DS650 Dimensions and Weight
| System | Dimensions (LxWxH) | Weight (wet/with standard accessories) |
| Open power unit (OPU) | 3360 x 1645 x 2230 mm | 5340 kg |

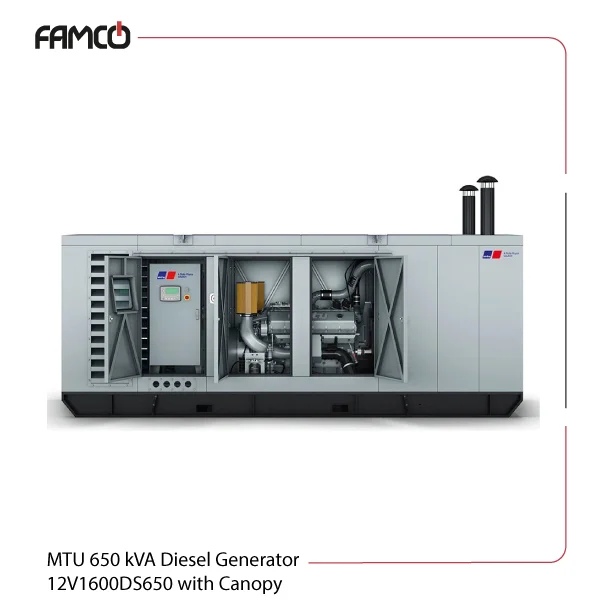

| Enclosed power unit (EPU) without tail pipe | 5400 x 2140 x 2175 mm | 8125 kg |
| Enclosed power unit (EPU) with tail pipe | 5400 x 2140 x 2760 mm | 8155 kg |
MTU 650 kVA Diesel Generator Set 12V1600DS650 Sound Data
| Sound data at 75% prime load | Open power unit (dB(A) at 1m) | 109 |
| Enclosed power unit (dB(A) at 7m) | 77 |
MTU 650 kVA Diesel Generator Set 12V1600DS650 Applications
- Industrial power supply for factories
- Backup power for large facilities
- Construction site power source
- Event and outdoor setup power
MTU 650 kVA Diesel Generator Set 12V1600DS650 Benefits
- High power capacity for demanding tasks
- Long fuel tank for extended operation
- Durable and weather-resistant design
- Flexible configurations for different needs
MTU 650 kVA Diesel Generator Set 12V1600DS650 Price List
| No. | Name | Price |
| 1 | MTU 650 kVA Diesel Generator Set 12V1600DS650 Price | Contact us |
