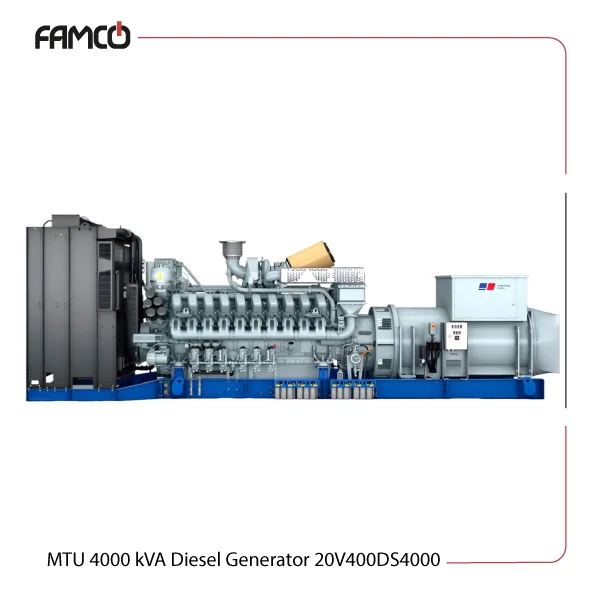

MTU 4000 kVA Diesel Generator Set 20V4000DS4000 Specifications
This generator provides users with a standby power of 4000 kVA. Its operational voltage ranges from 400 to 1100 volts, and it runs at a frequency of 50 Hz. The dg set’s engine displacement is 95.4 liters. It spins at a rated speed of 1500 rpm with consistent performance. Fuel consumption of this MTU diesel generator set varies with load: 806 liters per hour at full load, 565 liters at 75%, and 403 liters at half load.
The generator uses high-quality Leroy Somer components, a top-tier choice in its range. It has a total oil capacity of 390 liters, supporting long operational periods. The open power unit measures 6343 mm in length, 1810 mm in width, and 2421 mm in height, with a weight of 20,810 kg, which goes to show its heavy-duty industrial build.
| Specification | Value |
| Standby Power (kVA) | ≃ 4000 |
| Voltage (V) | 400-1100 |
| Frequency (Hz) | 50 |
| Displacement (L) | 95.4 |
| Rated RPM Speed | 1500 |
| Fuel Consumption at 100% Load (L/h) | 806 |
| Fuel Consumption at 75% Load (L/h) | 565 |
| Fuel Consumption at 50% Load (L/h) | 403 |
| Total Oil Capacity (L) | 390 |
| Generator Brand | Leroy Somer |

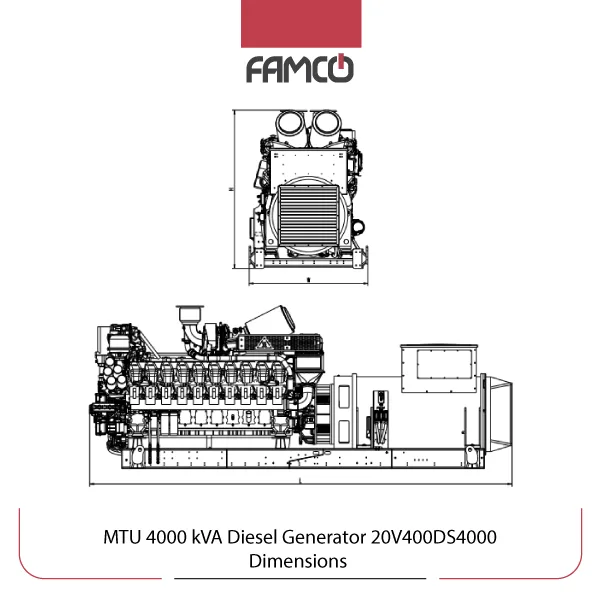

MTU 4000 kVA Diesel Generator Set 20V4000DS4000 Dimensions and Weight
| Dimensions (mm) | 6343 x 1810 x 2421 |
| Weight (kg) | 20810 |
MTU 4000 kVA Diesel Generator Set 20V4000DS4000 Applications
- Backup power for data centers
- Large industrial facilities
- Construction sites
- Emergency power for hospitals
MTU 4000 kVA Diesel Generator Set 20V4000DS4000 Benefits
- High power output suitable for demanding environments
- Reliable Leroy Somer brand ensures durability
- Flexible voltage and load options
- Efficient fuel consumption at various loads
MTU 4000 kVA Diesel Generator Set 20V4000DS4000 Price List
| No. | Name | Price |
| 1 | MTU 4000 kVA Diesel Generator Set 20V4000DS4000 Price | Contact us |
