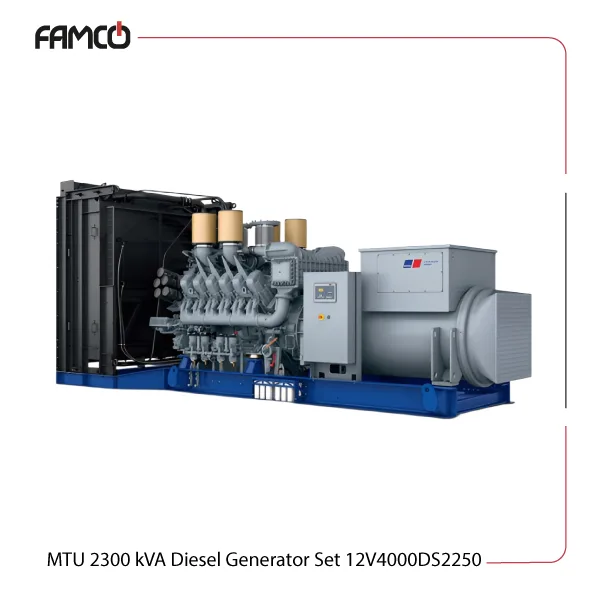

MTU 2300 kVA Diesel Generator Set 12V4000DS2250 Specifications
This power generator features a 4-cycle engine with a 12V arrangement, designed for high performance and reliability. It has a stroke length of 210 mm and operates at a rated speed of 1500 rpm. This MTU diesel generator‘s standby power capacity is 2300 kVA. Fuel consumption varies depending on load: 463 liters per hour at full capacity, 339 liters at 75%, and 233 liters at half load, ensuring efficient fuel use. This MTU diesel generator unit features a substantial oil capacity of 260 liters, enabling extended operational periods. Its dimensions are 4,077 mm in length, 1,810 mm in width, and 2,330 mm in height, with a weight of approximately 11,130 kg. The cooling system employs water charge air cooling to maintain optimal engine temperature. This feature alone helps keep longer standby operations running hassle-free.
| Specification | Value | |
| Standby Power (kVA) | with Leroy Somer LSA52.3 S7 or Leroy Somer LSA52.3 L12 generator | 2300 |
| with mechanical radiator and 2240 with mechanical radiator and Leroy Somer LSA53.2 XL9 generator | 2230 | |
| Engine Type | 4-cycle | |
| Arrangement | 12V | |
| Stroke (mm) | 210 | |
| Rated Speed (rpm) | 1500 | |
| Fuel Consumption at 100% Power (l/h) | 463 | |
| Fuel Consumption at 75% Power (l/h) | 339 | |
| Fuel Consumption at 50% Power (l/h) | 233 | |
| Total Oil Capacity (l) | 260 | |
| Cooling System | Water charge air cooling | |
| Voltage (V) | 380-415 (11 kV with Leroy Somer LSA53.2 XL9 generator) | |

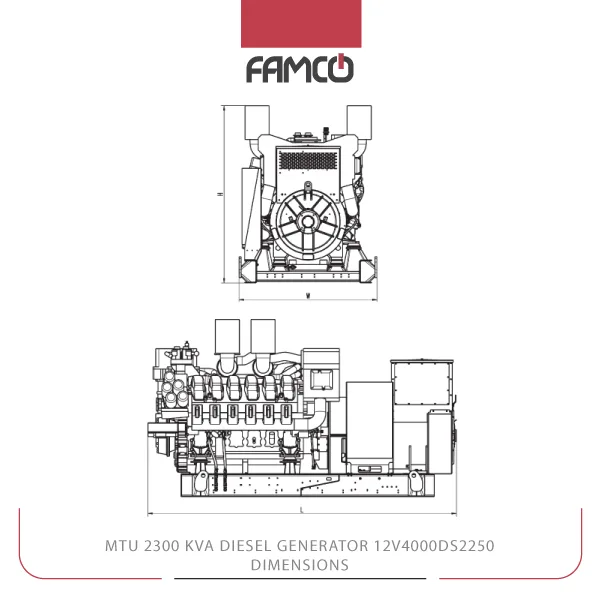

MTU 2300 kVA Diesel Generator Set 12V4000DS2250 Dimensions and Weight
| Open Power Unit (OPU) Dimensions (mm) | 4077 x 1810 x 2330 |
| Weight (kg) | 11130 |
MTU 2300 kVA Diesel Generator Set 12V4000DS2250 Applications
- Industrial power supply for factories
- Emergency backup for large facilities
- Construction site power source
- Data center energy support
MTU 2300 kVA Diesel Generator Set 12V4000DS2250 Benefits
- High power output for demanding applications
- Efficient fuel consumption at various loads
- Durable build with water cooling system
- Long operational capacity with large oil reserve
MTU 2300 kVA Diesel Generator Set 12V4000DS2250 Price List
| No. | Name | Price |
| 1 | MTU 2300 kVA Diesel Generator Set 12V4000DS2250 Price | Contact us |
