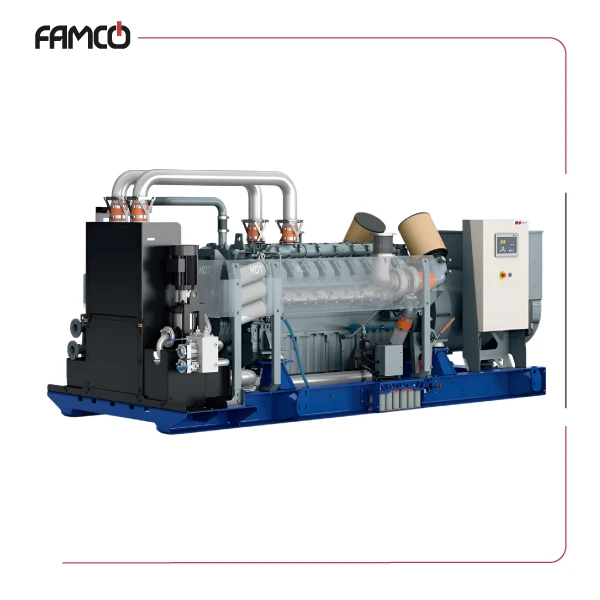

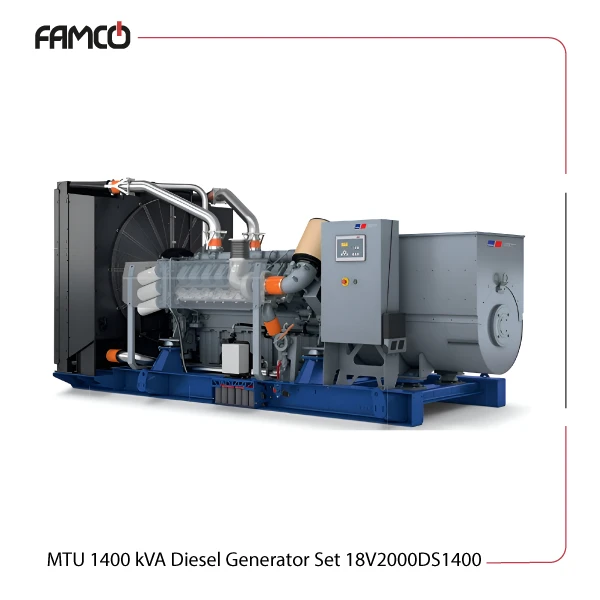

MTU 1400 kVA Diesel Generator Set 18V2000DS1400 Specifications
This generator has the advantage of having a 4-cycle engine with a displacement of 40.2 liters. Its speed is rated 1500 rpm, giving it momentum. It supports a standby power of 1400 kVA and operates within a voltage range of 380 to 415 volts. The cooling system offers two options: air-to-air charge-air cooling (TD) and water-to-air charge-air cooling (TB), with temperature management. This MTU diesel generator set has a specific fuel consumption depending on the load, consuming 286 liters per hour at full capacity, 210 liters at 75%, and 143 liters at half load.
The total oil capacity is 110 liters, providing ample lubrication for continuous operation. The engine is well-protected with an IP23 class, suitable for outdoor environments, and features insulation class H for safety and durability. The open power units are sizable, with dimensions of approximately 4720 x 1990 x 2200 mm for air-cooled models and slightly smaller for water-cooled versions, weighing around 7850 kg and 7500 kg, respectively. Exact measurements are given in the spec table below.
| Specification | Value |
| Standby Power (kVA) | 1400 |
| Voltage (V) | 380-415 |
| Cooling System | Air-to-Air Charge-Air Cooling (TD), Water-to-Air Charge-Air Cooling (TB) |
| Type | 4-cycle |
| Arrangement | 18V |
| Displacement (L) | 40.2 |
| Stroke (mm) | 156 |
| Rated Speed (rpm) | 1500 |
| Fuel Consumption at 100% Power (l/h) | 286 |
| Fuel Consumption at 75% Power (l/h) | 210 |
| Fuel Consumption at 50% Power (l/h) | 143 |
| Total Oil System Capacity (L) | 110 |
| Engine Protection Class | IP23 |
| Insulation Class | H |

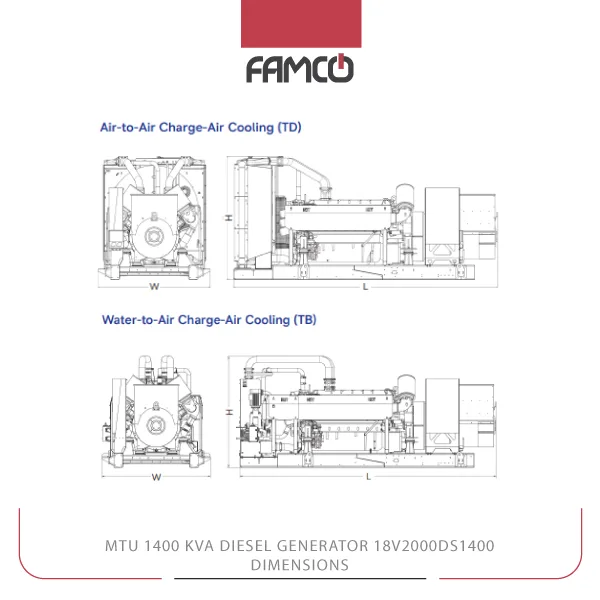

MTU 1400 kVA Diesel Generator Set 18V2000DS1400 Dimensions and Weight
| Dimensions (mm) | Open Power Unit (OPU) Air-to-Air (TD) | 4720 x 1990 x 2200 |
| Open Power Unit (OPU) Water-to-Air (TB) | 4711 x 1988 x 2046 | |
| Weight (kg) | Open Power Unit (OPU) Weight (kg) | 7850 |
| Water-to-Air OPU Weight (kg) | 7500 |
MTU 1400 kVA Diesel Generator Set 18V2000DS1400 Applications
- Industrial power backup
- Large-scale construction sites
- Data centers and server farms
- Hospitals and emergency facilities
MTU 1400 kVA Diesel Generator Set 18V2000DS1400 Benefits
- High power capacity for demanding applications
- Flexible cooling options for various environments
- Durable construction with IP23 protection
- Efficient fuel consumption at different loads
MTU 1400 kVA Diesel Generator Set 18V2000DS1400 Price List
| No. | Name | Price |
| 1 | MTU 1400 kVA Diesel Generator Set 18V2000DS1400 Price | Contact us |
