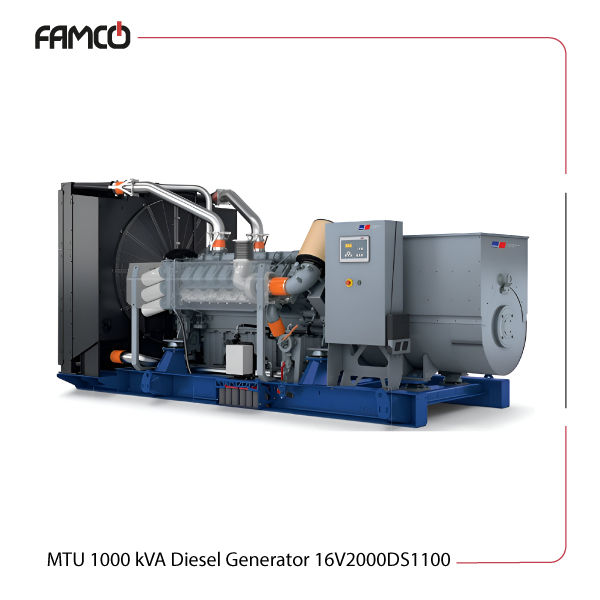

MTU 1000 kVA Diesel Generator Set 16V2000DS1100 Specifications
This MTU generator set’s standby power capacity of 1000 kVA is suitable for hard-wearing power backup needs. It operates within a voltage range of 380 to 415 volts for various industrial and commercial systems. The engine features a 16V arrangement with a stroke length of 156 mm, which ensures efficient power generation. Fuel consumption varies depending on load: 205 liters per hour at full capacity, 156 liters at 75%, and 115 liters at half load, which helps in planning fuel logistics for better power management.
The total oil capacity is 102 liters, providing sufficient lubrication for continuous operation. This generator is safeguarded against dust and water splashes by an IP23 class, and has an insulation class of H for high thermal endurance. Cooling in this MTU diesel generator set is managed via two systems: either an air-to-air charge-air cooling system (TD) or a water-to-air system (TB), depending on the model. The open power units are sizable, with dimensions of approximately 4440 x 1990 x 2200 mm for the air-cooled version, weighing about 7300 kg, while the water-cooled model measures roughly 4447 x 1988 x 2046 mm and weighs around 6900 kg, suitable for heavy-duty industrial applications. Exact specs are given below. For more information, you can always contact our sales experts.
| Specification | Value |
| Standby Power (kVA) | 1000 |
| Voltage (V) | 380-415 |
| Engine Type | 16V |
| Arrangement | 16V |
| Stroke (mm) | 156 |
| Fuel Consumption at 100% Power (L/h) | 205 |
| Fuel Consumption at 75% Power (L/h) | 156 |
| Fuel Consumption at 50% Power (L/h) | 115 |
| Total Oil Capacity (L) | 102 |
| Generator Protection Class | IP23 |
| Insulation Class | H |
| Cooling System | Air-to-Air Charge-Air Cooling (TD) |
| Water-to-Air Charge-Air Cooling (TB) |
1000 kVAMTU 1000 kVA Diesel Generator Set 16V2000DS1100 Dimensions and Weight
| Open Power Unit (OPU) Air-to-Air (TD) | Dimensions (LxWxH) | 4440 x 1990 x 2200 mm |
| Weight | 7300 kg | |
| Open Power Unit (OPU) Water-to-Air (TB) | Dimensions (LxWxH) | 4447 x 1988 x 2046 mm |
| Weight | 6900 kg |
1000 kVAMTU 1000 kVA Diesel Generator Set 16V2000DS1100 Applications
- Industrial power backup
- Large commercial facilities
- Data centers and server farms
- Critical infrastructure support
1000 kVAMTU 1000 kVA Diesel Generator Set 16V2000DS1100 Benefits
- High power capacity for demanding applications
- Flexible cooling options for efficiency
- Durable protection and insulation classes
- Optimized fuel consumption for cost savings
MTU 1000 kVA Diesel Generator Set 16V2000DS1100 Price List
| No. | Name | Price |
| 1 | MTU 1000 kVA Diesel Generator Set 16V2000DS1100 Price | Contact us |
