MTU 1000 kVA Diesel Generator Set 12V1600DS1000 Specifications
This generator features a 4-cycle engine with a displacement of 22.44 liters, designed for high performance at 1500 rpm. This series of MTU diesel generators operates on a voltage range of 380-415V and has a standby power capacity of 1000 kVA. The engine arrangement is 12V, resulting in a uniform and steady power output. Fuel consumption varies with load, with 206 liters per hour at full capacity, 155.2 liters at 75%, and 107.1 liters at half load. The generator is equipped with a Leroy Somer brand unit and features an insulation class of H, suitable for demanding environments.
The optional enclosure is rated IP23, protecting it against dust and water splashes. The dg set’s total oil capacity is 72.5 liters, and the coolant capacity is 65 liters, supporting long operational periods.
The dimensions vary for each configuration, with open units measuring approximately 3630 x 2060 x 2525 mm and weighing around 5700 kg, while the enclosed units are expectedly larger and heavier, up to 9000 kg. This MTU-manufactured diesel genset’s noise levels are manageable, with open units producing 112 dB at 1 meter, and enclosed units emitting 77.7 dB at 7 meters.
| Specification | Value |
| Standby power (kVA) | 1000 |
| Voltage (V) | 380-415 |
| Engine type | 4-cycle |
| Arrangement | 12V |
| Displacement (L) | 22.44 |
| Rated speed (rpm) | 1500 |
| Fuel consumption at 100% power | 206 |
| Fuel consumption at 75% power | 155.2 |
| Fuel consumption at 50% power | 107.1 |
| Total oil capacity (L) | 72.5 |
| Total coolant capacity (L) | 65 |
| Generator brand | Leroy Somer |
| Generator insulation class | H-class |
| Enclosure | IP23 |

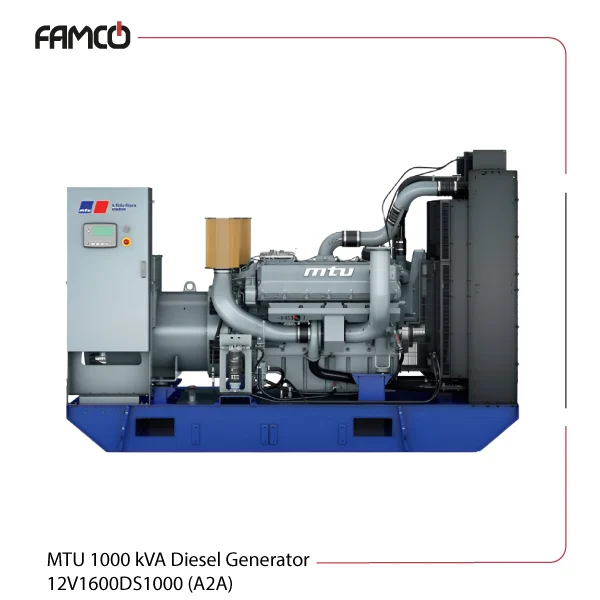

| Cooling system | Air-to-air charge air cooling – A2A (TD) |

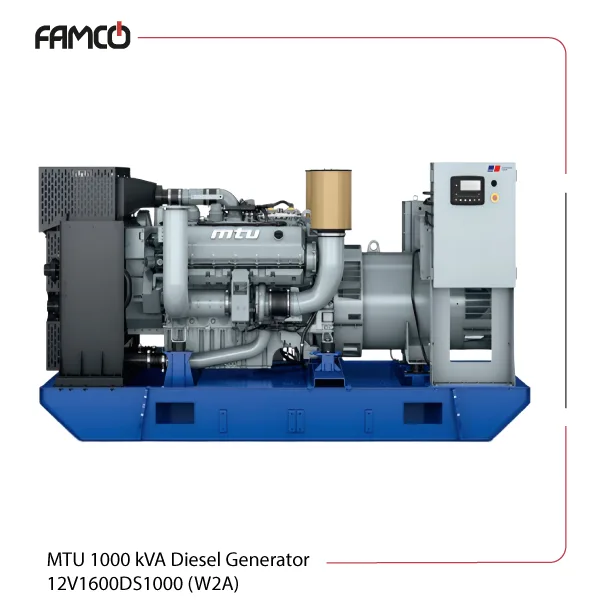

| Water-to-air charge-air cooling – W2A (TB) |

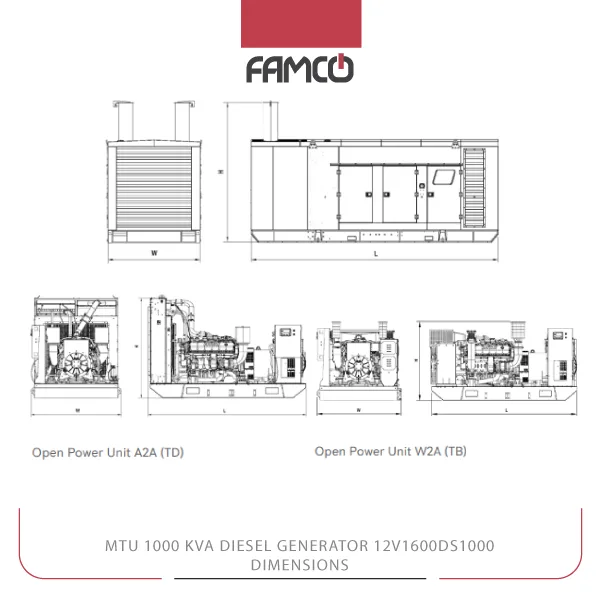

MTU 1000 kVA Diesel Generator Set 12V1600DS1000 Dimensions and Weight
| System | Dimensions (LxWxH) | Weight (wet/with standard accessories) |
| Open power unit (OPU) (A2A/TD) | 3630 x 2060 x 2525 mm | 5700 kg |
| Open power unit (OPU) (W2A/TB) | 3762 x 2095 x 1960 mm | 5450 kg |
| Enclosed power unit (EPU) without tail pipe | 5900 x 2245 x 2530 mm | 8900 kg |
| Enclosed power unit (EPU) with tail pipe | 5900 x 2245 x 3500 mm | 9000 kg |
MTU 1000 kVA Diesel Generator Set 12V1600DS1000 Sound Data
| Sound data at 75% prime load | Open power unit (dB(A) at 1m) | 112 |
| Enclosed power unit (dB(A) at 7m) | 77.7 |
MTU 1000 kVA Diesel Generator Set 12V1600DS1000 Applications
- Industrial power backup systems
- Construction sites
- Large commercial facilities
- Emergency power supply for critical infrastructure
MTU 1000 kVA Diesel Generator Set 12V1600DS1000 Benefits
- High power output of 1000 kVA for demanding applications
- Durable construction with quality Leroy Somer components
- Flexible configurations, including open and enclosed units
- Efficient fuel consumption at various loads
MTU 1000 kVA Diesel Generator Set 12V1600DS1000 Price List
| No. | Name | Price |
| 1 | MTU 1000 kVA Diesel Generator Set 12V1600DS1000 Price | Contact us |
