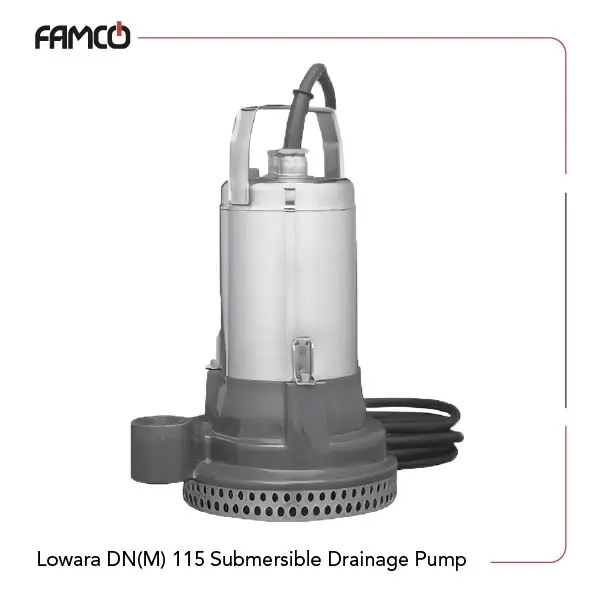

Lowara DN(M) 115 Submersible Drainage Pumps Specifications
Lowara DN(M) 115 submersible drainage pumps is designed for efficiency and durability. It can handle a maximum liquid temperature of 50°C when fully submerged and 25°C when partially submerged. The mechanical seal is made of carbon and ceramic alumina, ensuring reliable operation.
This Lowara pump can manage suspended solids up to 5 mm in size. The pump is available in single-phase with a plug and three-phase without a plug. It has an insulation class of 155°C (F) and a protection class of IPX8, making it suitable for various environments. The maximum immersion depth is 5 meters, and the pump body is constructed from robust cast iron. The impeller is made from steel combined with nitrile rubber (XNBR), while the motor casing and shaft end are stainless steel. With a head range of 6.4 to 16.2 meters, this pump is versatile for different applications. Its dimensions are compact, with a weight of 18.5 kg and a power rating of 0.6 kW (0.8 HP).
| Specification | Value |
| Maximum liquid temperature | 50°C with fully submerged pump, 25°C with partially submerged pump |
| Maximum dimension of suspended solids | 5 mm |
| Single-phase | with plug |
| Three-phase | without plug |
| Insulation class | 155°C (F) |
| Protection class | IPX8 |
| Maximum immersion depth | 5 m |
| Rotation speed (rpm) | ~ 2850 |
| Head (m) | 6.4-16.2 |
| Power (kW) | 0.6 |
| Power (HP) | 0.8 |
Lowara DN(M) 115 Submersible Drainage Pumps Materials
- Mechanical seal: Carbon / Ceramic Alumina / NBR (standard version), with sand labyrinth
- Pump body: Cast iron
- Impeller: Steel + Nitrile Rubber XNBR
- Motor casing: Stainless steel
- Shaft end: Stainless steel
Lowara DN(M) 115 Submersible Drainage Pumps Performance Data
| l/min | 0 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 210 | 225 | 250 |
| m3 /h | 0 | 1.5 | 3 | 4.5 | 6 | 7.5 | 9 | 10.5 | 12.6 | 12.6 | 15 |
| H (m) | 16.2 | 15.6 | 14.9 | 14.1 | 13.3 | 12.4 | 11.4 | 10.3 | 8.6 | 7.8 | 6.4 |
Lowara DN(M) 115 Submersible Drainage Pumps Weight and Dimensions
| Dimensions (mm) | |
| C | Ø 200 |
| H | 380 |
| H1 | 81 |
| L | 223 |
| L1 | 209 |
| W | 95 |
| W1 | 81 |
| Weight (kg) | |
| 18.5 | |
Lowara DN(M) 115 Submersible Drainage Pumps Applications
- Water drainage in flooded areas
- Irrigation systems for agriculture
- Water transfer in industrial settings
- Sump pumping in basements
Lowara DN(M) 115 Submersible Drainage Pumps Benefits
- Durable construction with cast iron and stainless steel
- Efficient operation at varying temperatures
- Handles suspended solids up to 5 mm
- Compact design for easy installation
Lowara DN(M) 115 Submersible Drainage Pumps Price List
| No. | Name | Price |
| 1 | Lowara DN(M) 115 Submersible Drainage Pumps Price | Contact us |
