Lowara 2 HP Submersible Wastewater Pump DOMO 20(T) Specifications
This product tolerates a maximum temperature of 35°C. Its sturdy design and high performance are suitable for residential and industrial use. This Lowara submersible pump operates in a three-phase configuration. The insulation class in this series of submersible pumps is rated at 155°C (F) to make it durable under various conditions. An IPX8 protection degree enables this product to withstand immersion up to 5 meters deep. The voltage ranges from 220- 240V to 380- 415V. This product’s solid construction with a stainless steel pump body and motor casing handles possible causes of wear. The mechanical seal is made of silicon carbide to give it the upper hand among sewage pumps of this power. This pump operates at a speed of approximately 2850 rpm, weighs 14.6 kg, and has a power output of 1.5 kW (2 HP). It can handle solids up to 50 mm in size and has a head range of 4.2 to 14.8 meters.
| Specification | Value |
| Maximum liquid temperature | 35°C |
| Three-phase | without plug |
| Insulation class | 155°C (F) |
| Protection degree | IPX8 |
| Maximum immersion depth | 5 m |
| Voltage in three-phase (V) | 220-240V, 380-415V |
| Number of poles | 2 |
| Frequency (Hz) | 50 |
| Max. solids size (mm) | 50 |
| Speed (rpm) | ~2850 |
| Weight (kg) | 14.6 |
| Power (kW) | 1.5 |
| Power (HP) | 2 |
| Head (m) | 4.2-14.8 |
| weight (kg) | 14.6 |
Lowara 2 HP Submersible Wastewater Pump DOMO 20(T) Materials
- Pump body: Stainless steel
- Motor casing: Stainless steel
- Mechanical seal: Silicon carbide / Silicon carbide / NBR (standard version)
Lowara 2 HP Submersible Wastewater Pump DOMO 20(T) Technical Data
| Q (m3/h) | 0 | 100 | 150 | 200 | 250 | 300 | 320 | 400 | 500 | 600 | 670 |
| Q (l/min) | 0 | 6 | 9 | 12 | 15 | 18 | 19.2 | 24 | 30 | 36 | 40.2 |
| H (m) | 14.8 | 13.2 | 12.4 | 11.7 | 10.9 | 10.2 | 9.9 | 8.7 | 7.1 | 5.4 | 4.2 |

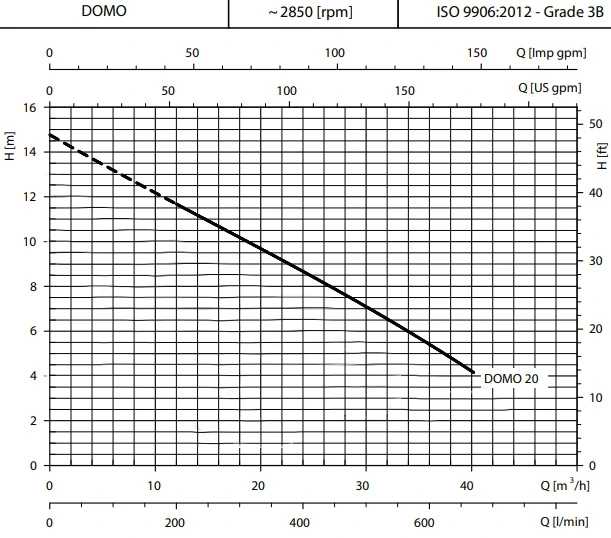

Lowara 2 HP Submersible Wastewater Pump DOMO 20(T) Performance Curve
Lowara 2 HP Submersible Wastewater Pump DOMO 20(T) Applications
- Water drainage in residential areas
- Wastewater management in industrial settings
- Irrigation systems for agriculture
- Pumping liquids in construction sites
Lowara 2 HP Submersible Wastewater Pump DOMO 20(T) Benefits
- Durable stainless steel construction for longevity
- High efficiency with a powerful motor
- Versatile for various liquid handling tasks
- IPX8 rating ensures reliable performance underwater
Lowara 2 HP Submersible Wastewater Pump DOMO 20(T) Price List
| No. | Name | Price |
| 1 | Lowara 2 HP Submersible Wastewater Pump DOMO 20(T) Price | Contact us |
