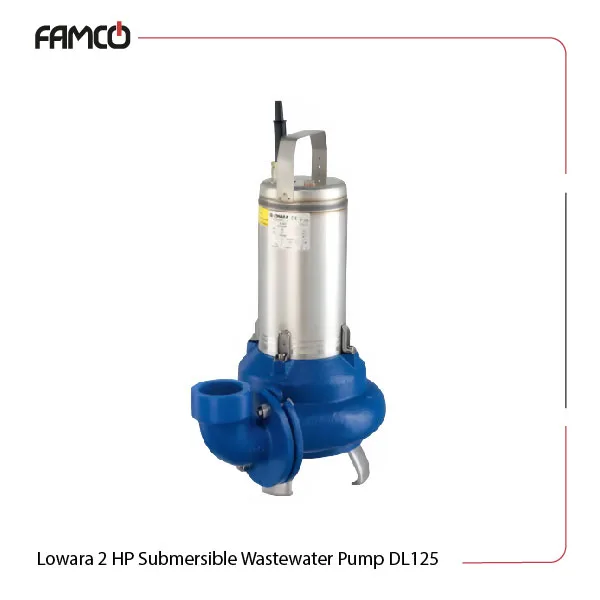

Lowara 2 HP Submersible Wastewater Pump DL125 Specifications
This Lowara pump is designed for various demanding applications. As a submersible pump, it can handle liquids up to 50°C when fully submerged and 25°C when partially submerged. The mechanical seal features a sand labyrinth design to make it as durable as it can be. Lubrication is maintained through an oil bath system, which helps extend the pump’s lifespan. The insulation class is rated at 155°C (F), and it has an IPX8 protection degree, suitable for continuous immersion up to 5 meters deep. The DL125 pump can process suspended solids up to 50 mm in size, which is required since it is a sewage pump. The single-phase model includes thermal overload protection for safety. The pump body is made of cast iron, which gives the product extra strength, while the motor casing is made of stainless steel for enhanced corrosion resistance.
The mechanical seal combines carbon, ceramic alumina, and NBR materials for a tight seal. It delivers a head height between 6.5 and 21.9 meters and has a power output of 1.5 kW (2 HP). The pump is suitable for applications like sewage management, emptying sumps, septic tanks, wastewater discharge, draining flooded excavations, and marshy grounds.
| Specification | Value |
| Maximum liquid temperature | 50°C with fully submerged pump, 25°C with partially submerged pump |
| Lubrification | oil bath |
| Operation mode in three-phase | without plug |
| Insulation class | 155°C (F) |
| Protection degree | IPX8 |
| Maximum immersion depth | 5 m |
| Maximum dimension of suspended solids | 50 mm |
| Three-phase Voltage | 220-240V/380-415V |
| No. of poles | 2 |
| Frequency | 50Hz |
| Three-phase Voltage | 220-240V / 380-415V |
| Power | 1.5 kW |
| Power (HP) | 2 |
| H (m) | 6.5-21.9 |
Lowara 2 HP Submersible Wastewater Pump DL125 Materials
- Pump body: Cast iron
- Motor casing: Stainless steel
- Mechanical seal: Carbon / Ceramic Alumina / NBR (standard version)
Lowara 2 HP Submersible Wastewater Pump DL125 Technical Data
| M3/h | 0 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 | 700 |
| l/min | 0 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 27 | 30 | 36 | 42 |
| Head (m) | 21.9 | 19.2 | 17.9 | 16.7 | 15.5 | 14.4 | 13.4 | 12.3 | 11.3 | 10.3 | 8.4 | 6.5 |

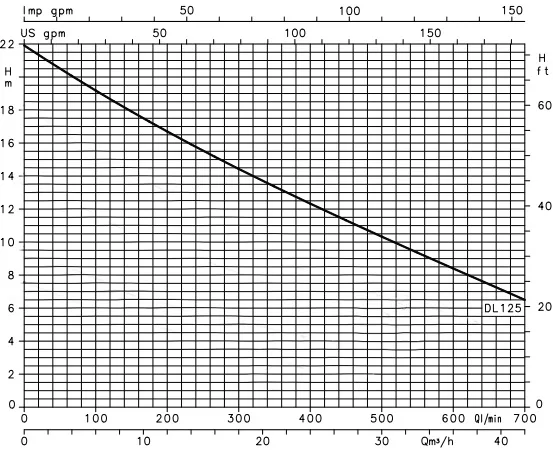

Lowara 2 HP Submersible Wastewater Pump DL125 Performance Curve
Lowara 2 HP Submersible Wastewater Pump DL125 Applications
- Sewage management and treatment
- Emptying of sumps and septic tanks
- Discharge of wastewater and sewage
- Drainage of flooded excavations and marshy grounds
Lowara 2 HP Submersible Wastewater Pump DL125 Benefits
- High durability with cast iron body and stainless steel casing
- Reliable operation with sand labyrinth seal and oil bath lubrication
- Suitable for continuous underwater use up to 5 meters depth
- Handles solids up to 50 mm for effective debris removal
Lowara 2 HP Submersible Wastewater Pump DL125 Price List
| No. | Name | Price |
| 1 | Lowara 2 HP Submersible Wastewater Pump DL125 Price | Contact us |
