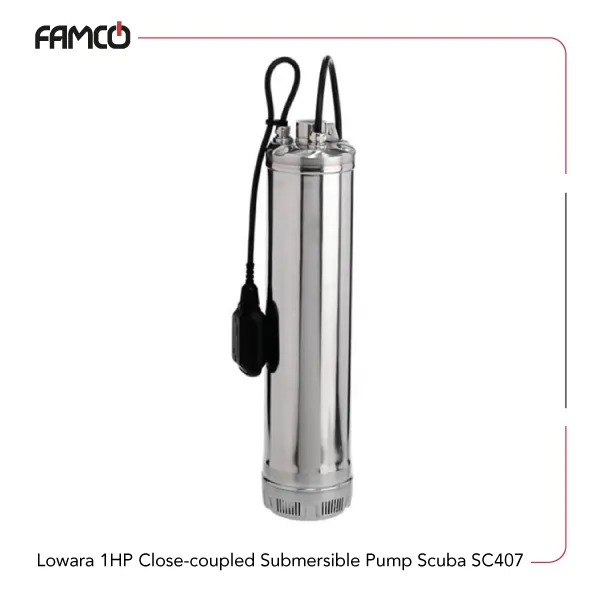

Lowara 1HP Close-coupled Submersible Drainage Pump Scuba SC407 Specifications
Lowara 1HP close-coupled submersible drainage pump Scuba SC407 features an insulation class of F, ensuring good thermal resistance. It can be installed both horizontally and vertically, offering flexible setup options. The maximum liquid temperature it handles is 40°C, making it suitable for various water applications. It can operate at a maximum immersion depth of 20 meters, ideal for deep water or sump pumping. The pump’s solid passage is up to 2.5 mm, allowing it to handle small solids without clogging. It has a 1 1/4 inch outlet for easy connection to pipes. The impeller is made of technopolymere, providing durability and efficiency. This Lowara submersible pump runs at 2850 rpm, with a weight of 14.5 kg, making it relatively lightweight for its power. The motor consumes 0.75 kW (1 HP), delivering a maximum flow rate of 125 liters per minute or 7.5 cubic meters per hour. The maximum delivery head is 42.8 meters, suitable for high-lift applications. Overall, this pump is designed for reliable water transfer, suitable for various industrial and domestic uses, with flexible installation options and robust construction.
| Specification | Value |
| Insulation class | F |
| Installation | Both horizontal and vertical |
| Maximum liquid temperature (°C) | 40 |
| Maximum immersion depth (m) | 20 |
| Solid passage (mm) | 2.5 |
| Outlet (inch) | 1 1/4 |
| Impeller | Technopolymere |
| Speed (rpm) | 2850 |
| Weight (kg) | 14.5 |
| Power (kW) | 0.75 |
| Power (HP) | 1 |
| Maximum flow rate (l/min) | 125 |
| Maximum flow rate (m3/h) | 7.5 |
| Maximum delivery head (m) | 42.8 |
Lowara 1HP Close-coupled Submersible Drainage Pump Scuba SC407 Performance Curve
| Flow rate (l/min) | 0 | 20 | 30 | 40 | 50 | 60 | 75 | 80 | 100 | 125 |
| Flow rate (m3/h) | 0 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.5 | 4.8 | 6 | 7.5 |
| Head (m) | 49.4 | 66.3 | 61.8 | 42.8 | 40.6 | 38.1 | 34 | 32.5 | 25.9 | 16.5 |

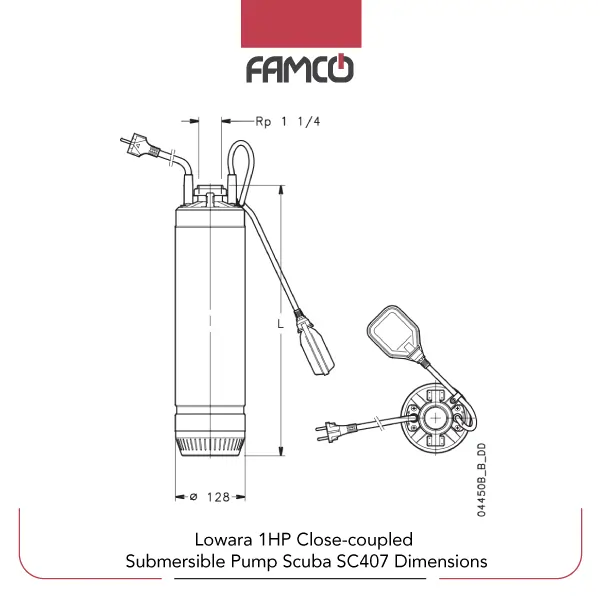

Lowara 1HP Close-coupled Submersible Drainage Pump Scuba SC407 Dimensions
| N° Of Stages | Dimensions (L-mm) | Weight (kg) | Cable length (m) |
| 4 | 541 | 14.5 | 20 |
Lowara 1HP Close-coupled Submersible Drainage Pump Scuba SC407 Applications
- Deep well water extraction
- Sump and drainage pumping
- Irrigation systems
- Industrial water transfer
Lowara 1HP Close-coupled Submersible Drainage Pump Scuba SC407 Benefits
- Flexible installation options for various setups
- Handles solids up to 2.5 mm, suitable for contaminated water
- High flow rate and delivery head for demanding tasks
- Energy-efficient with moderate power consumption
Lowara 1HP Close-coupled Submersible Drainage Pump Scuba SC407 Price List
| No. | Name | Price |
| 1 | Lowara 1HP Close-coupled Submersible Drainage Pump Scuba SC407 Price | Contact us |
