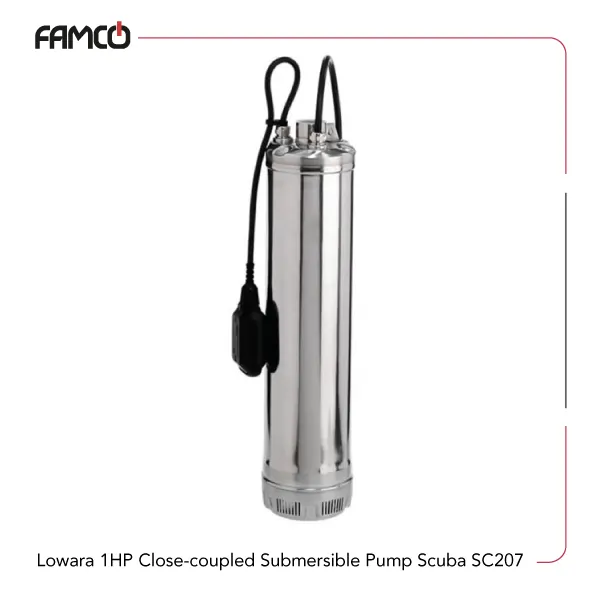

Lowara 1HP Close-coupled Submersible Drainage Pump Scuba SC207 Specifications
Lowara 1HP close-coupled submersible drainage pump Scuba SC207 features an insulation class F, ensuring good thermal resistance. It can be installed both horizontally and vertically, making it versatile for various setups. The maximum liquid temperature it can handle is 40°C, suitable for many water applications. This Lowara submersible pump can operate at a maximum immersion depth of 20 meters, ideal for deep water pumping. The pump’s solid passage is up to 2.5 mm, allowing it to handle small solids without clogging. It has a 1 1/4 inch outlet for efficient flow. The impeller is made of durable technopolymere, providing longevity and resistance. It runs at 2850 rpm, delivering a maximum flow rate of 75 liters per minute or 4.5 cubic meters per hour. The maximum delivery head is 56.7 meters, making it suitable for high-head applications. Weighing 15 kg, it is relatively lightweight for easy installation and maintenance. The power consumption is 0.75 kW or 1 HP, offering efficient performance with low energy use.
| Specification | Value |
| Insulation class | F |
| Installation | Both horizontal and vertical |
| Maximum liquid temperature (°C) | 40 |
| Maximum immersion depth (m) | 20 |
| Solid passage (mm) | 2.5 |
| Outlet (inch) | 1 1/4 |
| Impeller | Technopolymere |
| Speed (rpm) | 2850 |
| Weight (kg) | 15 |
| Power (kW) | 0.75 |
| Power (HP) | 1 |
| Maximum flow rate (l/min) | 75 |
| Maximum flow rate (m3/h) | 4.5 |
| Maximum delivery head (m) | 56.7 |
Lowara 1HP Close-coupled Submersible Drainage Pump Scuba SC207

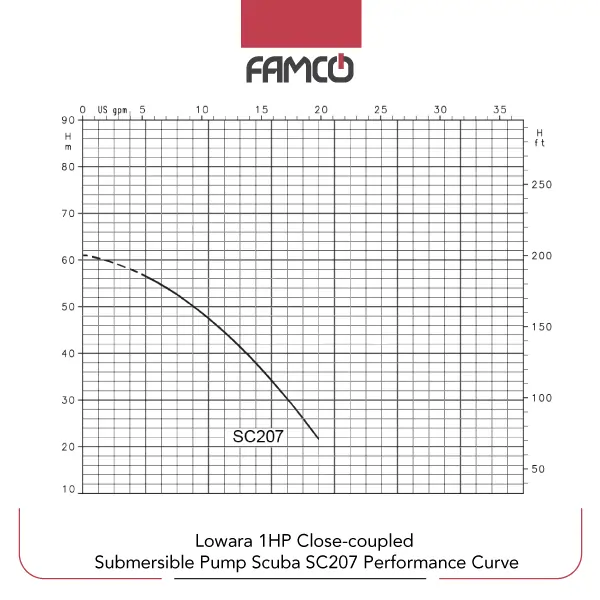

| Flow rate (l/min) | 0 | 20 | 30 | 40 | 50 | 60 | 75 |
| Flow rate (m3/h) | 0 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.5 |
| Head (m) | 61.2 | 56.7 | 52.7 | 47.6 | 41.5 | 34.3 | 21.7 |
Lowara 1HP Close-coupled Submersible Drainage Pump Scuba SC207

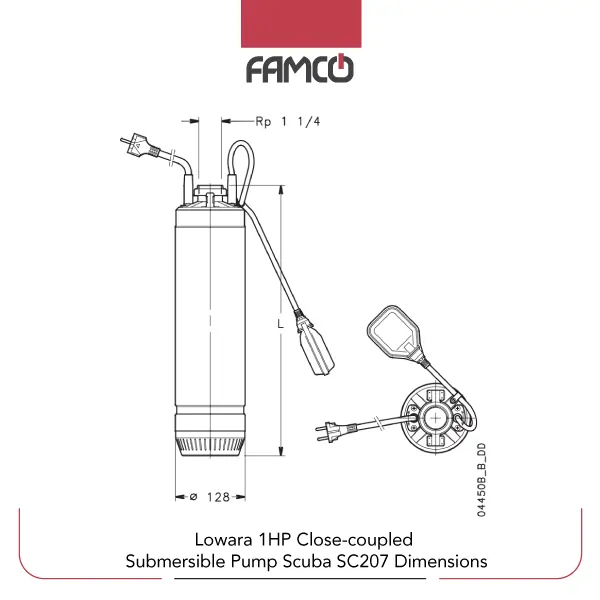

| N° Of Stages | Dimensions (L-mm) | Weight (kg) | Cable length (m) |
| 5 | 566 | 15 | 20 |
Lowara 1HP Close-coupled Submersible Drainage Pump Scuba SC207 Applications
- Water transfer in residential buildings
- Irrigation systems for small farms
- Industrial fluid transfer tasks
- Deep well water extraction
Lowara 1HP Close-coupled Submersible Drainage Pump Scuba SC207 Benefits
- Flexible installation options for different setups
- High efficiency with low energy consumption
- Durable construction with technopolymere impeller
- Capable of handling small solids and deep water
Lowara 1HP Close-coupled Submersible Drainage Pump Scuba SC207 Price List
| No. | Name | Price |
| 1 | Lowara 1HP Close-coupled Submersible Drainage Pump Scuba SC207 Price | Contact us |
