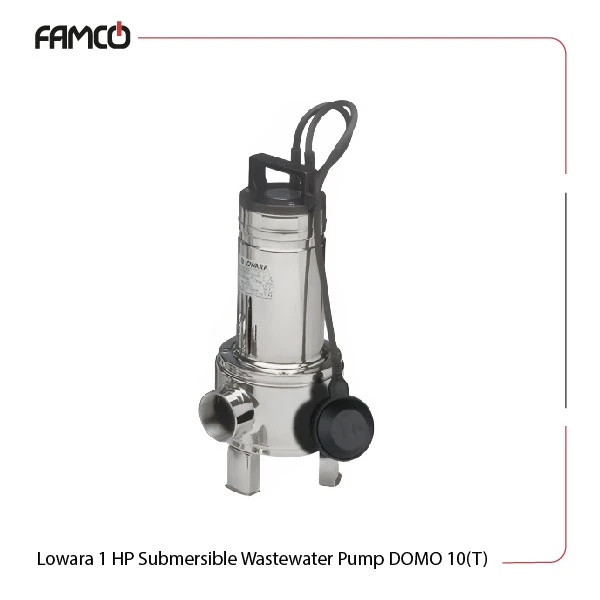

Lowara 1 HP Submersible Wastewater Pump DOMO10(T) Specifications
This pump is designed for efficient performance in various applications. This Lowara submersible pump operates at a maximum liquid temperature of 35°C and is available in both single-phase and three-phase configurations. The single-phase version comes with a plug. The insulation class is rated at 155°C (F) that makes it durabile under high temperatures. This product has an IPX8 protection degree that works well when submerged up to 5 meters deep. The voltage specifications vary, with single-phase operating at 220-240V and three-phase at 220-240V or 380-415V. It also features a stainless steel pump body and motor casing, which is a resistant material against corrosion. The mechanical seal is made of silicon carbide, providing reliable sealing. The pump operates at a speed of approximately 2850 rpm and can handle solids up to 50 mm in size, which comes in handy in sewage pumps of this sort. The weight for the single-phase model is 13.6 kg, while the three-phase model weighs 11.6 kg. It has a power output of 0.75 kW (1 HP) and a head range of 3.2 to 10.1 meters.
| Specification | Value |
| Maximum liquid temperature | 35°C |
| Single-phase | with plug |
| Three-phase | without plug |
| Insulation class | 155°C (F) |
| Protection degree | IPX8 |
| Maximum immersion depth | 5 m |
| Voltage in single-phase (V) | 220-240V |
| Voltage in three-phase (V) | 220-240V, 380-415V |
| Number of poles | 2 |
| Frequency (Hz) | 50 |
| Max. solids size (mm) | 50 |
| Speed (rpm) | ~2850 |
| Single-phase weight (kg) | 13.6 |
| Three-phase weight (kg) | 11.6 |
| Power (kW) | 0.75 |
| Power (HP) | 1 |
| Head (m) | 3.2-10.1 |
Lowara 1 HP Submersible Wastewater Pump DOMO10(T) Materials
- Pump body: Stainless steel
- Impeller: fiberglass-silic
- Motor casing: Stainless steel
- Mechanical seal: Silicon carbide / Silicon carbide / NBR (standard version)
Lowara 1 HP Submersible Wastewater Pump DOMO10(T) Applications
- Drainage of flooded areas
- Irrigation systems for agriculture
- Wastewater management in industrial settings
- Pumping water from wells or reservoirs
Lowara 1 HP Submersible Wastewater Pump DOMO10(T) Technical Data
| Q (m3/h) | 0 | 100 | 150 | 200 | 250 | 300 | 320 | 400 | 500 |
| Q (l/min) | 0 | 6 | 9 | 12 | 15 | 18 | 19.2 | 24 | 30 |
| H (m) | 10.1 | 8.5 | 7.8 | 7.2 | 6.6 | 6.0 | 5.8 | 4.7 | 3.2 |

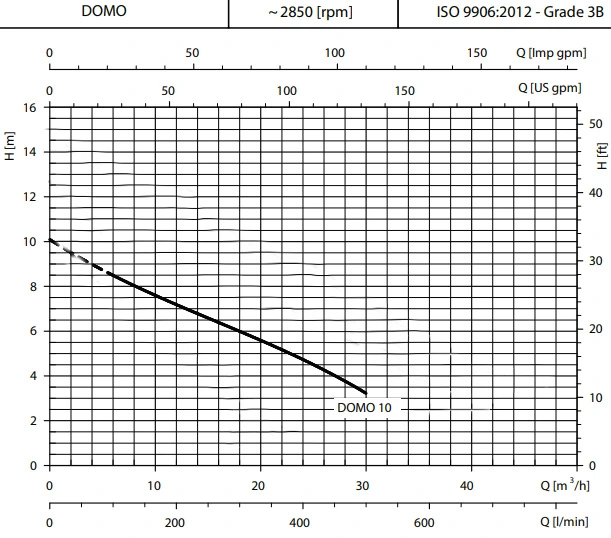

Lowara 1 HP Submersible Wastewater Pump DOMO10(T) Performance Curve
Lowara 1 HP Submersible Wastewater Pump DOMO10(T) Benefits
- Durable stainless steel construction for longevity
- High protection degree for safe submersion
- Efficient performance with a solid handling capability
- Versatile applications across different sectors
Lowara 1 HP Submersible Wastewater Pump DOMO10(T) Price List
| No. | Name | Price |
| 1 | Lowara 1 HP Submersible Wastewater Pump DOMO10(T) Price | Contact us |
