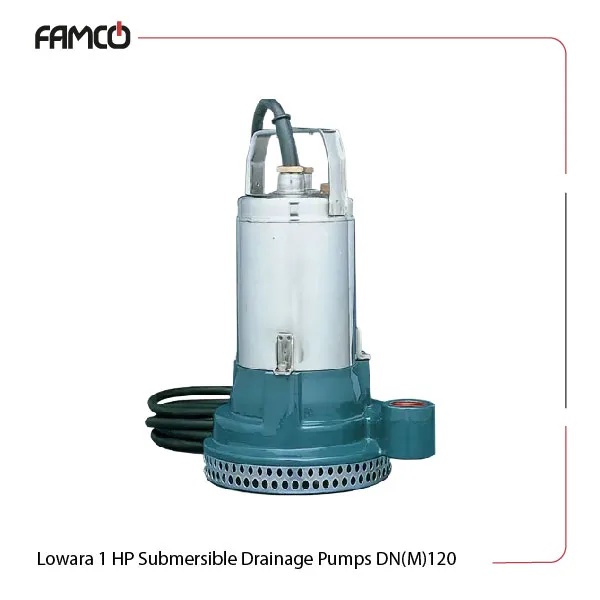

Lowara 1 HP Submersible Drainage Pumps DN(M)120 Specifications
Designed for efficient liquid transfer, this submersible pump can handle liquids up to 50°C when fully submerged. Otherwise, it tolerates 25°C liquids when partially submerged. This drainage pump features a durable cast iron body and a stainless steel motor casing. Its impeller, made from steel and Nitrile Rubber XNBR, provides reliable performance while managing suspended solids up to 5 mm in size. The mechanical seal, composed of Carbon, Ceramic Alumina, and NBR, is equipped with a sand labyrinth to prevent leakage and withstand harsh conditions. Suitable for both single-phase (with plug) and three-phase (without plug) power supplies, these submersible pumps operate at 50 Hz with a two-pole motor.
The pump offers a maximum head of 22 meters and a flow rate of 16.8 cubic meters per hour. Its protection class IPX8 allows for immersion up to 5 meters, and it has an insulation class of 155°C, ensuring safety and durability during operation. Weighing 19.5 kg, this pump combines power and portability, making it suitable for industrial, agricultural, or residential use where reliable liquid movement is needed.
| Specification | Value |
| Maximum liquid temperature | 50°C with fully submerged pump, 25°C with partially submerged pump |
| Maximum dimension of suspended solids | 5 mm |
| Single-phase | with plug |
| Three-phase | without plug |
| Single-phase voltage (V) | 220-240 |
| Three-phase voltage (V) | 220-240, 380-415 |
| Number of poles | 2 |
| Frequency (Hz) | 50 |
| Insulation class | 155°C (F) |
| Protection class | IPX8 |
| Maximum immersion depth | 5 m |
| Head (m) | 7.3-22.0 |
| Max. flow rate (m3/h) | 16.8 |
| Weight (kg) | 19.5 |
| Power (kW) | 0.75 |
| Power (HP) | 1 |
Lowara 1 HP Submersible Drainage Pumps DN(M)120 Materials
- Pump body: Cast iron
- Impeller: Steel + Nitrile Rubber XNBR
- Motor casing: Stainless steel
- Shaft end: Stainless steel
- Mechanical seal: Carbon / Ceramic Alumina / NBR (standard version), with sand labyrinth
Lowara 1 HP Submersible Drainage Pumps DN(M)120 Technical Data
| l/min | 0 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 210 | 225 | 250 | 280 |
| m3 /h | 0 | 1.5 | 3 | 4.5 | 6 | 7.5 | 9 | 10.5 | 12.6 | 13.5 | 15 | 16.8 |
| H (m) | 22.0 | 21.1 | 20.1 | 19.1 | 18.0 | 16.8 | 15.6 | 14.2 | 12.1 | 11.2 | 9.5 | 7.3 |

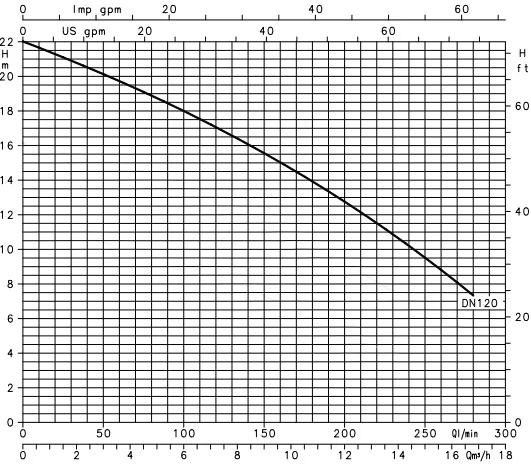

Lowara 1 HP Submersible Drainage Pumps DN(M)120 Performance Curve
Lowara 1 HP Submersible Drainage Pumps DN(M)120 Applications
- Water transfer in industrial facilities
- Drainage and flood control
- Irrigation in agriculture
- Residential water pumping systems
Lowara 1 HP Submersible Drainage Pumps DN(M)120 Benefits
- High durability with cast iron and stainless steel parts
- Can handle solids up to 5 mm in size
- Flexible power options for different setups
- Deep immersion capability up to 5 meters
Lowara 1 HP Submersible Drainage Pumps DN(M)120 Price List
| No. | Name | Price |
| 1 | Lowara 1 HP Submersible Drainage Pumps DN(M)120 Price | Contact us |
There are no reviews yet.
