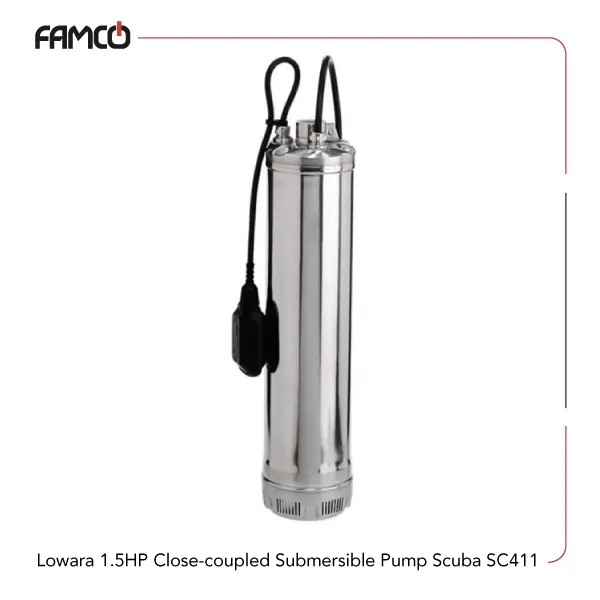

Lowara 1.5HP Close-coupled Submersible Drainage Pump Scuba SC411 Specifications
Lowara 1.5HP close-coupled submersible drainage pump Scuba SC411 features an insulation class of F, making it suitable for various environments. It can be installed both horizontally and vertically, providing flexibility in setup. The pump operates efficiently at a maximum liquid temperature of 40°C and can be immersed up to 20 meters deep. This Lowara submersible pump has a solid passage of up to 2.5 mm, allowing it to handle small solids without clogging. The outlet size is 1 1/4 inch, compatible with standard fittings. Equipped with a durable technopolymere impeller, it runs at 2850 rpm, ensuring reliable performance. Weighing 17.5 kg, it consumes 1.1 kW (or 1.5 HP) of power. The maximum flow rate is 125 liters per minute, or 7.5 cubic meters per hour, with a maximum delivery head of 63.4 meters, making it suitable for various pumping tasks in different settings.
| Specification | Value |
| Insulation class | F |
| Installation | Both horizontal and vertical |
| Maximum liquid temperature (°C) | 40 |
| Maximum immersion depth (m) | 20 |
| Solid passage (mm) | 2.5 |
| Outlet (inch) | 1 1/4 |
| Impeller | Technopolymere |
| Speed (rpm) | 2850 |
| Power (kW) | 1.1 |
| Power (HP) | 1.5 |
| Maximum flow rate (l/min) | 125 |
| Maximum flow rate (m3/h) | 7.5 |
| Maximum delivery head (m) | 63.4 |

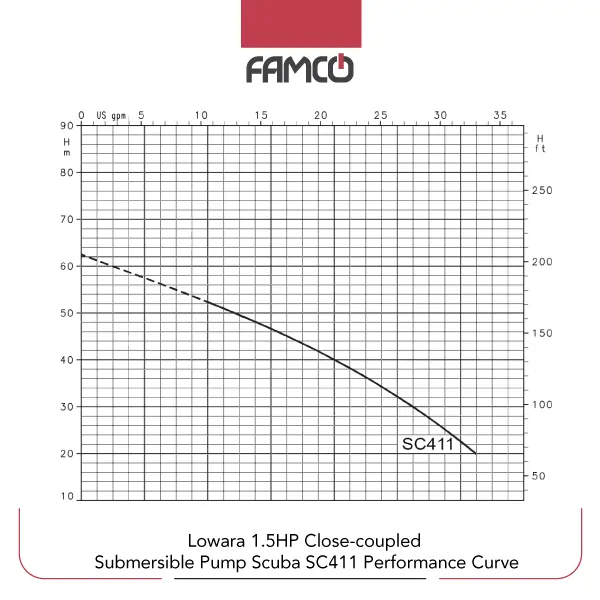

Lowara 1.5HP Close-coupled Submersible Drainage Pump Scuba SC411 Performance Data
| Flow rate (l/min) | 0 | 20 | 30 | 40 | 50 | 60 | 75 | 80 | 100 | 125 |
| Flow rate (m3/h) | 0 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.5 | 4.8 | 6 | 7.5 |
| Head (m) | 75.5 | – | – | 63.4 | 60.0 | 56.4 | 50.6 | 48.5 | 39.3 | 25.4 |

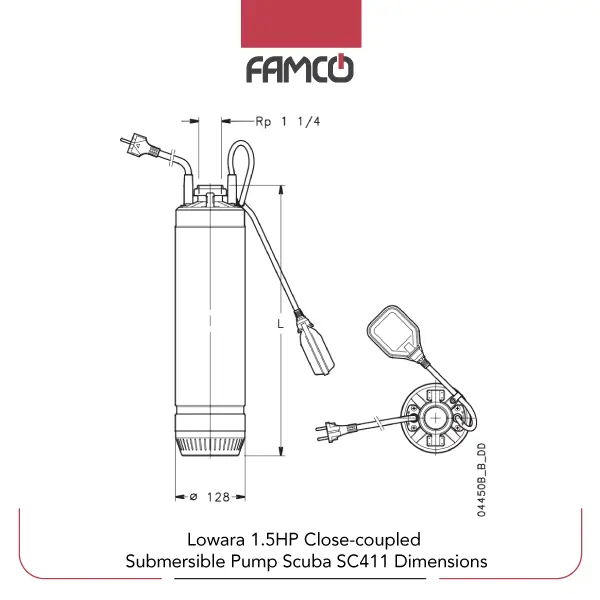

Lowara 1.5HP Close-coupled Submersible Drainage Pump Scuba SC411 Dimensions
| N° Of Stages | Dimensions (L-mm) | Weight (kg) | Cable length (m) |
| 6 | 611 | 17.5 | 20 |
Lowara 1.5HP Close-coupled Submersible Drainage Pump Scuba SC411 Applications
- Water supply systems in residential and commercial buildings
- Irrigation and agricultural watering
- Drainage and sewage management
- Deep well pumping for various industries
Lowara 1.5HP Close-coupled Submersible Drainage Pump Scuba SC411 Benefits
- Flexible installation options for different setups
- High flow rate and strong delivery head for demanding tasks
- Durable technopolymere impeller ensures long-lasting use
- Suitable for liquids up to 40°C with solid passage up to 2.5 mm
Lowara 1.5HP Close-coupled Submersible Drainage Pump Scuba SC411 Price List
| No. | Name | Price |
| 1 | Lowara 1.5HP Close-coupled Submersible Drainage Pump Scuba SC411 Price | Contact us |
