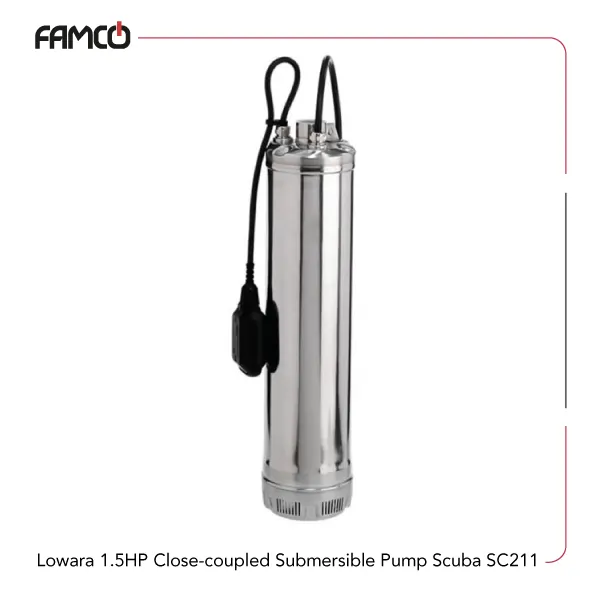

Lowara 1.5HP Close-coupled Submersible Drainage Pump Scuba SC211 Specifications
Lowara 1.5HP close-coupled submersible drainage pump Scuba SC211 features an insulation class F, making it suitable for demanding environments. It can be installed both horizontally and vertically, offering flexible setup options. The pump handles liquids up to 40°C and can operate at a maximum immersion depth of 20 meters. It has a solid passage of up to 2.5 mm, allowing it to process small solids without clogging. The outlet size is 1 1/4 inch, compatible with standard fittings. Equipped with a Technopolymere impeller, this Lowara submersible pump runs at 2850 rpm, providing efficient performance. Weighing 18 kg, it is relatively lightweight for easy installation. The motor power is 1.1 kW (1.5 HP), capable of delivering a maximum flow rate of 75 liters per minute or 4.5 cubic meters per hour. It can generate a maximum delivery head of 77.6 meters, making it suitable for various pumping needs.
Specification | Value |
Insulation class | F |
Installation | Both horizontal and vertical |
Maximum liquid temperature (°C) | 40 |
Maximum immersion depth (m) | 20 |
Solid passage (mm) | 2.5 |
Outlet (inch) | 1 1/4 |
Impeller | Technopolymere |
Speed (rpm) | 2850 |
Power (kW) | 1.1 |
Power (HP) | 1.5 |
Maximum flow rate (l/min) | 75 |
Maximum flow rate (m3/h) | 4.5 |
Maximum delivery head (m) | 77.6 |

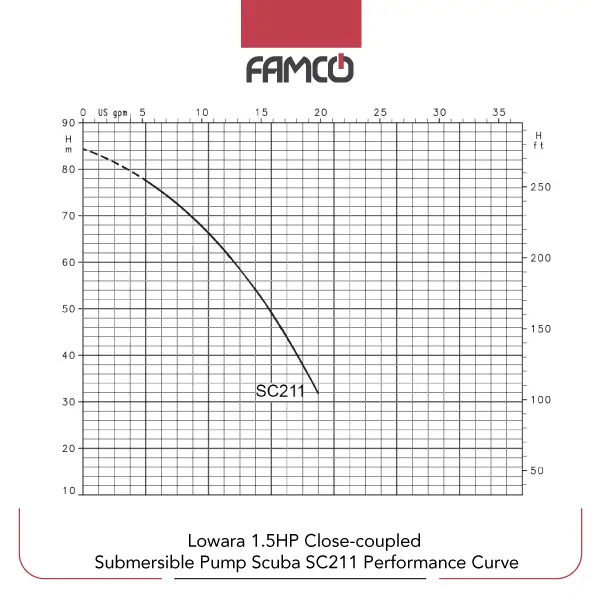

Lowara 1.5HP Close-coupled Submersible Drainage Pump Scuba SC211 Performance Data
Flow rate (l/min) | 0 | 20 | 30 | 40 | 50 | 60 | 75 |
Flow rate (m3/h) | 0 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.5 |
Head (m) | 84.5 | 77.6 | 72.6 | 66.3 | 58.6 | 49.2 | 31.7 |
Lowara 1.5HP Close-coupled Submersible Drainage Pump Scuba SC211 Dimensions
N° Of Stages | Dimensions (L-mm) | Weight (kg) | Cable length (m) |
7 | 636 | 18 | 20 |
Lowara 1.5HP Close-coupled Submersible Drainage Pump Scuba SC211 Applications
- Water transfer in residential and commercial buildings
- Irrigation systems for agriculture
- Industrial fluid handling and processing
- Drainage and sewage management
Lowara 1.5HP Close-coupled Submersible Drainage Pump Scuba SC211 Benefits
- Flexible installation options for convenience
- High performance with a maximum head of 77.6 meters
- Durable construction with a Technopolymere impeller
- Suitable for liquids up to 40°C with small solids passage
Lowara 1.5HP Close-coupled Submersible Drainage Pump Scuba SC211 Price List
No. | Name | Price |
1 | Lowara 1.5HP Close-coupled Submersible Drainage Pump Scuba SC211 Price | Contact us |
