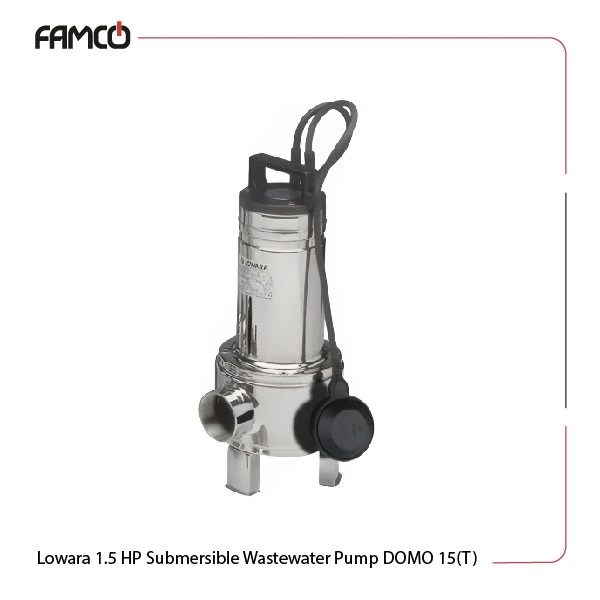

Lowara 1.5 HP Submersible Wastewater Pump DOMO 15(T) Specifications
This pump operates at a maximum liquid temperature of 35°C. The single-phase version has a plug. This Lowara submersible pump withstands harsh conditions with the insulation class of 155°C (F) and a protection degree of IPX8. The maximum immersion depth of 5 meters, considering it is a sewage pump and perfect for deep water operations. The pump operates on a voltage range of 220-240V for single-phase and 220- 240V, 380-415V for three-phase. It also features a stainless steel body and motor casing to provide lasting corrosion resistance for these submersible pumps. The mechanical seal is made of silicon carbide for minimal wear and tear. With a speed of approximately 2850 rpm, this pump efficiently handles solids up to 50 mm in size.
| Specification | Value |
| Maximum liquid temperature | 35°C |
| Single-phase | with plug |
| Three-phase | without plug |
| Insulation class | 155°C (F) |
| Protection degree | IPX8 |
| Maximum immersion depth | 5 m |
| Voltage in single-phase (V) | 220-240V |
| Voltage in three-phase (V) | 220-240V, 380-415V |
| Number of poles | 2 |
| Frequency (Hz) | 50 |
| Max. solids size (mm) | 50 |
| Speed (rpm) | ~2850 |
| Single-phase weight (kg) | 15.3 |
| Three-phase weight (kg) | 13.6 |
| Power (kW) | 1.1 |
| Power (HP) | 1.5 |
| Head (m) | 3.6-12.7 |
Lowara 1.5 HP Submersible Wastewater Pump DOMO 15(T) Materials
- Pump body: Stainless steel
- Motor casing: Stainless steel
- Mechanical seal: Silicon carbide / Silicon carbide / NBR (standard version)
Lowara 1.5 HP Submersible Wastewater Pump DOMO 15(T) Technical Data
| Q (m3/h) | 0 | 100 | 150 | 200 | 250 | 300 | 320 | 400 | 500 | 600 |
| Q (l/min) | 0 | 6 | 9 | 12 | 15 | 18 | 19.2 | 24 | 30 | 36 |
| H (m) | 12.7 | 11.0 | 10.2 | 9.5 | 8.8 | 8.0 | 7.8 | 6.6 | 5.2 | 3.6 |

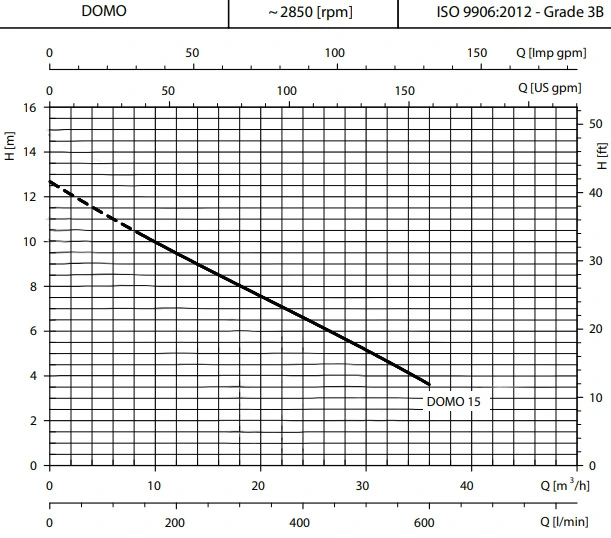

Lowara 1.5 HP Submersible Wastewater Pump DOMO 15(T) Performance Curve
Lowara 1.5 HP Submersible Wastewater Pump DOMO 15(T) Applications
- Drainage of flooded areas
- Irrigation systems for agriculture
- Wastewater management in industrial settings
- Pumping water from deep wells
Lowara 1.5 HP Submersible Wastewater Pump DOMO 15(T) Benefits
- Durable stainless steel construction
- High protection degree for harsh environments
- Efficient operation with solid handling capability
- Versatile applications for various water movement needs
Lowara 1.5 HP Submersible Wastewater Pump DOMO 15(T) Price List
| No. | Name | Price |
| 1 | Lowara 1.5 HP Submersible Wastewater Pump DOMO 15(T) Price | Contact us |
