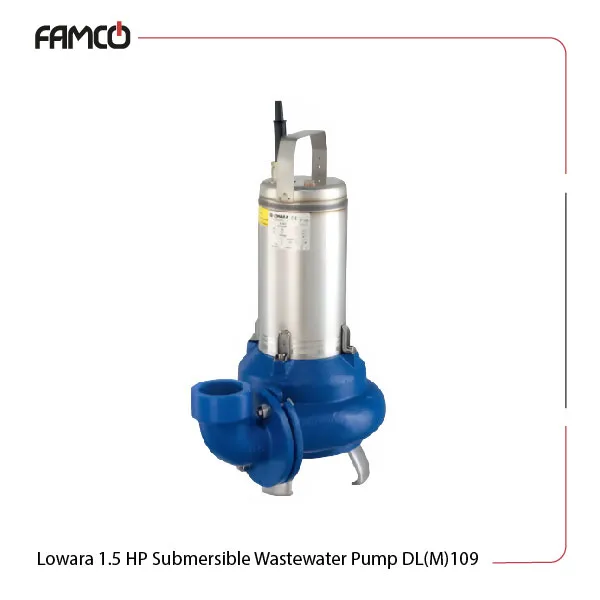

Lowara 1.5 HP Submersible Wastewater Pump DL(M)109 Specifications
This sewage pump is famous for efficient operation in various conditions. It can handle a maximum liquid temperature of 50°C when fully submerged and 25°C when partially submerged. The mechanical seal features a sand labyrinth design, ensuring durability. Lubrication is maintained through an oil bath, which enhances performance. This Lowara submersible pump operates in single-phase mode with a plug and in three-phase mode without a plug. It has an insulation class of 155°C (F) and a protection degree of IPX8, allowing for safe operation in wet environments. The maximum immersion depth is 5 meters, and it can manage suspended solids up to 50 mm in size. The single-phase voltage ranges from 220-240V, while the three-phase voltage is 220-240V and 380-415V, with a frequency of 50 Hz.
These Lowara sewage pumps feature two poles and include thermal overload protection in the single-phase version. Constructed from cast iron for the body and stainless steel for the motor casing, it also has a mechanical seal made of carbon, ceramic alumina, and NBR. The power output is 1.1 kW (1.5 HP), with a head range of 5.4 to 18.3 meters.
| Specification | Value |
| Maximum liquid temperature | 50°C with fully submerged pump, 25°C with partially submerged pump |
| Lubrification | oil bath |
| Operation mode in single-phase | with plug |
| Operation mode in three-phase | without plug |
| Insulation class | 155°C (F) |
| Protection degree | IPX8 |
| Maximum immersion depth | 5 m |
| Maximum dimension of suspended solids (mm) | 50 |
| Single-phase Voltage (V) | 220-240 |
| Three-phase voltage (V) | 220-240, 380-415 |
| Frequency (Hz) | 50 |
| Number of poles | 2 |
| Single-phase version includes | thermal overload protection |
| Power (kW) | 1.1 |
| Power (HP) | 1.5 |
| H (m) | 5.4-18.3 |
Lowara 1.5 HP Submersible Wastewater Pump DL(M)109 Materials
- Mechanical seal: Carbon / Ceramic Alumina / NBR (standard version)
- Pump body: Cast iron
- Motor casing: Stainless steel
Lowara 1.5 HP Submersible Wastewater Pump DL(M)109 Technical Data
| M3/h | 0 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
| l/min | 0 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 27 | 30 | 36 |
| Head (m) | 18.3 | 15.4 | 14.2 | 13.1 | 12.0 | 11.0 | 10.1 | 9.2 | 8.2 | 7.3 | 5.4 |

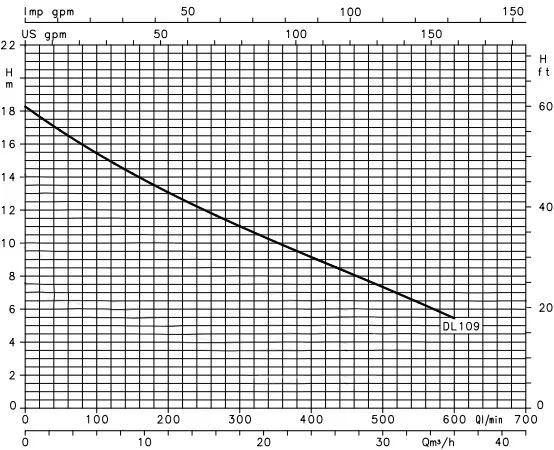

Lowara 1.5 HP Submersible Wastewater Pump DL(M)109 Performance Curve
Lowara 1.5 HP Submersible Wastewater Pump DL(M)109 Applications
- Wastewater management
- Irrigation systems
- Fluid transfer in industrial settings
- Drainage in construction sites
Lowara 1.5 HP Submersible Wastewater Pump DL(M)109 Benefits
- High efficiency in various conditions
- Durable construction with cast iron and stainless steel
- Ability to handle suspended solids up to 50 mm
- Thermal overload protection for safety
Lowara 1.5 HP Submersible Wastewater Pump DL(M)109 Price List
| No. | Name | Price |
| 1 | Lowara 1.5 HP Submersible Wastewater Pump DL(M)109 Price | Contact us |
