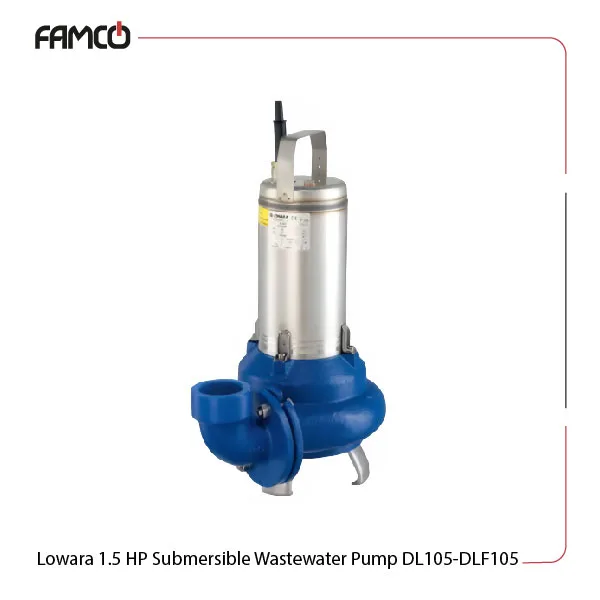

Lowara 1.5 HP Submersible Wastewater Pump DL105-DLF105 Specifications
This pump is designed for efficient operation in various conditions. It can handle a maximum liquid temperature of 50°C when fully submerged and 25°C when partially submerged. The mechanical seal features a sand labyrinth design, ensuring durability. Lubrication is provided through an oil bath, enhancing performance. This Lowara sewage pump operates in three-phase mode and has an insulation class of 155°C (F) and a protection degree of IPX8, allowing for a maximum immersion depth of 5 meters. It can manage suspended solids up to 45 mm in size. Operating at a frequency of 50 Hz, it has two poles and supports voltages of 220- 240V/380-415V in the three-phase configuration. Constructed with a cast iron pump body and stainless steel motor casing, this series of submersible pumps features a mechanical seal made of carbon, ceramic alumina, and NBR.
| Specification | Value |
| Maximum liquid temperature | 50°C with fully submerged pump. 25°C with partially submerged pump |
| Lubrification | oil bath |
| Operation mode in three-phase | without plug |
| Insulation class | 155°C (F) |
| Protection degree | IPX8 |
| Maximum immersion depth | 5 m |
| Maximum dimension of suspended solids (mm) | 45 |
| Frequency (Hz) | 50 |
| Number of poles | 2 |
| Three-phase Voltage | 220-240V/380-415V |
| Power (kW) | 1.1 |
| Power (HP) | 1.5 |
| Head (m) | 5.2-14.1 |
Lowara 1.5 HP Submersible Wastewater Pump DL105-DLF105 Materials
- Mechanical seal: Carbon / Ceramic Alumina / NBR (standard version)
- Pump body: Cast iron
- Motor casing: Stainless steel
Lowara 1.5 HP Submersible Wastewater Pump DL105-DLF105 Technical Data
| M3/h | 0 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 |
| l/min | 0 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 27 | 30 |
| Head (m) | 14.1 | 11.6 | 10.6 | 9.7 | 8.9 | 8.1 | 7.4 | 6.7 | 5.9 | 5.2 |

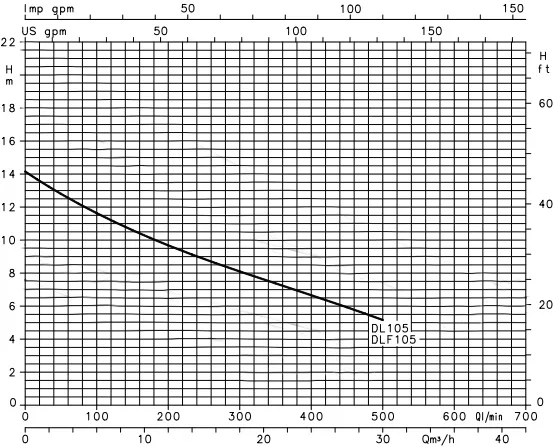

Lowara 1.5 HP Submersible Wastewater Pump DL105-DLF105 Performance Curve
Lowara 1.5 HP Submersible Wastewater Pump DL105-DLF105 Applications
- Sewage management
- Emptying of sumps
- Septic tanks
- Draining of flooded excavations
Lowara 1.5 HP Submersible Wastewater Pump DL105-DLF105 Benefits
- Durable construction with cast iron and stainless steel
- Efficient operation in various liquid temperatures
- Handles suspended solids up to 45 mm
- Thermal overload protection for safety
Lowara 1.5 HP Submersible Wastewater Pump DL105-DLF105 Price List
| No. | Name | Price |
| 1 | Lowara 1.5 HP Submersible Wastewater Pump DL105-DLF105 Price | Contact us |
