Lowara 1.2HP Close-coupled Submersible Drainage Pump Scuba SC409 Specifications
Lowara 1.2HP close-coupled submersible drainage pump Scuba SC409 features an insulation class of F, ensuring good thermal resistance. It can be installed both horizontally and vertically, offering flexible setup options. The device handles liquids up to 40°C and can operate at a maximum immersion depth of 20 meters. Its solid passage is up to 2.5 mm, suitable for various liquids with small solids. The outlet size is 1 1/4 inch, compatible with standard fittings. Equipped with a Technopolymere impeller, this Lowara submersible pump runs at 2850 rpm, providing reliable performance. Weighing 15.5 kg, it consumes 0.9 kW (1.2 HP) of power. The pump can deliver a maximum flow rate of 125 liters per minute, equivalent to 7.5 cubic meters per hour, with a maximum head of 52.3 meters, making it suitable for many applications requiring high flow and pressure.
| Specification | Value |
| Insulation class | F |
| Installation | Both horizontal and vertical |
| Maximum liquid temperature (°C) | 40 |
| Maximum immersion depth (m) | 20 |
| Solid passage (mm) | 2.5 |
| Outlet (inch) | 1 1/4 |
| Impeller | Technopolymere |
| Speed (rpm) | 2850 |
| Power (kW) | 0.9 |
| Power (HP) | 1.2 |
| Maximum flow rate (l/min) | 125 |
| Maximum flow rate (m3/h) | 7.5 |
| Maximum delivery head (m) | 52.3 |

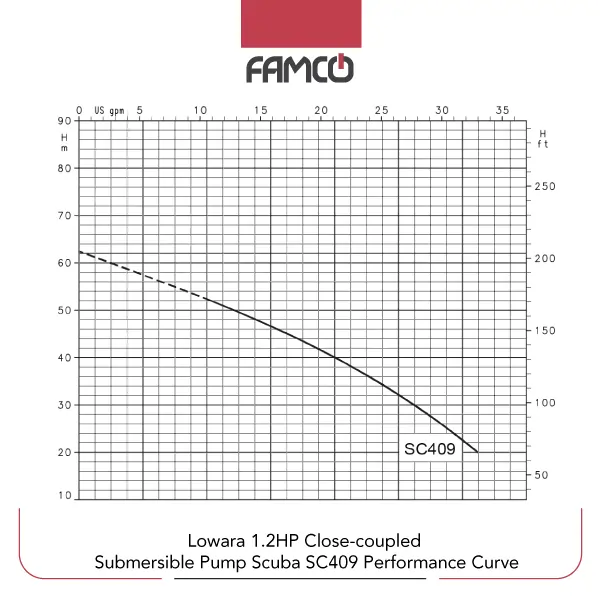

Lowara 1.2HP Close-coupled Submersible Drainage Pump Scuba SC409 Performance Curve
| Flow rate (l/min) | 0 | 20 | 30 | 40 | 50 | 60 | 75 | 80 | 100 | 125 |
| Flow rate (m3/h) | 0 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.5 | 4.8 | 6 | 7.5 |
| Head (m) | 62.5 | – | – | 52.3 | 49.6 | 46.7 | 41.8 | 40.1 | 32.2 | 19.9 |
Lowara 1.2HP Close-coupled Submersible Drainage Pump Scuba SC409 Dimensions
| N° Of Stages | Dimensions (L-mm) | Weight (kg) | Cable length (m) |
| 5 | 566 | 15.5 | 20 |
Lowara 1.2HP Close-coupled Submersible Drainage Pump Scuba SC409 Applications
- Water supply systems
- Irrigation and agricultural use
- Drainage and sewage management
- Industrial fluid transfer
Lowara 1.2HP Close-coupled Submersible Drainage Pump Scuba SC409 Benefits
- Flexible installation options for convenience
- High flow rate and pressure capabilities
- Durable construction with reliable performance
- Suitable for liquids up to 40°C and small solids
Lowara 1.2HP Close-coupled Submersible Drainage Pump Scuba SC409 Price List
| No. | Name | Price |
| 1 | Lowara 1.2HP Close-coupled Submersible Drainage Pump Scuba SC409 Price | Contact us |
