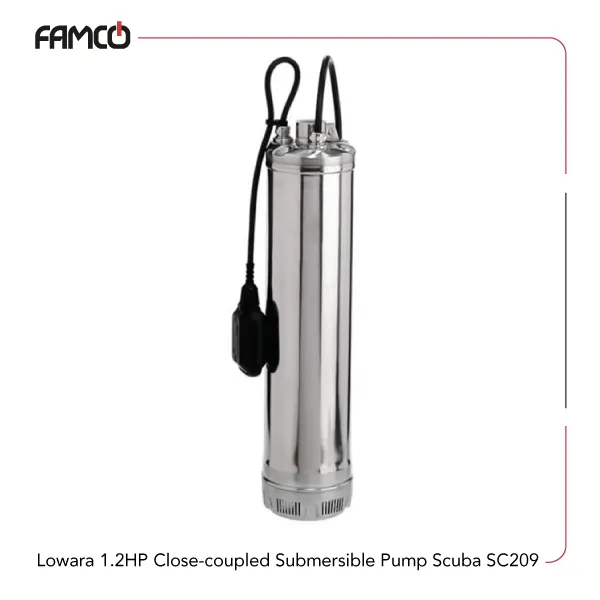

Lowara 1.2HP Close-coupled Submersible Drainage Pump Scuba SC209 Specifications
Lowara 1.2HP close-coupled submersible pump features an insulation class of F, ensuring safety and durability under various conditions. It can be installed both horizontally and vertically, offering flexible setup options. The device is suitable for liquids up to 40°C and can operate at a maximum immersion depth of 20 meters. Its solid passage size is up to 2.5 mm, allowing it to handle small solids without clogging. The outlet size is 1 1/4 inch, compatible with standard fittings. Equipped with a Technopolymere impeller, this Lowara submersible pump operates at 2850 rpm, providing efficient performance. The pump weighs 16 kg, making it relatively lightweight for easy handling. It consumes 0.9 kW (1.2 HP) of power, delivering a maximum flow rate of 75 liters per minute or 4.5 cubic meters per hour. The maximum delivery head reaches 66.3 meters, making it suitable for various lifting and transfer applications.
| Specification | Value |
| Insulation class | F |
| Installation | Both horizontal and vertical |
| Maximum liquid temperature (°C) | 40 |
| Maximum immersion depth (m) | 20 |
| Solid passage (mm) | 2.5 |
| Outlet (inch) | 1 1/4 |
| Impeller | Technopolymere |
| Speed (rpm) | 2850 |
| Power (kW) | 0.9 |
| Power (HP) | 1.2 |
| Maximum flow rate (l/min) | 75 |
| Maximum flow rate (m3/h) | 4.5 |
| Maximum delivery head (m) | 66.3 |

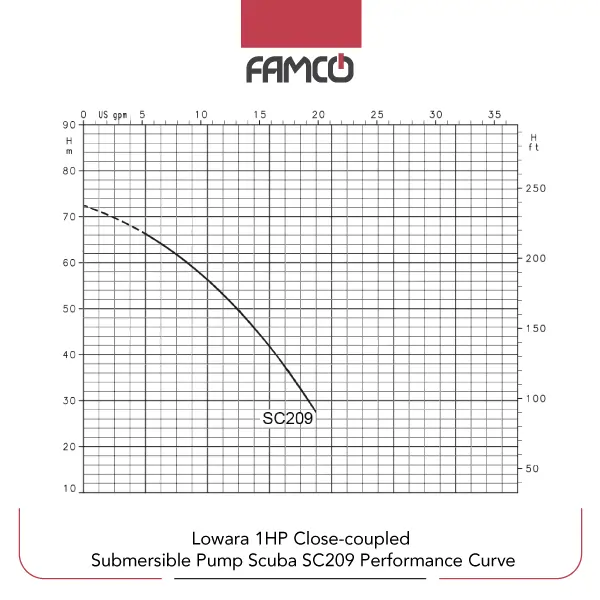

Lowara 1.2HP Close-coupled Submersible Drainage Pump Scuba SC209 Performance Data
| Flow rate (l/min) | 0 | 20 | 30 | 40 | 50 | 60 | 75 |
| Flow rate (m3/h) | 0 | 1.2 | 1.8 | 2.4 | 3 | 3.6 | 4.5 |
| Head (m) | 72.4 | 66.3 | 61.8 | 56.3 | 49.6 | 41.8 | 27.4 |

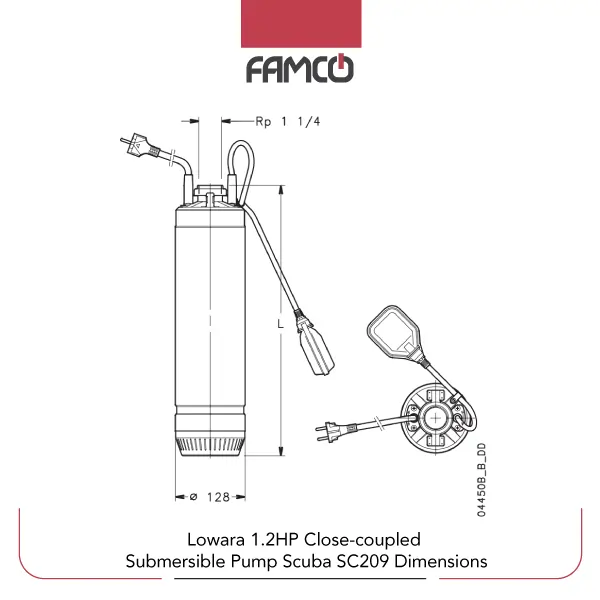

Lowara 1.2HP Close-coupled Submersible Drainage Pump Scuba SC209 Dimensions
| N° Of Stages | Dimensions (L-mm) | Weight (kg) | Cable length (m) |
| 6 | 591 | 16 | 20 |
Lowara 1.2HP Close-coupled Submersible Drainage Pump Scuba SC209 Applications
- Water transfer in residential and commercial buildings
- Drainage and sewage systems
- Irrigation and agricultural use
- Industrial fluid circulation
Lowara 1.2HP Close-coupled Submersible Drainage Pump Scuba SC209 Benefits
- Flexible installation options for horizontal and vertical setups
- High performance with a maximum head of 66.3 meters
- Durable construction with insulation class F
- Lightweight and easy to handle for quick setup and maintenance
Lowara 1.2HP Close-coupled Submersible Drainage Pump Scuba SC209 Price List
| No. | Name | Price |
| 1 | Lowara 1.2HP Close-coupled Submersible Drainage Pump Scuba SC209 Price | Contact us |
