Lowara 0.8 HP Submersible Wastewater Pump DL(M)90-DLF(M) Specifications
This pump is designed for efficient operation in various conditions. This Lowara submersible pump handles a maximum liquid temperature of 50°C when fully submerged and 25°C when partially submerged. The mechanical seal features a genius sand labyrinth design. Lubrication is maintained through an oil bath, enhancing performance. The pump operates in single-phase mode with a plug and in three-phase mode without a plug. This drainage pump has an insulation class of 155°C (F) and has a protection degree of IPX8, allowing for a maximum immersion depth of 5 meters. IThe pump body is made of cast iron, and the motor casing is stainless steel, which gives it strength and resistance against corrosion. The mechanical seal consists of carbon, ceramic alumina, and NBR in the standard version. The power rating is set at 0.6 kW (0.8 HP), with a head range of 3.5 to 9.7 meters.
| Specification | Value |
| Maximum liquid temperature | 50°C with fully submerged pump, 25°C with partially submerged pump |
| Lubrification | oil bath |
| Operation mode in single-phase | with plug |
| Operation mode in three-phase | without plug |
| Insulation class | 155°C (F) |
| Protection degree | IPX8 |
| Maximum immersion depth | 5 m |
| Maximum dimension of suspended solids (mm) | 45 |
| Single-phase Voltage | 220-240V |
| Three-phase Voltage | 220-240V/380-415V |
| Frequency (Hz) | 50 |
| Number of Poles | 2 |
| Single-phase version includes | thermal overload protection |
| Power (kW) | 0.6 |
| Power (HP) | 0.8 |
| H (m) | 3.5-9.7 |
Lowara 0.8 HP Submersible Wastewater Pump DL(M)90-DLF(M) Materials
- Mechanical seal: Carbon / Ceramic Alumina / NBR (standard version)
- Pump body: Cast iron
- Motor casing: Stainless steel
Lowara 0.8 HP Submersible Wastewater Pump DL(M)90-DLF(M) Technical Data
| M3/h | 0 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | 450 |
| l/min | 0 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | 27 |
| Head (m) | 9.7 | 7.8 | 7.0 | 6.4 | 5.8 | 5.3 | 4.7 | 4.1 | 3.5 |

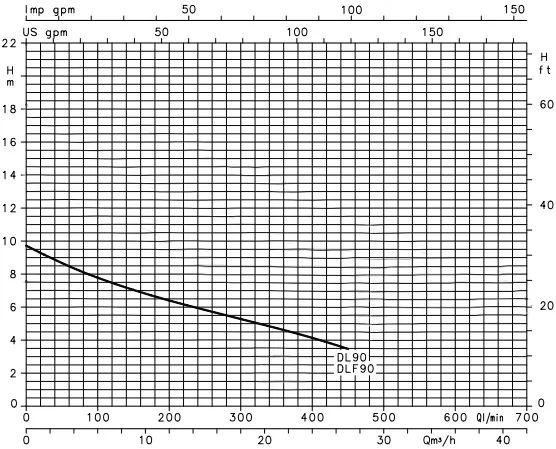

Lowara 0.8 HP Submersible Wastewater Pump DL(M)90-DLF(M) Performance Curve
Lowara 0.8 HP Submersible Wastewater Pump DL(M)90-DLF(M) Applications
- Sewage management
- Emptying of sumps
- Septic tank discharge
- Draining flooded excavations
Lowara 0.8 HP Submersible Wastewater Pump DL(M)90-DLF(M) Benefits
- Durable construction with cast iron and stainless steel
- High efficiency in various liquid temperatures
- Effective handling of suspended solids
- Versatile operation modes for different applications
Lowara 0.8 HP Submersible Wastewater Pump DL(M)90-DLF(M) Price List
| No. | Name | Price |
| 1 | Lowara 0.8 HP Submersible Wastewater Pump DL(M)90-DLF(M) Price | Contact us |
