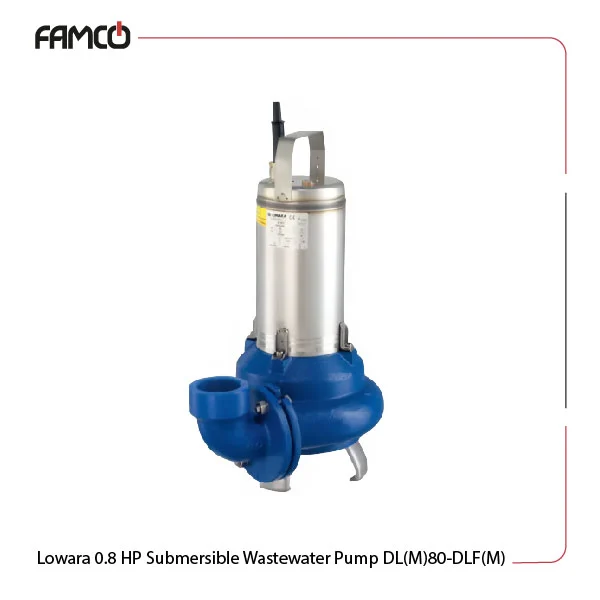

Lowara 0.8 HP Submersible Wastewater Pump DL(M)80-DLF(M) Specifications
This pump is designed for various applications while tolerating a maximum liquid temperature of 50°C when fully submerged and 25°C when partially submerged. This Lowara submersible pump utilizes a strong mechanical seal and operates with an oil bath lubrication system. The insulation class of 155°C (F) and an IPX8 protection degree enable this product to handle a maximum immersion depth of 5 meters. As a top-ranked wastewater pump, it is required to handle solids. So, it can manage suspended solids up to 45 mm in size. It also operates on a single-phase voltage of 220-240V and a frequency of 50 Hz, with a speed of 2850 rpm.
The three-phase version supports voltages of 220- 240V, 50Hz, and 380-415V. The pump body is made of cast iron, while the motor casing is stainless steel, so it can offer the best performance as a sewage pump of this sort. It has a power output of 0.6 kW (0.8 HP) and can operate efficiently at a head of 3-7.6 meters.
| Specification | Value | |
| Maximum liquid temperature | 50°C with fully submerged pump, 25°C with partially submerged pump | |
| Lubrification | oil bath | |
| Operation mode | single-phase | with plug |
| three-phase | without plug | |
| Insulation class | 155°C (F) | |
| Protection degree | IPX8 | |
| Maximum immersion depth | 5 m | |
| Maximum dimension of suspended solids (mm) | 45 | |
| Frequency (Hz) | 50 | |
| Number of poles | 2 | |
| Voltage | Single-phase | 220-240V |
| Three-phase | 220-240V, 380-415V | |
| Single-phase version includes | thermal overload protection | |
| Power (kW) | 0.6 | |
| Power (HP) | 0.8 | |
| Head (m) | 3-7.6 | |
Lowara 0.8 HP Submersible Wastewater Pump DL(M)80-DLF(M) Materials
- Pump body: Cast iron
- Motor casing: Stainless steel
- Mechanical seal (standard version): Carbon / Ceramic Alumina / NBR
Lowara 0.8 HP Submersible Wastewater Pump DL(M)80-DLF(M) Technical Data
| M3/h | 0 | 100 | 150 | 200 | 250 | 300 | 350 |
| l/min | 0 | 6 | 9 | 12 | 15 | 18 | 21 |
| Head (m) | 7.6 | 5.9 | 5.3 | 4.7 | 4.1 | 3.6 | 3.0 |

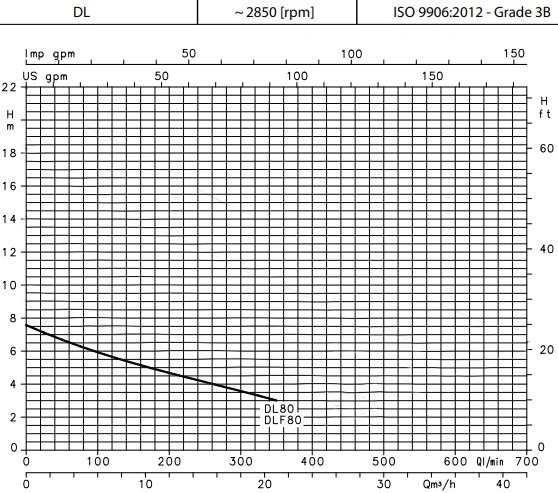

Lowara 0.8 HP Submersible Wastewater Pump DL(M)80-DLF(M) Performance Curve
Lowara 0.8 HP Submersible Wastewater Pump DL(M)80-DLF(M) Applications
- Sewage management
- Emptying of sumps
- Septic tanks and wastewater discharge
- Draining flooded excavations and marshy ground
Lowara 0.8 HP Submersible Wastewater Pump DL(M)80-DLF(M) Benefits
- Durable cast iron and stainless steel construction
- High efficiency with a maximum immersion depth of 5 m
- Handles suspended solids up to 45 mm
- Thermal overload protection in single-phase version
Lowara 0.8 HP Submersible Wastewater Pump DL(M)80-DLF(M) Price List
| No. | Name | Price |
| 1 | Lowara 0.8 HP Submersible Wastewater Pump DL(M)80-DLF(M) Price | Contact us |
