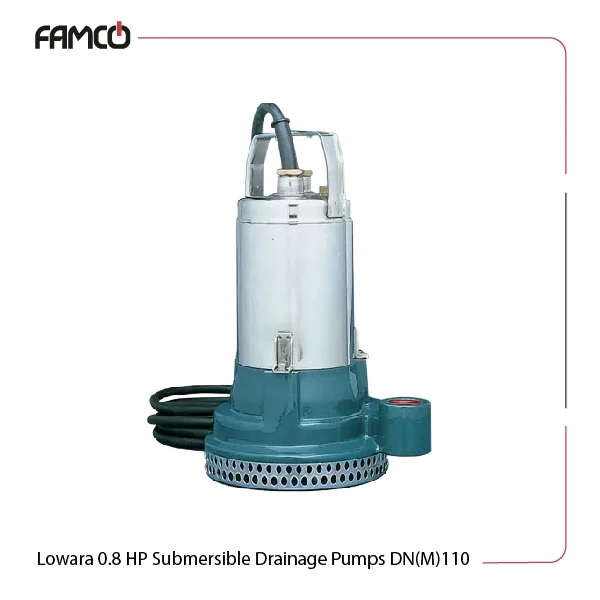

Lowara 0.8 HP Submersible Drainage Pumps DN(M)110 Specifications
This top-ranked pump operates efficiently at a maximum liquid temperature of 50°C when fully submerged and 25°C when partially submerged. It can handle solids up to 5mm in size, which is required, considering it is a drainage pump handling mixed liquids. The device supports both single-phase and three-phase power supplies, with a voltage range of 220-240V and 380-415V respectively. It also features a two-pole motor running at 50Hz, with an insulation class rated at 155°C (F). The pump has an IPX8 protection rating, which is necessary for it to be fully submerged up to 5 meters. This line of submersible pumps delivers a maximum flow rate of 12.6 cubic meters per hour and a head height ranging from 4.5 to 11.5 meters. Weighing 18.5 kg, the pump is built with a durable cast iron body, equipped with a steel impeller combined with Nitrile Rubber XNBR for enhanced performance.
| Specification | Value | |
| Max. liquid temperature (°C) | fully submerged pump, with | 50 |
| partially submerged pump | 25 | |
| Max. solids size (mm) | 5 | |
| voltage | Single-phase | 220-240V with plug |
| Three-phase | 220-240V, 380-415V without plug | |
| Number of poles | 2 | |
| Frequency (Hz) | 50 | |
| Insulation class | 155°C (F) | |
| IPX8 protection | Yes | |
| Maximum immersion depth | 5 m | |
| Power (kW) | 0.6 | |
| Power (HP) | 0.8 | |
| Head (m) | 4.5-11.5 | |
| Max. flow rate (m3/h) | 12.6 | |
| Weight (kg) | 18.5 | |
Lowara 0.8 HP Submersible Drainage Pumps DN(M)110 Materials
- Mechanical seal: Carbon / Ceramic Alumina / NBR (standard version)
- Pump body: Cast iron
- Impeller: Steel + Nitrile Rubber XNBR
Lowara 0.8 HP Submersible Drainage Pumps DN(M)110 Technical Data
| l/min | 0 | 25 | 50 | 75 | 100 | 125 | 150 | 175 | 210 |
| m3 /h | 0 | 1.5 | 3 | 4.5 | 6 | 7.5 | 9 | 10.5 | 12.6 |
| H (m) | 11.5 | 11.0 | 10.4 | 9.8 | 9.1 | 8.3 | 7.3 | 6.3 | 4.5 |

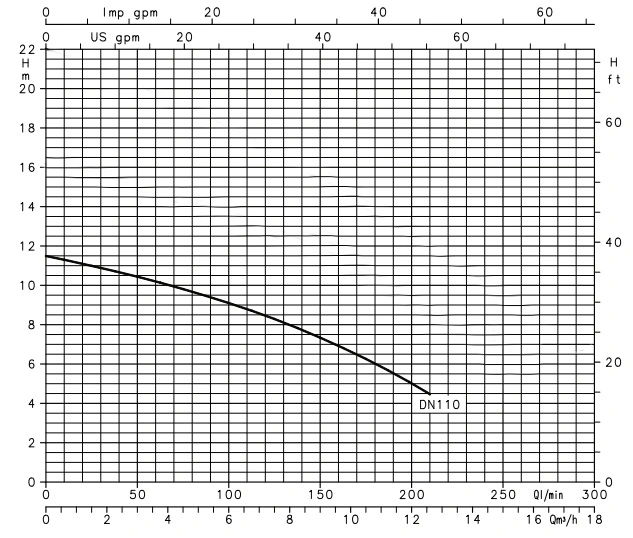

Lowara 0.8 HP Submersible Drainage Pumps DN(M)110 Performance Curve
Lowara 0.8 HP Submersible Drainage Pumps DN(M)110 Applications
- Wastewater and sewage pumping
- Drainage in construction sites
- Industrial liquid transfer
- Flood control and water removal
Lowara 0.8 HP Submersible Drainage Pumps DN(M)110 Benefits
- High durability with cast iron body
- Handles solids up to 5mm efficiently
- Supports various power configurations
- Fully protected for submerged use
Lowara 0.8 HP Submersible Drainage Pumps DN(M)110 Price List
| No. | Name | Price |
| 1 | Lowara 0.8 HP Submersible Drainage Pumps DN(M)110 Price | Contact us |
