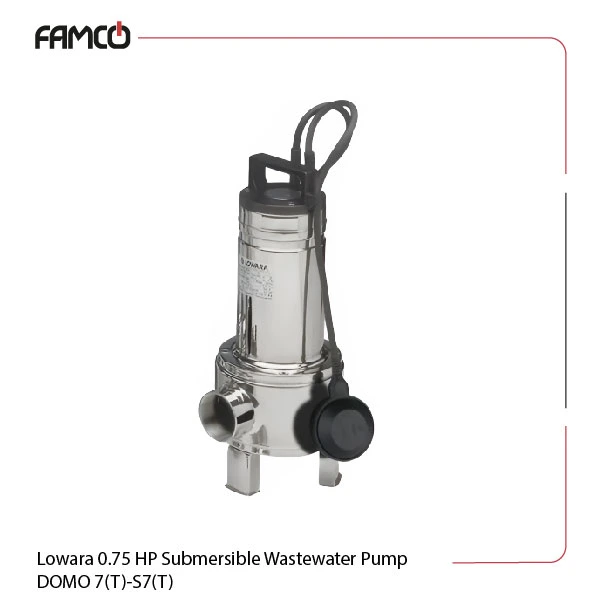

Lowara 0.75 HP Submersible Wastewater Pump DOMO 7(T)-S7(T) Specifications
Weighing 10.2 kg for the single-phase model and 8.9 kg for the three-phase model, this pump has a power output of 0.55 kW (0.75 HP) and a head range of 2.1 to 10.7 meters. This Lowara pump operates at a maximum liquid temperature of 35°C. The single-phase version comes with a plug. The insulation class of 155°C (F) and a protection degree of IPX8 help it withstand harsh conditions. This submersible pump can be immersed up to 5 meters deep. It also operates on voltages of 220- 240V for single-phase and 220- 240V, 380-415V for three-phase versions. This product features a solid stainless steel body and motor casing. The impeller is made from fiberglass-reinforced technopolymer with excellent performance for these sewage pumps in submerged conditions. It can handle solids up to 35 mm in size and operates at a speed of approximately 2850 rpm.
| Specification | Value |
| Maximum liquid temperature | 35°C |
| Single-phase | with plug |
| Three-phase | without plug |
| Insulation class | 155°C (F) |
| Protection degree | IPX8 |
| Maximum immersion depth | 5 m |
| Voltage in single-phase (V) | 220-240V |
| Voltage in three-phase (V) | 220-240V, 380-415V |
| Number of poles | 2 |
| Frequency (Hz) | 50 |
| Max. solids size (mm) | 35 |
| Speed (rpm) | ~2850 |
| Single-phase weight (kg) | 10.2 |
| Three-phase weight (kg) | 8.9 |
| Power (kW) | 0.55 |
| Power (HP) | 0.75 |
| Head (m) | 2.1-10.7 |
Lowara 0.75 HP Submersible Wastewater Pump DOMO 7(T)-S7(T) Materials
- Pump body: Stainless steel
- Impeller: fiberglass-silic
- Motor casing: Stainless steel
- Mechanical seal: Silicon carbide / Silicon carbide / NBR (standard version)
Lowara 0.75 HP Submersible Wastewater Pump DOMO 7(T)-S7(T) Applications
- Irrigation systems for agriculture
- Drainage in construction sites
- Industrial wastewater management
- Aquaculture and fish farming
Lowara 0.75 HP Submersible Wastewater Pump DOMO 7(T)-S7(T) Technical Data
| Q (m3/h) | 0 | 100 | 150 | 200 | 250 | 300 | 320 |
| Q (l/min) | 0 | 6 | 9 | 12 | 15 | 18 | 19.2 |
| H (m) | 10.7 | 7.5 | 6.3 | 5.2 | 4.1 | 2.7 | 2.1 |

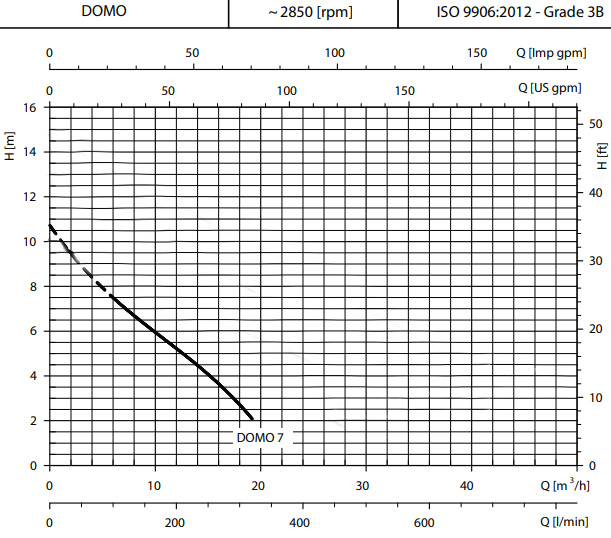

Lowara 0.75 HP Submersible Wastewater Pump DOMO 7(T)-S7(T) Performance Curve
Lowara 0.75 HP Submersible Wastewater Pump DOMO 7(T)-S7(T) Benefits
- Durable stainless steel construction
- High efficiency with low power consumption
- Versatile for various applications
- Easy installation and maintenance
Lowara 0.75 HP Submersible Wastewater Pump DOMO 7(T)-S7(T) Price List
| No. | Name | Price |
| 1 | Lowara 0.75 HP Submersible Wastewater Pump DOMO 7(T)-S7(T) Price | Contact us |
There are no reviews yet.
