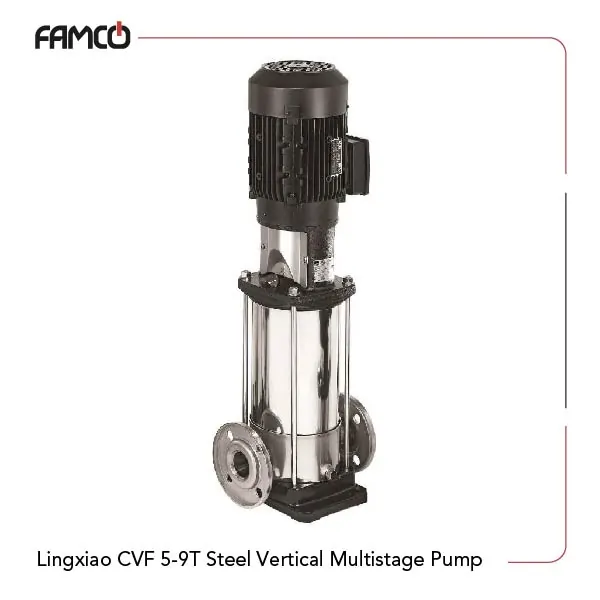

Lingxiao CVF 5-9T Steel Vertical Multistage Pump Specifications
This pump has a maximum flow rate of 8 and can handle a maximum head of 56. The optimal operating height of this Lingxiao multistage pump is 45 meters, reaching out to most destinations. Adding to the product’s ease of convenience, the power output of 1.5 kW (2 HP) has enabled this pump to operate on a three-phase mode at a frequency of 50 Hz and a voltage of 380 V. The motor housing is made from a combination of cast iron and aluminum to give it strength in the face of corrosive factors. The pump housing, impeller, diffuser, and shaft are all crafted from stainless steel with excellent resistance to degradation. This pump handles liquids at different temperatures ranging from -40 to +180° C.
| Specification | Value |
| Brand | Lingxiao |
| Model | CVF5-9T |
| Max. flow rate (m³/h) | 8 |
| Max. head (m) | 56 |
| Optimal Operating Height (m) | 45 |
| Power (kW) | 1.5 |
| Power (HP) | 2 |
| Motor housing | Cast iron/Aluminum |
| Pump housing | Stainless Steel |
| Impeller | Stainless Steel |
| Diffuser | Stainless Steel |
| Shaft | Stainless Steel |
| Liquid temperature range | -40 to +180° C |
| Number of phases | Three-Phase |
| Frequency | 50 Hz |
| Voltage | 380 (V) |
Lingxiao CVF 5-9T Steel Vertical Multistage Pump Applications
- Industrial liquid transfer
- Agricultural irrigation systems
- Cooling systems in manufacturing
- Water supply for commercial buildings
Lingxiao CVF 5-9T Steel Vertical Multistage Pump Benefits
- High efficiency with a maximum flow rate of 8
- Durable stainless steel construction for longevity
- Wide temperature range (-40 to +180° C) for versatility
- Powerful three-phase motor for heavy-duty applications
Lingxiao CVF 5-9T Steel Vertical Multistage Pump Price List
| No. | Name | Price |
| 1 | Lingxiao CVF 5-9T Steel Vertical Multistage Pump Price | Contact us |
