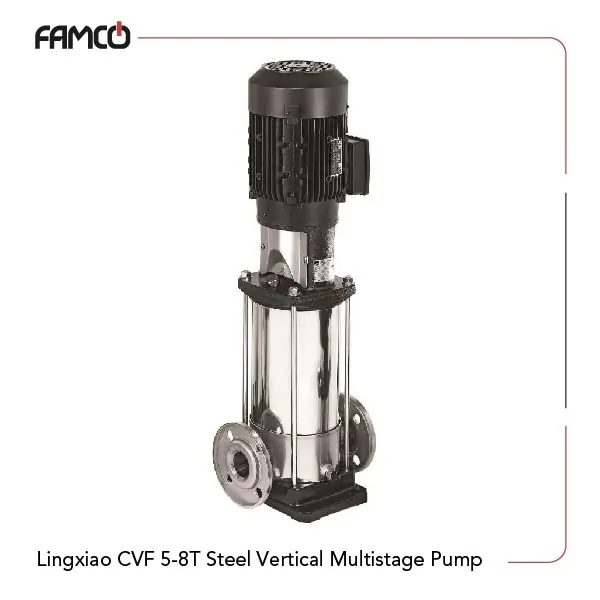

Lingxiao CVF 5-8T Steel Vertical Multistage Pump Specifications
This pump features a maximum flow rate of 8 and a maximum head of 49. This Lingxiao multistage pump operates optimally at a height of 40 meters. The power output is 1.1 kW or 1.5 HP for an efficient performance. The motor housing is constructed from durable materials, a combination of cast iron and aluminum. The pump housing, impeller, diffuser, and shaft are all made from stainless steel, keeping it resistant to corrosion and wear. It can handle liquid temperatures ranging from -40 to +180° C so it is integrated into most setups. This pump operates on a three-phase mode with a frequency of 50 Hz and requires a voltage of 380 V.
| Specification | Value |
| Brand | Lingxiao |
| Model | CVF5-8T |
| Max. flow rate (m³/h) | 8 |
| Max. head (m) | 49 |
| Optimal Operating Height (m) | 40 |
| Power (kW) | 1.1 |
| Power (HP) | 1.5 |
| Motor housing | Cast iron/Aluminum |
| Pump housing | Stainless Steel |
| Impeller | Stainless Steel |
| Diffuser | Stainless Steel |
| Shaft | Stainless Steel |
| Liquid temperature range | -40 to +180° C |
| Number of phases | Three-Phase |
| Frequency | 50 Hz |
| Voltage | 380 (V) |
Lingxiao CVF 5-8T Steel Vertical Multistage Pump Applications
- Industrial liquid transfer
- Agricultural irrigation systems
- Cooling systems in manufacturing
- Water supply in commercial buildings
Lingxiao CVF 5-8T Steel Vertical Multistage Pump Benefits
- Durable stainless steel construction
- High efficiency with low energy consumption
- Wide temperature range compatibility
- Reliable performance in various applications
Lingxiao CVF 5-8T Steel Vertical Multistage Pump Price List
| No. | Name | Price |
| 1 | Lingxiao CVF 5-8T Steel Vertical Multistage Pump Price | Contact us |
