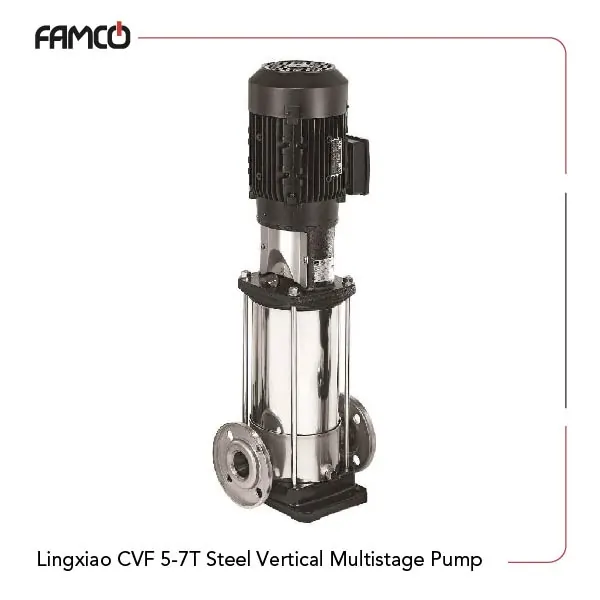

Lingxiao CVF 5-7T Steel Vertical Multistage Pump Specifications
This product is durable and high-performing. This Lingxiao multistage pump has a maximum flow rate of 8 and a maximum head of 43. The optimal operating height is 35 meters, for effective performance in different settings. A power output of 1.1 kW (1.5 HP) helps it reach consistency in operation. The motor housing is made from a combination of cast iron and aluminum to enhance its strength and longevity. The pump housing, impeller, diffuser, and shaft are all crafted from stainless steel to make it resistant to corrosion and wear. This pump handles liquid temperatures ranging from -40 to +180° C to include more applications. This sturdy pump operates on a three-phase mode with a frequency of 50 Hz and requires a voltage of 380 V.
| Specification | Value |
| Brand | Lingxiao |
| Model | CVF5-7T |
| Max. flow rate (m³/h) | 8 |
| Max. head (m) | 43 |
| Optimal Operating Height (m) | 35 |
| Power (kW) | 1.1 |
| Power (HP) | 1.5 |
| Motor housing | Cast iron/Aluminum |
| Pump housing | Stainless Steel |
| Impeller | Stainless Steel |
| Diffuser | Stainless Steel |
| Shaft | Stainless Steel |
| Liquid temperature range | -40 to +180° C |
| Mode | Three-Phase |
| Frequency | 50 Hz |
| Voltage | 380 (V) |
Lingxiao CVF 5-7T Steel Vertical Multistage Pump Applications
- Industrial fluid transfer
- Water supply systems
- Chemical processing
- Irrigation systems
Lingxiao CVF 5-7T Steel Vertical Multistage Pump Benefits
- High efficiency and performance
- Durable stainless steel construction
- Wide temperature range compatibility
- Versatile for various applications
Lingxiao CVF 5-7T Steel Vertical Multistage Pump Price List
| No. | Name | Price |
| 1 | Lingxiao CVF 5-7T Steel Vertical Multistage Pump Price | Contact us |
