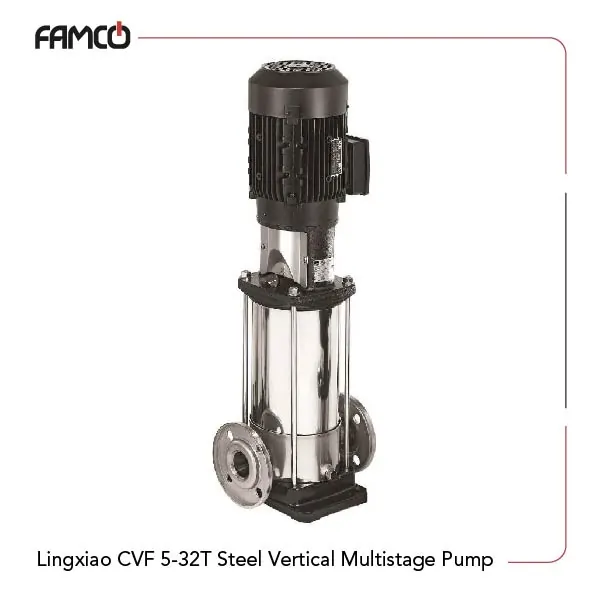

Lingxiao CVF 5-32T Steel Vertical Multistage Pump Specifications
This pump features a maximum flow rate of 8 and a maximum head of 205. This Lingxiao multistage pump operates optimally at a height of 176 meters. The power output is 5.5 kW or 7.5 HP to give this product a headstart in performance. The motor housing is made from a combination of cast iron and aluminum, ensuring durability. The pump housing, impeller, diffuser, and shaft are all crafted from stainless steel to increase the pump’s resistance to corrosion and wear. This pump can handle liquid temperatures ranging from -40 to +180° C, which is versatile for different environments. It operates on a three-phase mode with a frequency of 50 Hz and requires a voltage of 380 V.
| Maximum flow rate (m³/h) | 8 |
| Maximum delivery head (m) | 205 |
| Optimal Operating Height (m) | 176 |
| Power (kW) | 5.5 |
| Power (HP) | 7.5 |
| Motor housing | Cast iron/Aluminum |
| Pump housing | Stainless Steel |
| Impeller | Stainless Steel |
| Diffuser | Stainless Steel |
| Shaft | Stainless Steel |
| Liquid temperature range | -40 to +180° C |
| Mode | Three-Phase |
| Frequency (Hz) | 50 |
| Voltage (V) | 380 |
Lingxiao CVF 5-32T Steel Vertical Multistage Pump Applications
- Industrial water supply systems
- Irrigation and agricultural applications
- Cooling systems in manufacturing
- Wastewater treatment processes
Lingxiao CVF 5-32T Steel Vertical Multistage Pump Benefits
- High durability due to stainless steel construction
- Efficient performance with a powerful motor
- Versatile temperature range for various liquids
- Reliable operation in demanding environments
Lingxiao CVF 5-32T Steel Vertical Multistage Pump Price List
| No. | Name | Price |
| 1 | Lingxiao CVF 5-32T Steel Vertical Multistage Pump Price | Contact us |
