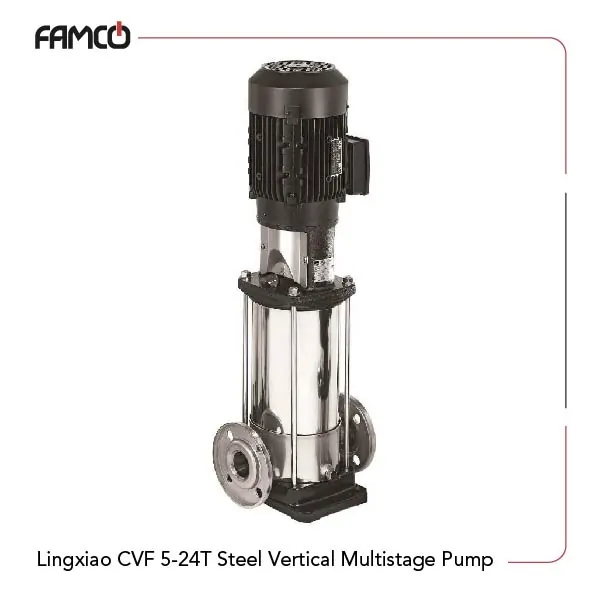

Lingxiao CVF 5-24T Steel Vertical Multistage Pump Specifications
This pump is designed for high efficiency and durability. This Lingxiao multistage pump has a maximum flow rate of 8 and can achieve a maximum head of 152 meters. The optimal operating height is 127 meters, which is suitable for various applications. The product’s power output of 4 kW or 5.5 HP helps it operate effectively in demanding conditions. The motor housing is made from a cast iron and aluminum combination for added strength and resilience. This pump has its housing, impeller, diffuser, and shaft crafted from stainless steel, giving it excellent corrosion resistance. This pump has the upper hand when it comes to tolerating different liquid temperatures by handling a range from -40 to +180° C. This product also operates on a three-phase mode with a frequency of 50 Hz and requires a voltage of 380 V.
| Specification | Value |
| Maximum flow rate (m³/h) | 8 |
| Maximum delivery head (m) | 152 |
| Optimal Operating Height (m) | 127 |
| Power (kW) | 4 |
| Power (HP) | 5.5 |
| Motor housing | Cast iron/Aluminum |
| Pump housing | Stainless Steel |
| Impeller | Stainless Steel |
| Diffuser | Stainless Steel |
| Shaft | Stainless Steel |
| Liquid temperature range | -40 to +180° C |
| Mode | Three-Phase |
| Frequency (Hz) | 50 |
| Voltage (V) | 380 |
Lingxiao CVF 5-24T Steel Vertical Multistage Pump Applications
- Industrial fluid transfer
- Agricultural irrigation systems
- Heating and cooling systems
- Water supply and drainage systems
Lingxiao CVF 5-24T Steel Vertical Multistage Pump Benefits
- High efficiency and performance
- Durable stainless steel construction
- Wide temperature range capability
- Suitable for various industrial applications
Lingxiao CVF 5-24T Steel Vertical Multistage Pump Price List
| No. | Name | Price |
| 1 | Lingxiao CVF 5-24T Steel vertical multistage pump Price | Contact us |
