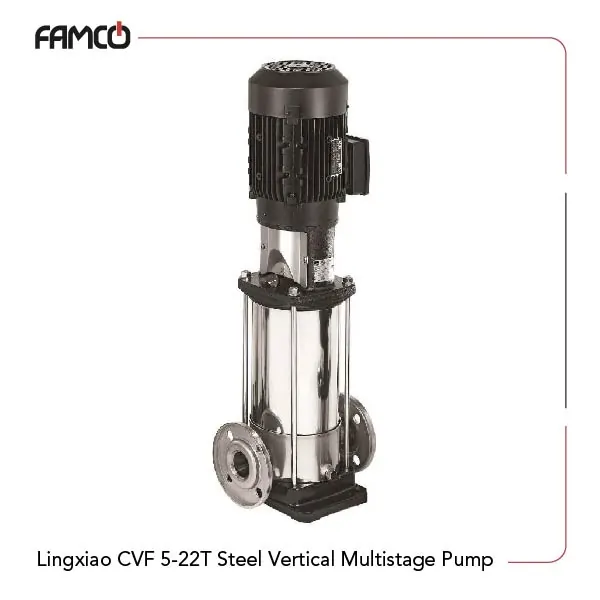

Lingxiao CVF 5-22T Steel Vertical Multistage Pump Specifications
This pump is designed for high performance with a maximum flow rate of 8 and a maximum head of 139. This Lingxiao multistage pump operates optimally at a height of 116 meters. The power output is 4 kW, equivalent to 5.5 HP, suitable for demanding applications. The motor housing is made from a cast iron and aluminum combination for added strength. The pump housing, impeller, diffuser, and shaft are all crafted from stainless steel to give the pump excellent resistance to corrosion and wear. It can handle liquid temperatures ranging from -40 to +180° C that renders it versatile for various environments. This pump operates on a three-phase system with a frequency of 50 Hz and requires a voltage of 380 V. All in all, this product complies with most established setups.
| Specification | Value |
| Maximum flow rate (m³/h) | 8 |
| Maximum delivery head (m) | 139 |
| Optimal Operating Height (m) | 116 |
| Power (kW) | 4 |
| Power (HP) | 5.5 |
| Motor housing | Cast iron/Aluminum |
| Pump housing | Stainless Steel |
| Impeller | Stainless Steel |
| Diffuser | Stainless Steel |
| Shaft | Stainless Steel |
| Liquid temperature range | -40 to +180° C |
| Mode | Three-Phase |
| Frequency (Hz) | 50 |
| Voltage (V) | 380 |
Lingxiao CVF 5-22T Steel Vertical Multistage Pump Applications
- Industrial water transfer
- Heating and cooling systems
- Chemical processing
- Agricultural irrigation
Lingxiao CVF 5-22T Steel Vertical Multistage Pump Benefits
- High durability due to stainless steel construction
- Efficient performance with high flow rates
- Versatile temperature range for diverse applications
- Reliable operation in demanding environments
Lingxiao CVF 5-22T Steel Vertical Multistage Pump Price List
| No. | Name | Price |
| 1 | Lingxiao CVF 5-22T Steel Vertical Multistage Pump Price | Contact us |
