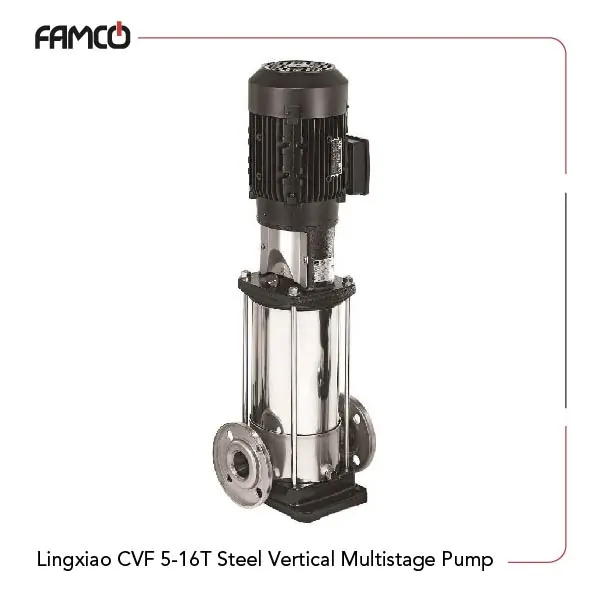

Lingxiao CVF 5-16T Steel Vertical Multistage Pump Specifications
This high-performance pump takes good care of pumping tasks and provides its users with peace of mind. It offers a maximum flow rate of 8 and a maximum head of 103 for various tasks. The optimal operating height in this product rests at 116 meters with efficiency in operation. The product’s power output of 2.2 kW (3 HP) enables this Lingxiao multistage pump to deliver advanced performance. Its construction features sturdy materials, such as a motor housing made of cast iron and aluminum, and the pump housing, impeller, diffuser, and shaft are all crafted from durable stainless steel. This selection of materials ensures longevity and resistance to corrosion. This pump operates effectively within a liquid temperature range of -40 to +180° C for different environments. It operates on a three-phase mode with a frequency of 50 Hz and requires a voltage of 380 V. A combination of these features has contributed to the emergence of an effective solution in this product.
| Specification | Value |
| Brand | Lingxiao |
| Model | CVF5-16T |
| Max. flow rate (m³/h) | 8 |
| Max. head (m) | 103 |
| Optimal Operating Height (m) | 116 |
| Power (kW) | 2.2 |
| Power (HP) | 3 |
| Motor housing | Cast iron/Aluminum |
| Pump housing | Stainless Steel |
| Impeller | Stainless Steel |
| Diffuser | Stainless Steel |
| Shaft | Stainless Steel |
| Liquid temperature range | -40 to +180° C |
| Number of phases | Three-Phase |
| Frequency | 50 Hz |
| Voltage | 380 (V) |
Lingxiao CVF 5-16T Steel Vertical Multistage Pump Applications
- Industrial liquid transfer
- Heating and cooling systems
- Water supply and drainage
- Agricultural irrigation
Lingxiao CVF 5-16T Steel Vertical Multistage Pump Benefits
- High efficiency with a maximum flow rate of 8
- Durable stainless steel construction for longevity
- Wide temperature range for versatile applications
- Reliable three-phase operation for stable performance
Lingxiao CVF 5-16T Steel Vertical Multistage Pump Price List
| No. | Name | Price |
| 1 | Lingxiao CVF 5-16T Steel Vertical Multistage Pump Price | Contact us |
