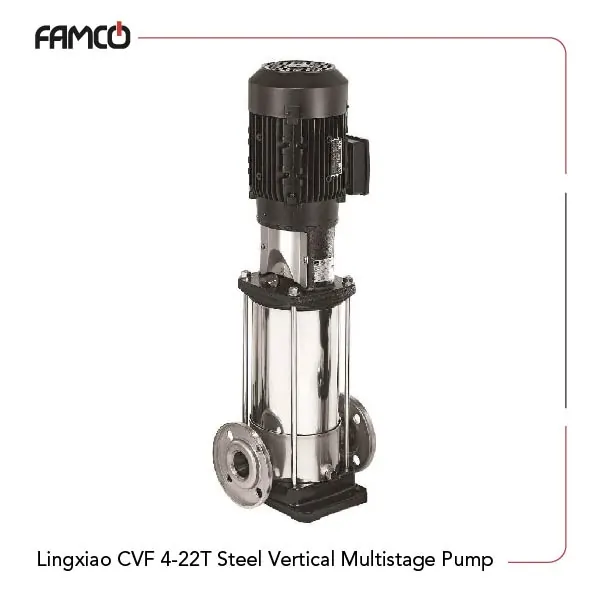

Lingxiao CVF 4-22T Steel Vertical Multistage Pump Specifications
This pump, with its advanced design, operates with a maximum flow rate of 6 and a maximum head of 216. This Lingxiao multistage pump operates optimally at a height of 182 meters. The power output is 4 kW, equivalent to 5.5 HP, which is a must at demanding applications. The motor housing in this product is made from a combination of cast iron and aluminum. The pump housing, impeller, diffuser, and shaft are all constructed from stainless steel. Using these materials in this product’s build provides excellent resistance to corrosion and wear. This pump could be integrated into different setups since it tolerates liquid temperatures ranging from -40 to +180° C. Last on the list of the pump’s features, it operates on a three-phase mode with a frequency of 50 Hz and requires a voltage of 380 V.
| Specification | Value |
| Brand | Lingxiao |
| Model | CVF3-22T |
| Max. flow rate (m³/h) | 6 |
| Max. head (m) | 216 |
| Optimal Operating Height (m) | 182 |
| Power (kW) | 4 |
| Power (HP) | 5.5 |
| Motor housing | Cast iron/Aluminum |
| Pump housing | Stainless Steel |
| Impeller | Stainless Steel |
| Diffuser | Stainless Steel |
| Shaft | Stainless Steel |
| Liquid temperature range | -40 to +180° C |
| Mode | Three-Phase |
| Frequency | 50 Hz |
| Voltage | 380 (V) |
Lingxiao CVF 4-22T Steel Vertical Multistage Pump Applications
- Industrial liquid transfer
- Agricultural irrigation systems
- Cooling systems in manufacturing
- Water supply in commercial buildings
Lingxiao CVF 4-22T Steel Vertical Multistage Pump Benefits
- High efficiency with a maximum flow rate of 6
- Durable construction with stainless steel components
- Wide liquid temperature range for versatility
- Reliable performance in demanding environments
Lingxiao CVF 4-22T Steel Vertical Multistage Pump Price List
| No. | Name | Price |
| 1 | Lingxiao CVF 4-22T Steel Vertical Multistage Pump Price | Contact us |
