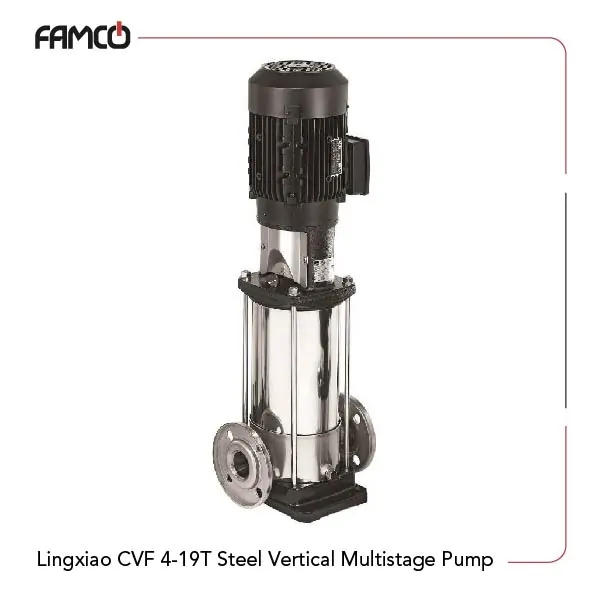

Lingxiao CVF 4-19T Steel Vertical Multistage Pump Specifications
Heavy load tasks and this pump are made for each other. This Lingxiao multistage pump has a maximum flow rate of 6 and a maximum head of 139. The optimal operating height, as information shows, is 155 meters. This pump has a power output of 4 kW or 5.5 HP to help it deliver great performance. The motor housing is made from a combination of cast iron and aluminum, giving it strength and longevity. The pump housing, impeller, diffuser, and shaft are more prone to corrosion and wear. Thus, they are all crafted from stainless steel to make it corrosion-resistant. This pump handles liquid temperatures ranging from -40 to +180° C for different environments. This durable pump operates on a three-phase mode with a frequency of 50 Hz and requires a voltage of 380 V.
| Specification | Value |
| Brand | Lingxiao |
| Model | CVF3-19T |
| Max. flow rate (m³/h) | 6 |
| Max. head (m) | 186 |
| Optimal Operating Height (m) | 155 |
| Power (kW) | 4 |
| Power (HP) | 5.5 |
| Motor housing | Cast iron/Aluminum |
| Pump housing | Stainless Steel |
| Impeller | Stainless Steel |
| Diffuser | Stainless Steel |
| Shaft | Stainless Steel |
| Liquid temperature range | -40 to +180° C |
| Mode | Three-Phase |
| Frequency | 50 Hz |
| Voltage | 380 (V) |
Lingxiao CVF 4-19T Steel Vertical Multistage Pump Applications
- Water transfer in industrial settings
- Irrigation systems for agriculture
- Cooling systems in manufacturing
- Fluid management in chemical processing
Lingxiao CVF 4-19T Steel Vertical Multistage Pump Benefits
- Durable stainless steel construction
- High efficiency with optimal performance
- Versatile temperature range for various applications
- Reliable operation in demanding environments
Lingxiao CVF 4-19T Steel Vertical Multistage Pump Price List
| No. | Name | Price |
| 1 | Lingxiao CVF 4-19T Steel Vertical Multistage Pump Price | Contact us |
