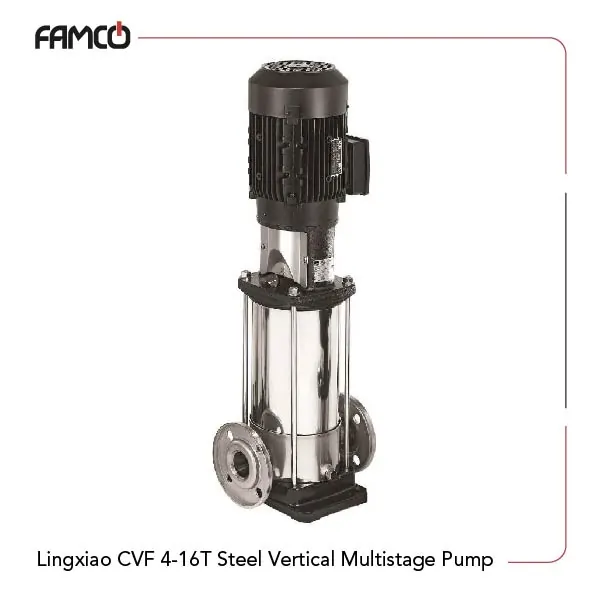

Lingxiao CVF 4-16T Steel Vertical Multistage Pump Specifications
This pump is designed for high efficiency and durability. This Lingxiao multistage pump has a maximum flow rate of 6 and can handle a maximum head of 158. The optimal operating height is 134 meters where the pump works best. It operates on a three-phase mode with a frequency of 50 Hz and requires a voltage of 380 V. The power output is 3 kW or 4 HP. The motor housing is made from a combination of cast iron and aluminum to make it as solid as possible. The pump housing, impeller, diffuser, and shaft are all crafted from stainless steel, giving it the benefit of resisting wear and corrosion in time. This pump can handle liquid temperatures ranging from -40 to +180° C. Thus, more users could conveniently implement this pump in their already established systems.
| Specification | Value |
| Brand | Lingxiao |
| Model | CVF3-16T |
| Max. flow rate (m³/h) | 6 |
| Max. head (m) | 158 |
| Optimal Operating Height (m) | 134 |
| Power (kW) | 3 |
| Power (HP) | 4 |
| Motor housing | Cast iron/Aluminum |
| Pump housing | Stainless Steel |
| Impeller | Stainless Steel |
| Diffuser | Stainless Steel |
| Shaft | Stainless Steel |
| Liquid temperature range | -40 to +180° C |
| Mode | Three-Phase |
| Frequency | 50 Hz |
| Voltage | 380 (V) |
Lingxiao CVF 4-16T Steel Vertical Multistage Pump Applications
- Water transfer in industrial processes
- Chemical processing and handling
- Heating and cooling systems
- Irrigation and agricultural use
Lingxiao CVF 4-16T Steel Vertical Multistage Pump Benefits
- High efficiency with a strong flow rate
- Durable stainless steel construction
- Wide temperature range for versatility
- Reliable performance in various applications
Lingxiao CVF 4-16T Steel Vertical Multistage Pump Price List
| No. | Name | Price |
| 1 | Lingxiao CVF 4-16T Steel Vertical Multistage Pump Price | Contact us |
