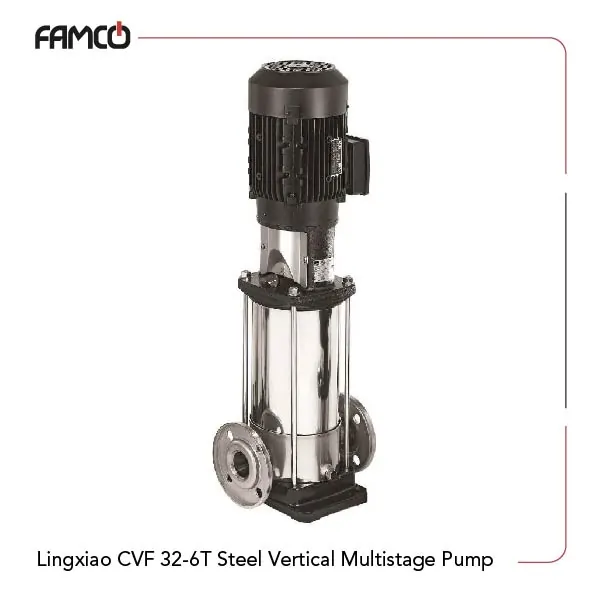

Lingxiao CVF 32-6T Steel Vertical Multistage Pump Specifications
This powerful pump is designed for high efficiency and durability. With a maximum flow rate of 40 and a maximum head of 109, it operates optimally at a height of 87 meters. This Lingxiao multistage pump features a robust motor housing made from cast iron and aluminum, ensuring longevity. Its components, including the pump housing, impeller, diffuser, and shaft, are all crafted from stainless steel, providing excellent resistance to corrosion and wear. It operates on a three-phase mode with a frequency of 50 Hz. It requires a voltage of 380 V. This pump can handle liquid temperatures ranging from -40 to +180°C, making it suitable for various demanding applications.
| Specification | Value |
| Max. flow rate (m³/h) | 40 |
| Max. head (m) | 109 |
| Optimal Operating Height (m) | 87 |
| Power (kW) | 11 |
| Power (HP) | 15 |
| Motor housing | Cast iron/Aluminum |
| Pump housing | Stainless Steel |
| Impeller | Stainless Steel |
| Diffuser | Stainless Steel |
| Shaft | Stainless Steel |
| Liquid temperature range | -40 to +180° C |
| Mode | Three-Phase |
| Frequency (Hz) | 50 |
| Voltage (V) | 380 |
Lingxiao CVF 32-6T Steel Vertical Multistage Pump Applications
- Industrial liquid transfer
- Heating and cooling systems
- Water supply and drainage
- Chemical processing
Lingxiao CVF 32-6T Steel Vertical Multistage Pump Benefits
- High efficiency and performance
- Durable stainless steel components
- Wide temperature range capability
- Robust construction for long-lasting use
Lingxiao CVF 32-6T Steel Vertical Multistage Pump Price List
| No. | Name | Price |
| 1 | Lingxiao CVF 32-6T Steel Vertical Multistage Pump Price | Contact us |
There are no reviews yet.
