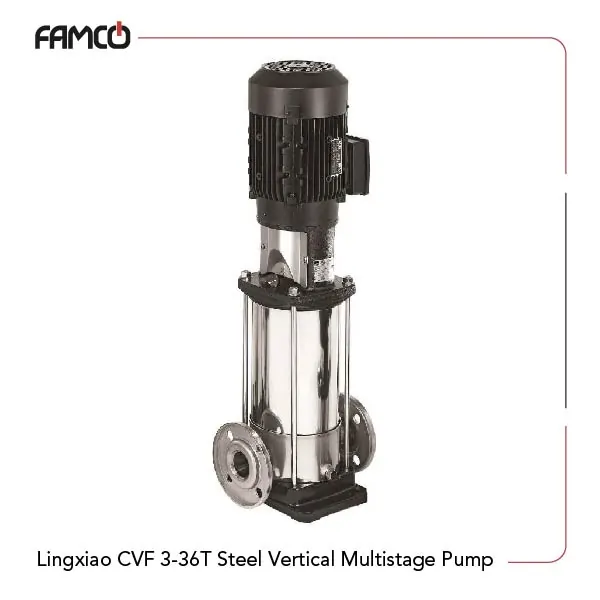

Lingxiao CVF 3-36T Steel Vertical Multistage Pump Specifications
This pump is produced with a maximum flow rate of 4 and a maximum head of 209. This Lingxiao multistage pump operates optimally at a height of 166 meters. The power output is 3 kW or 4 HP to enable efficient performance. The motor housing is made from a combination of sturdy materials, cast iron and aluminum to be specific, to provide durability. The pump housing, impeller, diffuser, and shaft are all crafted from stainless steel to make the pump corrosion and wear resistant. This pump handles significant liquid temperatures ranging from -40 to +180° C depending on the usage conditions. Setting up this pump is easy considering it operates on a three-phase mode with a frequency of 50 Hz and requires a voltage of 380 V.
| Specification | Value |
| Brand | Lingxiao |
| Model | CVF3-36T |
| Max. flow rate (m³/h) | 4 |
| Max. head (m) | 209 |
| Optimal Operating Height (m) | 166 |
| Power (kW) | 3 |
| Power (HP) | 4 |
| Motor housing | Cast iron/Aluminum |
| Pump housing | Stainless Steel |
| Impeller | Stainless Steel |
| Diffuser | Stainless Steel |
| Shaft | Stainless Steel |
| Liquid temperature range | -40 to +180° C |
| Mode | Three-Phase |
| Frequency | 50 Hz |
| Voltage | 380 (V) |
Lingxiao CVF 3-36T Steel Vertical Multistage Pump Applications
- Industrial liquid transfer
- Agricultural irrigation systems
- Water management in construction sites
- Cooling systems in manufacturing processes
Lingxiao CVF 3-36T Steel Vertical Multistage Pump Benefits
- Durable stainless steel construction
- High efficiency with a powerful motor
- Wide temperature range for versatility
- Optimal performance in demanding conditions
Lingxiao CVF 3-36T Steel Vertical Multistage Pump Price List
| No. | Name | Price |
| 1 | Lingxiao CVF 3-36T Steel Vertical Multistage Pump Price | Contact us |
