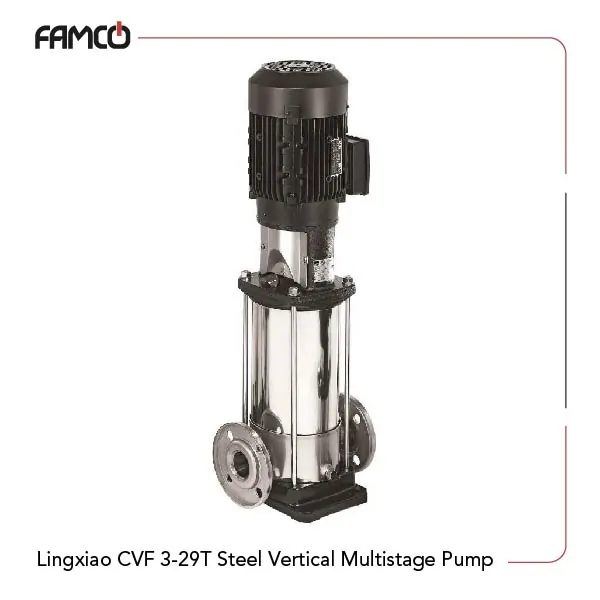

Lingxiao CVF 3-29T Steel Vertical Multistage Pump Specifications
This pump features a maximum flow rate of 4 m³/h and a maximum head of 169 meters. Thus Lingxiao multistage pump operates optimally at a height of 132 meters. The power output is 2.2 kW, equivalent to 3 HP, enabling it to function with efficiency. The motor housing of this product is made from a combination of cast iron and aluminum, giving it added strength. Additionally, the pump housing, impeller, diffuser, and shaft are all crafted from stainless steel to make it as resistant as possible to corrosion and wear. It can handle liquid temperatures ranging from -40 to +180° C, making it versatile for different environments. This pump operates on a three-phase mode with a frequency of 50 Hz and requires a voltage of 380 V.
| Specification | Value |
| Brand | Lingxiao |
| Model | CVF3-29T |
| Max. flow rate (m³/h) | 4 |
| Max. head (m) | 169 |
| Optimal Operating Height (m) | 132 |
| Power (kW) | 2.2 |
| Power (HP) | 3 |
| Motor housing | Cast iron/Aluminum |
| Pump housing | Stainless Steel |
| Impeller | Stainless Steel |
| Diffuser | Stainless Steel |
| Shaft | Stainless Steel |
| Liquid temperature range | -40 to +180° C |
| Number of phases | Three-Phase |
| Frequency | 50 Hz |
| Voltage | 380 (V) |
Lingxiao CVF 3-29T Steel Vertical Multistage Pump Applications
- Industrial liquid transfer
- Agricultural irrigation systems
- Cooling systems in manufacturing
- Water supply in commercial buildings
Lingxiao CVF 3-29T Steel Vertical Multistage Pump Benefits
- High efficiency with a maximum flow rate of 4 m³/h
- Durable construction with stainless steel components
- Wide liquid temperature range for versatility
- Reliable performance in demanding environments
Lingxiao CVF 3-29T Steel Vertical Multistage Pump Price List
| No. | Name | Price |
| 1 | Lingxiao CVF 3-29T Steel Vertical Multistage Pump Price | Contact us |
