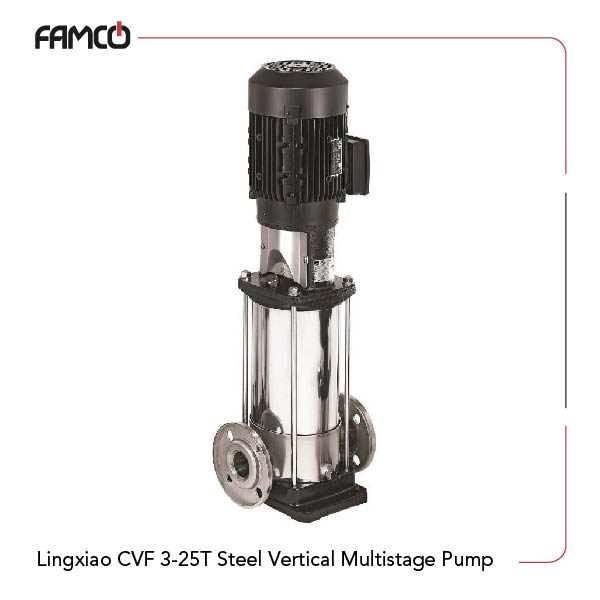

Lingxiao CVF 3-25T Steel Vertical Multistage Pump Specifications
This pump is designed for high performance with a maximum flow rate of 4 m³/h and a maximum head of 146 meters. This Lingxiao multistage pump operates optimally at a height of 113 meters depending on the applications. The power output is 2.2 kW, equivalent to 3 HP, ensuring efficient operation. The motor housing is constructed from a combination of cast iron and aluminum, providing durability and strength. The pump housing, impeller, diffuser, and shaft are all made from stainless steel, which enhances corrosion resistance and longevity. This pump can handle liquid temperatures ranging from -40 to +180° C since it is supposed to be versatile for different environments. It operates on a three-phase mode with a frequency of 50 Hz and requires a voltage of 380 V.
| Specification | Value |
| Brand | Lingxiao |
| Model | CVF3-25T |
| Max. flow rate (m³/h) | 4 |
| Max. head (m) | 146 |
| Optimal Operating Height (m) | 113 |
| Power (kW) | 2.2 |
| Power (HP) | 3 |
| Motor housing | Cast iron/Aluminum |
| Pump housing | Stainless Steel |
| Impeller | Stainless Steel |
| Diffuser | Stainless Steel |
| Shaft | Stainless Steel |
| Liquid temperature range | -40 to +180° C |
| Number of phases | Three-Phase |
| Frequency | 50 Hz |
| Voltage | 380 (V) |
Lingxiao CVF 3-25T Steel Vertical Multistage Pump Applications
- Industrial liquid transfer
- Water supply systems
- Cooling systems in manufacturing
- Chemical processing
Lingxiao CVF 3-25T Steel Vertical Multistage Pump Benefits
- High efficiency with a maximum flow rate of 4 m³/h
- Durable construction with stainless steel components
- Wide temperature range for versatile applications
- Reliable performance in demanding environments
Lingxiao CVF 3-25T Steel Vertical Multistage Pump Price List
| No. | Name | Price |
| 1 | Lingxiao CVF 3-25T Steel Vertical Multistage Pump Price | Contact us |
