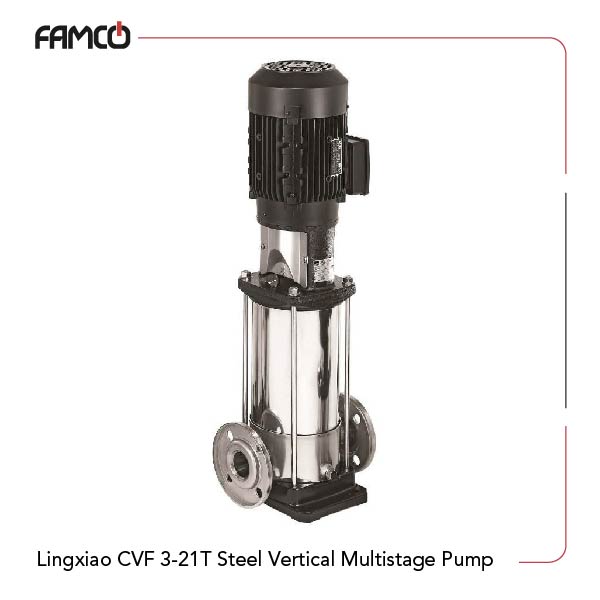

Lingxiao CVF 3-21T Steel Vertical Multistage Pump Specifications
This pump is designed for high performance with a maximum flow rate of 4 m³/h and a maximum head of 123 meters. This Lingxiao multistage pump operates optimally at a height of 97 meters. The power output is 2.2 kW, equivalent to 3 HP, helping reach efficient operation. The motor housing is made from a combination of cast iron and aluminum for added durability and strength. The pump housing, impeller, diffuser, and shaft are all constructed from stainless steel to resist corrosion and provide longevity as much as possible. This product can handle liquid temperatures ranging from -40 to +180° C. This pump operates on a three-phase mode with a frequency of 50 Hz and requires a voltage of 380 V.
| Specification | Value |
| Brand | Lingxiao |
| Model | CVF3-21T |
| Max. flow rate (m³/h) | 4 |
| Max. head (m) | 123 |
| Optimal Operating Height (m) | 97 |
| Power (kW) | 2.2 |
| Power (HP) | 3 |
| Motor housing | Cast iron/Aluminum |
| Pump housing | Stainless Steel |
| Impeller | Stainless Steel |
| Diffuser | Stainless Steel |
| Shaft | Stainless Steel |
| Liquid temperature range | -40 to +180° C |
| Mode | Three-Phase |
| Frequency | 50 Hz |
| Voltage | 380 (V) |
Lingxiao CVF 3-21T Steel Vertical Multistage Pump Applications
- Industrial water transfer
- Heating and cooling systems
- Agricultural irrigation
- Chemical processing
Lingxiao CVF 3-21T Steel Vertical Multistage Pump Benefits
- High efficiency with a maximum flow rate of 4 m³/h
- Durable construction with stainless steel components
- Wide temperature range for versatile applications
- Reliable performance in demanding environments
Lingxiao CVF 3-21T Steel Vertical Multistage Pump Price List
| No. | Name | Price |
| 1 | Lingxiao CVF 3-21T Steel Vertical Multistage Pump Price | Contact us |
