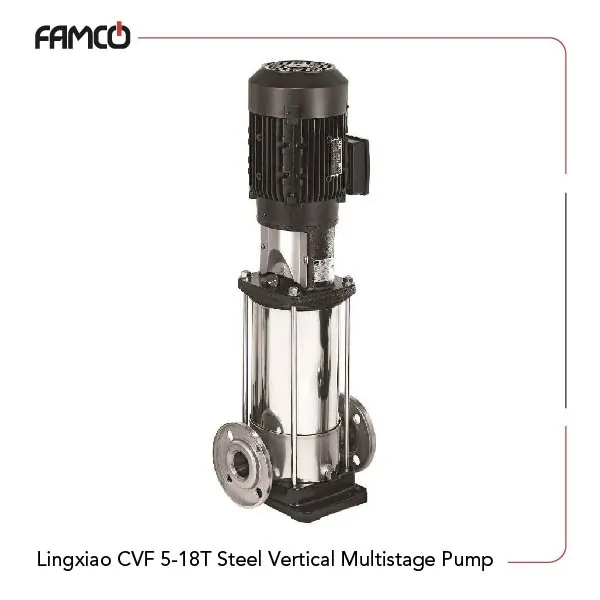

Lingxiao CVF 5-18T Steel Vertical Multistage Pump Specifications
This durable pump offers high-output. It has a maximum flow rate of 8 and can handle a maximum head of 115. The optimal operating height of this Lingxiao multistage pump is 96 meters where the product delivers the best results. This product has a power output of 3 kW (4 HP), operating on a three-phase mode at a frequency of 50 Hz and a voltage of 380 V. The motor housing of this product is made from a combination of cast iron and aluminum to give it strength and longevity. The pump housing, impeller, diffuser, and shaft are all crafted from stainless steel with excellent resistance to corrosion. This pump can handle liquid temperatures ranging from -40 to +180° C, a versatile range for different environments.
| Specification | Value |
| Brand | Lingxiao |
| Model | CVF5-18T |
| Max. flow rate (m³/h) | 8 |
| Max. head (m) | 115 |
| Optimal Operating Height (m) | 96 |
| Power (kW) | 3 |
| Power (HP) | 4 |
| Motor housing | Cast iron/Aluminum |
| Pump housing | Stainless Steel |
| Impeller | Stainless Steel |
| Diffuser | Stainless Steel |
| Shaft | Stainless Steel |
| Liquid temperature range | -40 to +180° C |
| Number of phases | Three-Phase |
| Frequency | 50 Hz |
| Voltage | 380 (V) |
Lingxiao CVF 5-18T Steel Vertical Multistage Pump Applications
- Industrial liquid transfer
- Agricultural irrigation systems
- Cooling systems in factories
- Water management in construction sites
Lingxiao CVF 5-18T Steel Vertical Multistage Pump Benefits
- High efficiency and performance
- Durable stainless steel construction
- Wide temperature range compatibility
- Versatile for various applications
Lingxiao CVF 5-18T Steel Vertical Multistage Pump Price List
| No. | Name | Price |
| 1 | Lingxiao CVF 5-18T Steel Vertical Multistage Pump Price | Contact us |
