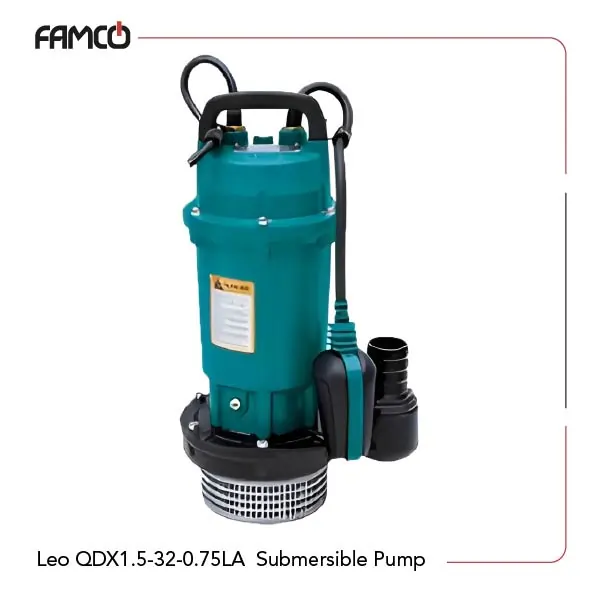

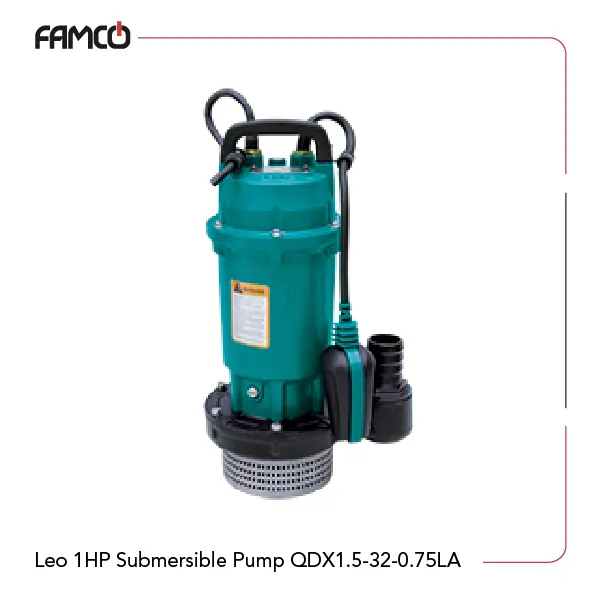

Leo 1HP Submersible Pump QDX1.5-32-0.75LA Specifications
This pump features a sturdy cast iron body, to enhance durability and strength. The motor casing is made from lightweight aluminum, which helps in reducing overall weight. Inside, the motor’s winding is crafted from copper, known for its excellent conductivity. The stainless steel shaft adds to the longevity of the pump.
A double-end mechanical seal prevents leaks, while the stainless steel filter in this Leo submersible pump ensures that only clean liquids pass through. The pump can be immersed up to 5 meters deep and handle liquids with a maximum temperature of 40℃. It operates effectively within a pH range of 6.5 to 8 and can manage sand content up to 0.1%. It can also pass suspended solids of up to 0.2 mm. The insulation class is rated F to provide good thermal protection. The pump can achieve a head range of 8.5 to 32.5 meters which is versatile for various applications. Its dimensions are set and measure 245 mm in length, 194 mm in width, and 385 mm in height, with a power rating of 0.75 kW.
| Specification | Value |
| Max. immersion depth | 5 m |
| Max. liquid temperature | +40℃ |
| Liquid PH level | from 6.5 – 8 |
| Maximum sand content | 0.1% |
| Passage of suspended solids | up to 0.2 mm |
| Insulation class | F |
| H (m) | 8.5-32.5 |
| Power (kW) | 0.75 |
| Power (HP) | 0.49 |
| Single-Phase Voltage (V) | 220 |
| Single-Phase Voltage (V) | 380 |
| Frequency (Hz) | 50 |
Leo 1HP Submersible Pump QDX1.5-32-0.75LA Materials
- Pump body: cast iron
- Motor casing: aluminum
- Winding: copper
- Shaft: stainless steel
- Mechanical seal: double-end
- Filter: stainless steel
Leo 1HP Submersible Pump QDX1.5-32-0.75LA Dimensions
| Dimensions (mm) | |
| L (mm) | 245 |
| W (mm) | 194 |
| H (mm) | 385 |

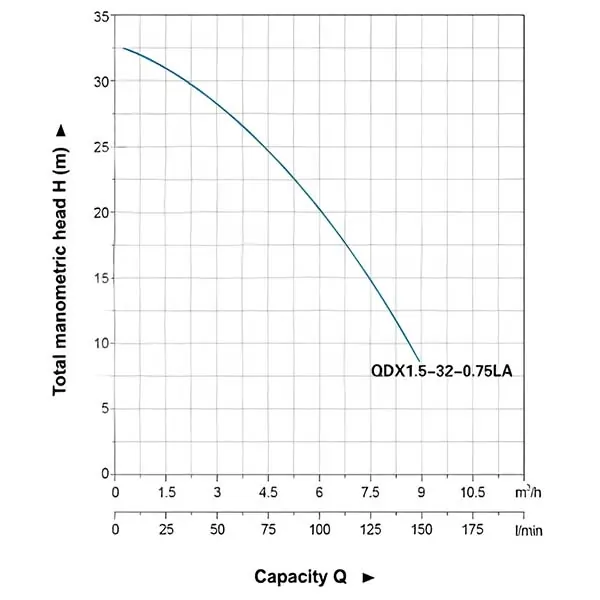

Leo 1HP Submersible Pump QDX1.5-32-0.75LA Performance Data
| Q (m3/h) | 0 | 1.5 | 3 | 4.5 | 6 | 7.5 | 9 |
| Q (l/min) | 0 | 25 | 50 | 75 | 100 | 125 | 150 |
| H (m) | 32.5 | 31.5 | 28.5 | 24.5 | 20 | 15.5 | 8.5 |
Leo 1HP Submersible Pump QDX1.5-32-0.75LA Applications
- Water drainage in residential areas
- Irrigation in agricultural fields
- Pumping clean water for industrial processes
- Handling slightly contaminated liquids in various settings
Leo 1HP Submersible Pump QDX1.5-32-0.75LA Benefits
- Durable cast iron body for long-lasting use
- Lightweight aluminum motor casing for easy handling
- Efficient operation with a power rating of 0.75 kW
- Versatile applications across different environments
Leo 1HP Submersible Pump QDX1.5-32-0.75LA Price List
| No. | Name | Price |
| 1 | Leo 1HP Submersible Pump QDX1.5-32-0.75LA Price | Contact us |
