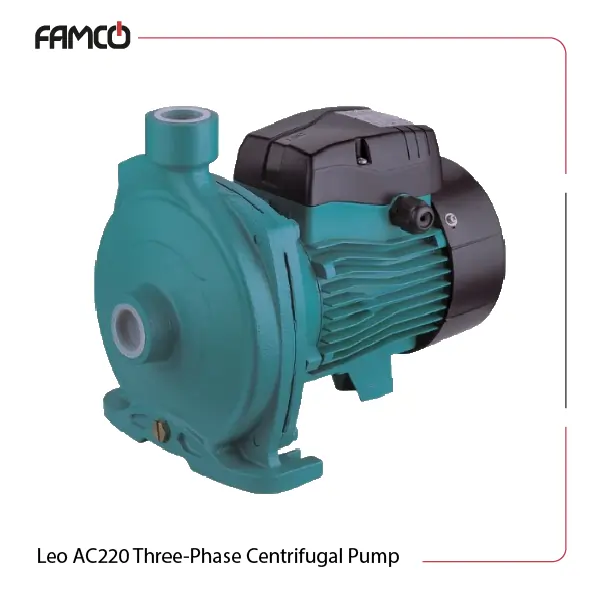

Overview of the Leo AC220 Three Phase Centrifugal Pump
The Leo AC220 three phase centrifugal pump is designed to transfer clean water or other liquids with similar physical and chemical properties. It’s an ideal choice for industrial use and urban water supply, ensuring efficient pressure boosting for high-rise buildings, fire fighting, and garden irrigation. Additionally, it is perfect for long-distance water transferring, heating, ventilation, air conditioning, circulation, and pressure boosting for both cold and hot water systems. This versatile pump supports a wide range of equipment and systems.
How does Leo AC220 Three Phase Centrifugal Pump Work?
Centrifugal pumps like the Leo AC220 work by converting rotational kinetic energy, typically from an electric motor, into energy in a moving fluid. The motor drives an impeller that rotates inside the pump body. As the impeller spins, it draws water into the pump through the suction port. The water is then expelled through the discharge port at high pressure, propelled by the centrifugal force generated by the rotating impeller. This mechanism allows the Leo AC220 to efficiently move large volumes of water over significant distances and at various pressure levels.
Exclusive Features and Benefits of the Leo AC220 Three Phase Centrifugal Pump
The Leo AC220 three phase centrifugal water pump boasts several exclusive features and benefits, making it a standout choice for various applications:
- High-Quality Construction: The pump body and support are crafted from cast iron, treated with a special anti-rust coating to ensure longevity and durability. The shaft is made of AISI 304 stainless steel, known for its corrosion resistance.
- Efficient Motor: The pump features a robust motor with copper winding and a built-in thermal protector for single-phase operation. The motor’s insulation class is F, and it has a protection class of IPX4, making it reliable and safe for prolonged use.
- Optimal Performance: With a maximum liquid temperature of +40℃ and a maximum suction capacity of +8m, the Leo AC220 is designed to handle demanding conditions effortlessly.
- Advanced Bearing System: Equipped with C&U bearings, the pump ensures smooth and efficient operation, reducing wear and tear and extending its service life.
- Versatility: Suitable for a wide range of applications, from industrial settings to residential and commercial buildings, the Leo AC220 is a versatile and reliable choice.
Leo AC220 Three Phase Centrifugal Pump Installation and Usage
Installing and using the Leo AC centrifugal pump is straightforward. Follow these steps for optimal performance:
- Site Preparation: Ensure the installation site is clean, dry, and well-ventilated. The pump should be mounted on a stable, level surface to minimize vibrations.
- Connection: Connect the pump to the water supply and ensure all connections are secure and leak-free. Check that the suction and discharge pipes are properly aligned.
- Electrical Setup: For the three-phase motor, ensure it is connected to a suitable power supply with the correct voltage and frequency. Verify that all electrical connections are safe and compliant with local regulations.
- Priming: Before starting the pump, prime it by filling the pump body and suction pipe with water to prevent dry running.
- Operation: Turn on the pump and monitor its operation. Check for any unusual noises or vibrations and ensure the pump is operating within its specified parameters.
Leo AC220 Three Phase Centrifugal Pump Components
The Leo AC220 comprises several key components, each made from high-quality materials to ensure durability and performance:
- Pump Body: Made of HT 200 cast iron with an anti-rust treatment.
- Impeller: Constructed from AISI 304 stainless steel or brass.
- O-ring: Made from NBR (Nitrile Butadiene Rubber) for a secure seal.
- Mechanical Seal: Composed of carbon/ceramic materials for reliable sealing.
- Support Cove: Made from AISI 304/HT 200 cast iron and ZL 102 alloy, respectively.
- Terminal Board and Box: Crafted from PC (Polycarbonate) and ABS (Acrylonitrile Butadiene Styrene) for durability.
- Rotor, Bearings, and Capacitor: Ensures smooth and efficient motor operation.
- Rear Cover, Fan, and Fan Cover: Made from ZL 102 alloy and PP (Polypropylene) for enhanced protection and cooling.
Important Tips for Buying Leo AC220 Three Phase Centrifugal Pump
When considering the purchase of a Leo AC220 three phase centrifugal pump, keep these tips in mind to ensure you make an informed decision:
- Quality Assurance: Purchase your Leo AC220 from a reputable supplier, such as Famococorp, to guarantee you receive a genuine product with reliable after-sales support.
- Evaluate Your Needs: Determine the specific requirements of your application, including flow rate, pressure, and the nature of the liquid to be pumped.
- Check Specifications: Review the technical specifications of the Leo AC220 to ensure it meets your operational needs. This includes power ratings, maximum liquid temperature, and suction capacity.
- Consider Installation Conditions: Ensure your installation site meets the environmental and operational conditions required for optimal pump performance.
You can buy Leo centrifugal pumps online from Famcocorp website.
Leo AC220 Three Phase Centrifugal Pump Price List
| No. | Name | Price |
| 1 | Leo AC220 Three Phase Centrifugal Pump Price | Contact us |
