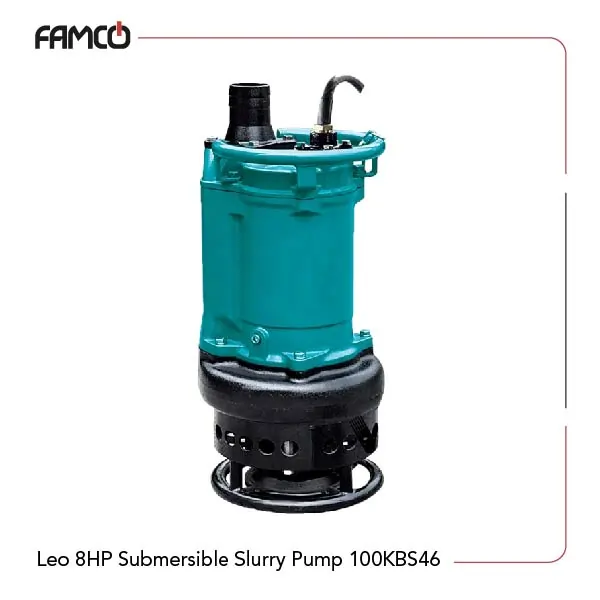

Leo 8HP Submersible Slurry Pump 100KBS46 Specifications
Leo 8HP submersible slurry pump 100KBS46 is designed with a powerful cast iron construction for durability. The hose coupling, upper cover, motor body, and pump body are all made from cast iron to guarantee longevity and resistance to possible causes of wear. The mechanical seal features Sic-Sic materials to provide excellent sealing performance. The impeller and inlet plate in this Leo submersible pump is crafted from high chrome alloy to increase corrosion resistance and efficiency. The pump’s maximum liquid temperature of +40℃. It operates on a copper winding motor with an insulation class of B and a protection class of IP68 which have made it safe for use in wet environments. The pump delivers a power output of 6 kW (8 HP) and can achieve a maximum head of 16.9 meters, with a flow rate of 150 m3/h (2.5 m3/min) and an impeller passage of 30 mm.
| Specification | Value |
| Max. liquid temperature | +40℃ |
| Max. Immersion depth | 25 m |
| Insulation class | B |
| Protection class | IP68 |
| Power (kW) | 6 |
| Power (HP) | 8 |
| Max head | 16.9 |
| Max flow rate (l/min) | 2500 |
| Max flow rate (m³ /h) | 150 |
| Impeller passage (mm) | 30 |
Leo 8HP Submersible Slurry Pump 100KBS46 Materials
- Hose Coupling: Cast Iron
- Upper Cover: Cast Iron
- Handle: Steel
- Motor Body: Cast Iron
- Pump Body: Cast Iron
- Mechanical Seal: Sic-Sic/Sic-Sic
- Impeller: High Chrome alloy
- Inlet Plate: High Chrome alloy
- Inlet Base: Cast Iron
- Agitator: High Chrome alloy
- Winding: Copper

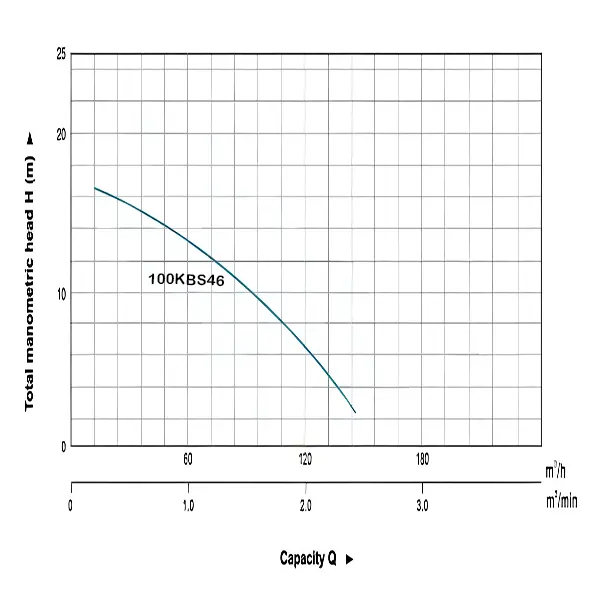

Leo 8HP Submersible Slurry Pump 100KBS46 Performance Curve
Leo 8HP Submersible Slurry Pump 100KBS46 Applications
- Industrial water transfer
- Agricultural irrigation systems
- Construction site dewatering
- Wastewater management
Leo 8HP Submersible Slurry Pump 100KBS46 Benefits
- Durable cast iron construction for long-lasting use
- High efficiency with a maximum flow rate of 150 m3/h
- Suitable for deep immersion up to 25 meters
- Reliable performance with high chrome alloy components
Leo 8HP Submersible Slurry Pump 100KBS46 Price List
| No. | Name | Price |
| 1 | Leo 8HP Submersible Slurry Pump 100KBS46 Price | Contact us |
