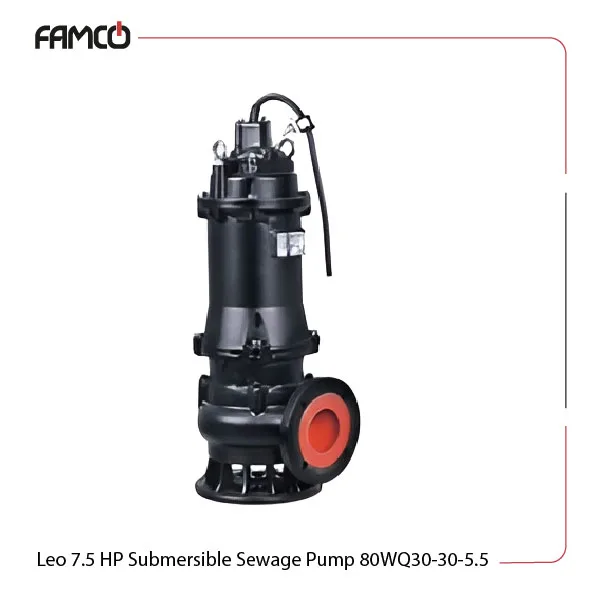

Leo 7.5 HP Submersible Sewage Pump 80WQ30-30-5.5 Specifications
This powerful pump is designed for deep immersion, with a maximum depth of 25 meters. This Leo submersible pump operates efficiently at a liquid temperature of up to +40℃ and supports a pH range of 5 to 9. Its impressive specifications are ideal for various industrial and agricultural uses. With a protection degree of IP68, this line of Leo sewage pumps is suitable for harsh environments. The pump delivers a power output of 5.5 kW (7.5 HP) and can achieve a maximum head of 37 meters. It boasts an impressive flow rate of 47 m3/h and operates at a speed of 3000 rpm. The three-phase voltage requirement is 380V, and it is equipped with a reliable Sic-Sic/Carbon-Ceramic mechanical seal for enhanced performance.
| Specification | Value |
| Max. immersion depth (m) | 25 |
| Liquid temperature (℃) | +40 |
| Frequency | 50Hz |
| Liquid PH value | 5-9 |
| Insulation class | B |
| Protection degree | IP68 |
| Power (kW) | 5.5 |
| Power (HP) | 7.5 |
| Max. head (m) | 37 |
| Max. flow rate (m3/h) | 47 |
| Speed (rpm) | 3000 |
| Three-phase voltage (V) | 380 |
Leo 7.5 HP Submersible Sewage Pump 80WQ30-30-5.5 Materials
- Winding: copper
- Mechanical seal: Sic-Sic/Carbon-Ceramic
Leo 7.5 HP Submersible Sewage Pump 80WQ30-30-5.5 Applications
- Irrigation systems for agriculture
- Industrial water transfer
- Drainage in construction sites
- Wastewater management
Leo 7.5 HP Submersible Sewage Pump 80WQ30-30-5.5 Benefits
- High efficiency with a maximum flow rate of 47 m3/h
- Durable design with IP68 protection for harsh environments
- Versatile use across various applications
- Reliable performance with a robust mechanical seal
Leo 7.5 HP Submersible Sewage Pump 80WQ30-30-5.5 Price List
| No. | Name | Price |
| 1 | Leo 7.5 HP Submersible Sewage Pump 80WQ30-30-5.5 Price | Contact us |
