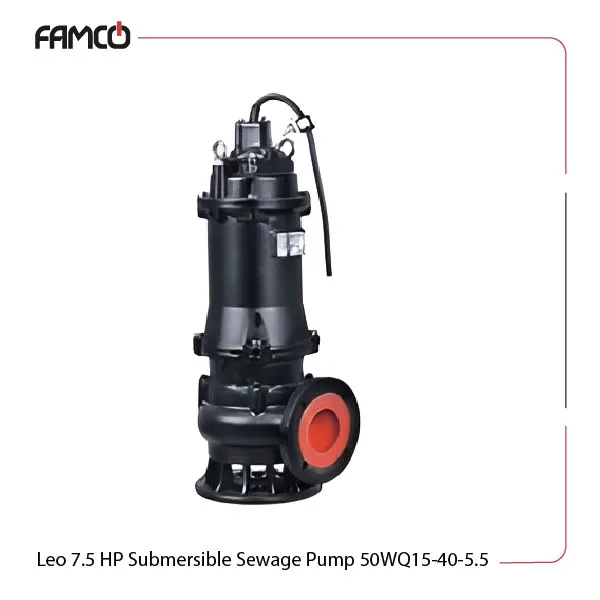

Leo 7.5 HP Submersible Sewage Pump 50WQ15-40-5.5 Specifications
This powerful pump is designed for deep immersion, with a maximum depth of 25 meters. This Leo sewage pump operates efficiently at a liquid temperature of up to 40 degrees Celsius and supports a pH range of 5 to 9. This line of Leo pumps features a copper winding and is classified under insulation class B. A protection degree of IP68 allows this submersible pump to be well-suited for harsh environments. The pump delivers a power output of 5.5 kW (7.5 HP) and can achieve a maximum head of 43 meters. It boasts a maximum flow rate of 50 m3/h and operates at a speed of 3000 rpm, powered by a three-phase voltage of 380V. The mechanical seal is made of Sic-Sic/Carbon-Ceramic, providing excellent sealing performance and longevity.
| Specification | Value |
| Max. immersion depth (m) | 25 |
| Liquid temperature (℃) | +40 |
| Frequency | 50Hz |
| Liquid PH value | 5-9 |
| Insulation class | B |
| Protection degree | IP68 |
| Power (kW) | 5.5 |
| Power (HP) | 7.5 |
| Max. head (m) | 43 |
| Max. flow rate (m3/h) | 50 |
| Speed (rpm) | 3000 |
| Three-phase voltage (V) | 380 |
Leo 7.5 HP Submersible Sewage Pump 50WQ15-40-5.5 Materials
- Winding: copper
- Mechanical seal: Sic-Sic/Carbon-Ceramic
Leo 7.5 HP Submersible Sewage Pump 50WQ15-40-5.5 Applications
- Industrial liquid transfer
- Agricultural irrigation systems
- Wastewater management
- Cooling systems in machinery
Leo 7.5 HP Submersible Sewage Pump 50WQ15-40-5.5 Benefits
- High efficiency with a maximum flow rate of 50 m3/h
- Durable construction with IP68 protection
- Suitable for a wide range of liquid temperatures
- Reliable performance with a powerful 5.5 kW motor
Leo 7.5 HP Submersible Sewage Pump 50WQ15-40-5.5 Price List
| No. | Name | Price |
| 1 | Leo 7.5 HP Submersible Sewage Pump 50WQ15-40-5.5 Price | Contact us |
