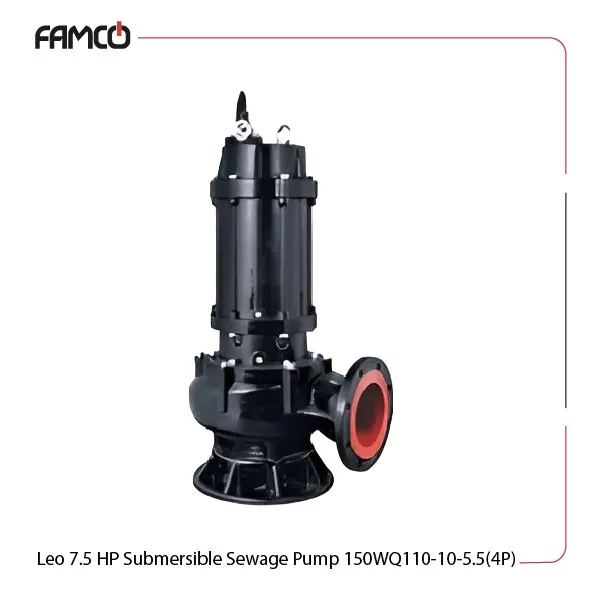

Leo 7.5 HP Submersible Sewage Pump 150WQ110-10-5.5(4P) Specifications
This product is designed for efficient liquid handling with a maximum immersion depth of 25 meters. This collection of Leo sewage pumps operates effectively at a liquid temperature of up to +40 degrees Celsius and supports a pH range of 5 to 9. The motor runs at a frequency of 50 Hz and delivers a power output of 5.5 kW (7.5 HP) in a three-phase mode. This Leo pump has a maximum head of 16 meters and a flow rate of 200 m3/h, helping it deliver consistent high performance. The winding is made of copper, which provides the much-needed durability that submersible pumps demand. The insulation class is B for a safe operation. Additionally, it has a protection degree of IP68, making it suitable for submerged applications. The mechanical seal consists of Sic-Sic/Carbon-Ceramic.
| Specification | Value |
| Max. immersion depth (m) | 25 |
| Liquid temperature (℃) | +40 |
| Frequency | 50Hz |
| Liquid PH value | 5-9 |
| Insulation class | B |
| Protection degree | IP68 |
| Power (kW) | 5.5 |
| Power (HP) | 7.5 |
| Max. head (m) | 16 |
| Max. flow rate (m3/h) | 200 |
| Speed (rpm) | 1500 |
| Three-phase voltage (V) | 380 |
Leo 7.5 HP Submersible Sewage Pump 150WQ110-10-5.5(4P) Materials
- Winding: copper
- Mechanical seal: Sic-Sic/Carbon-Ceramic
Leo 7.5 HP Submersible Sewage Pump 150WQ110-10-5.5(4P) Applications
- Industrial liquid transfer
- Agricultural irrigation systems
- Water management and drainage
- Cooling systems in manufacturing
Leo 7.5 HP Submersible Sewage Pump 150WQ110-10-5.5(4P) Benefits
- High efficiency with a maximum flow rate of 200 m3/h
- Durable copper winding for long-lasting performance
- IP68 protection for reliable submerged operation
- Versatile applications across various industries
Leo 7.5 HP Submersible Sewage Pump 150WQ110-10-5.5(4P) Price List
| No. | Name | Price |
| 1 | Leo 7.5 HP Submersible Sewage Pump 150WQ110-10-5.5(4P) Price | Contact us |
