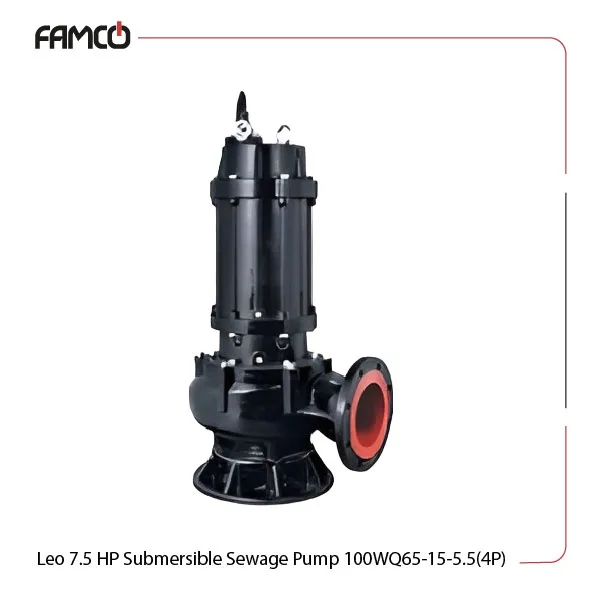

Leo 7.5 HP Submersible Sewage Pump 100WQ65-15-5.5(4P) Specifications
This powerful pump features a maximum immersion depth of 25 meters. This Leo submersible pump operates efficiently at a liquid temperature of up to +40°C and supports a pH range of 5 to 9. The copper winding ensures durability and reliability, while the insulation class B provides adequate protection against overheating. With a protection degree of IP68, this sewage pump is designed to withstand harsh conditions. It delivers a power output of 5.5 kW (7.5 HP) and can achieve a maximum head of 21 meters. The impressive flow rate of 145 m³/h at a speed of 1500 rpm makes it ideal for various industrial uses. The three-phase voltage requirement is 380V, and it features a powerful mechanical seal made of Sic-Sic/Carbon-Ceramic for enhanced longevity.
| Specification | Value |
| Max. immersion depth (m) | 25 |
| Liquid temperature (℃) | +40 |
| Frequency | 50Hz |
| Liquid PH value | 5-9 |
| Insulation class | B |
| Protection degree | IP68 |
| Power (kW) | 5.5 |
| Power (HP) | 7.5 |
| Max. head (m) | 21 |
| Max. flow rate (m3/h) | 145 |
| Speed (rpm) | 1500 |
| Three-phase voltage (V) | 380 |
Leo 7.5 HP Submersible Sewage Pump 100WQ65-15-5.5(4P) Materials
- Winding: copper
- Mechanical seal: Sic-Sic/Carbon-Ceramic
Leo 7.5 HP Submersible Sewage Pump 100WQ65-15-5.5(4P) Applications
- Deep well pumping
- Irrigation systems
- Industrial fluid transfer
- Water supply for construction sites
Leo 7.5 HP Submersible Sewage Pump 100WQ65-15-5.5(4P) Benefits
- High efficiency with a flow rate of 145 m³/h
- Durable copper winding for long-lasting performance
- IP68 protection for reliable operation in harsh conditions
- Versatile use in various applications with a wide pH range
Leo 7.5 HP Submersible Sewage Pump 100WQ65-15-5.5(4P) Price List
| No. | Name | Price |
| 1 | Leo 7.5 HP Submersible Sewage Pump 100WQ65-15-5.5(4P) Price | Contact us |
