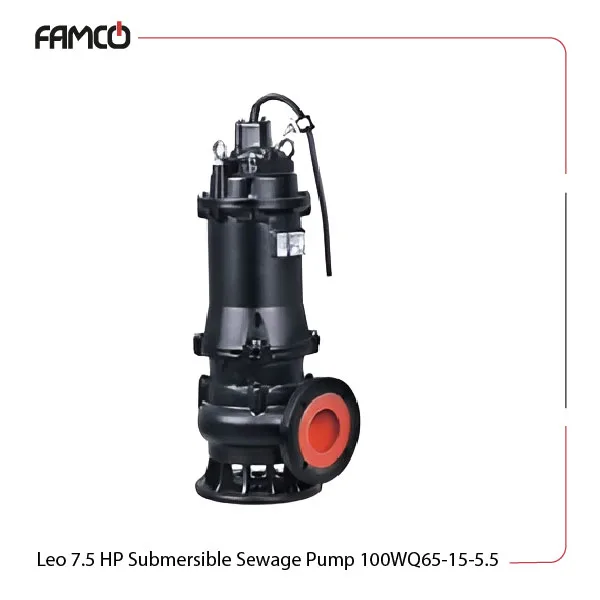

Leo 7.5 HP Submersible Sewage Pump 100WQ65-15-5.5 Specifications
This powerful pump has a maximum immersion depth of 25 meters. This Leo pump operates efficiently at a liquid temperature of up to 40 degrees Celsius and is designed to handle liquids with a pH value ranging from 5 to 9. This line of sewage pumps features a solid copper winding and is classified under insulation class B. With a protection degree of IP68, this Leo submersible pump is well-suited for submerged operations. This pump delivers a power output of 5.5 kW (7.5 HP) and can achieve a maximum head of 25 meters, with an impressive flow rate of 108 m3/h. Operating at a speed of 3000 rpm, it requires a three-phase voltage of 380 V. The mechanical seal is made of Sic-Sic/Carbon-Ceramic.
| Specification | Value |
| Max. immersion depth (m) | 25 |
| Liquid temperature (℃) | +40 |
| Frequency | 50Hz |
| Liquid PH value | 5-9 |
| Insulation class | B |
| Protection degree | IP68 |
| Power (kW) | 5.5 |
| Power (HP) | 7.5 |
| Max. head (m) | 25 |
| Max. flow rate (m3/h) | 108 |
| Speed (rpm) | 3000 |
| Three-phase voltage (V) | 380 |
Leo 7.5 HP Submersible Sewage Pump 100WQ65-15-5.5 Materials
- Mechanical seal: Sic-Sic/Carbon-Ceramic
- Winding: copper
Leo 7.5 HP Submersible Sewage Pump 100WQ65-15-5.5 Applications
- Industrial water supply systems
- Agricultural irrigation
- Wastewater treatment facilities
- Construction site dewatering
Leo 7.5 HP Submersible Sewage Pump 100WQ65-15-5.5 Benefits
- High efficiency with a maximum flow rate of 108 m3/h
- Durable construction with copper winding and IP68 protection
- Reliable performance in deep immersion applications
- Advanced mechanical seal for leak prevention
Leo 7.5 HP Submersible Sewage Pump 100WQ65-15-5.5 Price List
| No. | Name | Price |
| 1 | Leo 7.5 HP Submersible Sewage Pump 100WQ65-15-5.5 Price | Contact us |
