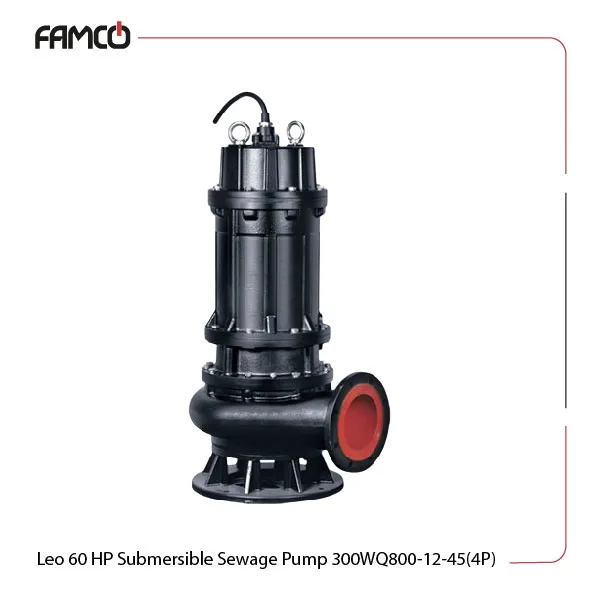

Leo 60 HP Submersible Sewage Pump 300WQ800-12-45(4P) Specifications
This powerful pump is designed for heavy-duty applications and features a maximum immersion depth of 25 meters. Tolerating a liquid temperature of up to +40°C, you could incorporate this pump in various tasks. This Leo submersible pump operates at a frequency of 50Hz and is suitable for liquids with a pH value ranging from 5 to 9. The winding is made of durable copper. With an insulation class of B and a protection degree of IP68, this sewage pump is built to withstand harsh conditions. It delivers a powerful power output of 45 kW (60 HP) and can achieve a maximum head of 25 meters, making it ideal for various pumping tasks. The impressive maximum flow rate of 1300 m3/h at a speed of 1500 rpm ensures quick and efficient operation. It operates on a three-phase voltage of 380V and features a reliable Sic-Sic/Sic-Sic mechanical seal for enhanced durability.
| Specification | Value |
| Max. immersion depth (m) | 25 |
| Liquid temperature (℃) | +40 |
| Frequency | 50Hz |
| Liquid PH value | 5-9 |
| Insulation class | B |
| Protection degree | IP68 |
| Power (kW) | 45 |
| Power (HP) | 60 |
| Max. head (m) | 25 |
| Max. flow rate (m3/h) | 1300 |
| Speed (rpm) | 1500 |
| Three-phase voltage (V) | 380 |
Leo 60 HP Submersible Sewage Pump 300WQ800-12-45(4P) Materials
- Winding: copper
- Mechanical seal: Sic-Sic/Sic-Sic

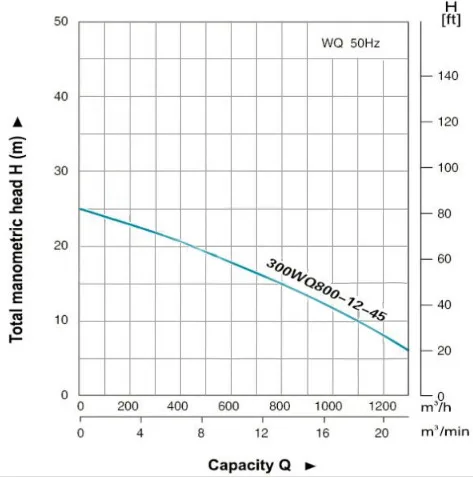

Leo 60 HP Submersible Sewage Pump 300WQ800-12-45(4P) Performance Curve
Leo 60 HP Submersible Sewage Pump 300WQ800-12-45(4P) Applications
- Irrigation systems for agriculture
- Wastewater management in industrial settings
- Water supply for construction sites
- Cooling systems in power plants
Leo 60 HP Submersible Sewage Pump 300WQ800-12-45(4P) Benefits
- High efficiency with a maximum flow rate of 1300 m3/h
- Durable construction with copper winding and IP68 protection
- Versatile use in various applications due to wide pH tolerance
- Reliable performance with a robust mechanical seal
Leo 60 HP Submersible Sewage Pump 300WQ800-12-45(4P) Price List
| No. | Name | Price |
| 1 | Leo 60 HP Submersible Sewage Pump 300WQ800-12-45(4P) Price | Contact us |
